Overview
Description
This solution is a high-function version of the R0K578L1CD000BR RL78/L1C HMI Solution Kit.
Example
(1) System Demo close to the actual product is available.
- Combination of HMI such as Touch switch, sensor input, LCD display, voice sound record and playback, etc.
- Sensor application waking up MCU by a sensor input trigger.
⇒ Reducing the period for planning and specification developing
(2) Utilize this product as a reference for user's development.
Reducing the number of external components and peripheral IC and the dimension size of the PCB by integrated functions of "RX231" and "SAIC101".
- RX231: Touch sensor IC and sound playback IC, USB I/F IC can be reduced.
- SAIC101: The discreet components such as an operation amplifier and a resister can be reduced.
⇒ Reducing the development time and resource, a system cost
(3) Reducing software development period by utilizing sample software as the reference.
⇒ Reducing 20% of Software development period.
(4) The development of power saving and M2M application is ready.
Smart Analog IC automatic calibration by MCU is available.
⇒ Realizing sensor controlling system with high reliability.
- Sample software
This software has developed by Firmware Integration Technology (FIT) module which Renesas developed and inherited FIT features. It is easy to develop user application program when user uses this software as the base program.
Features

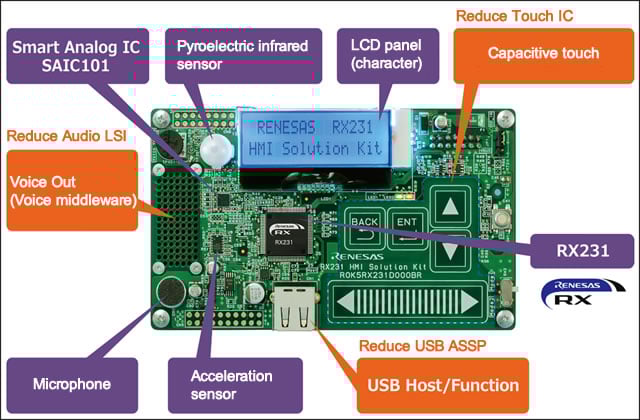

- HMI Evaluation board
- High power efficiency 32-bit MCU "RX231" built-in Capacitive Touch detection and USB Host I/F.
- Smart Analog IC "SAIC101" for controlling 16-bit A/D Converters and the amplifier gain.
- Capacitive Touch switch function
- Voice memo function (with Speaker and Microphone)
- LCD Panel (Character)
- Pyroelectric infrared sensor, Acceleration sensor
- USB Connector (Host/Function)
- Battery box (Excluding AAA battery)
- Release note (Users manual and Schematic diagram, Part list are ready to download from following URL)
- Note: Demo software is programmed in Flash ROM for USB, LCD, Capacitive Touch, Voice Memo, Sensor control, Pedometer etc.
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Application Note | PDF 2.56 MB 日本語 | |
| Application Note | PDF 8.01 MB 日本語 , 简体中文 | |
| Application Note | PDF 1.08 MB 日本語 | |
| Other | ZIP 64 KB | |
| Application Note | PDF 944 KB 日本語 | |
5 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QE: Tools for Particular Applications A group of utilities which extends integrated development environment (Tools for Particular Applications: USB, TCP/IP, Bluetooth® low energy, Camera, LCD, Capacitive Touch Sensors, and Current Consumption Tuning etc.)
|
Solution Toolkit | Renesas |
| QE for USB: A Dedicated Tool for USB [Technical Preview Edition] Debugging assistance tool for developing systems which use the USB [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | Renesas |
2 items
|
||
Sample Code
Processing table
R0K5RX231D000BR Obsolete |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Specifications
| Item | Specifications | |
|---|---|---|
| Dimensions | 120×70×27 mm (battery box: 70×48×20 mm) | |
| Power supply | (a) Battery box (three AA batteries) | |
| (b) AC adapter (sold separately) | ||
| (c) USB micro-B (USB bus-powered) | ||
| Input voltage | 3.5V-5.5V | |
| Environmental conditions | Operating: 10 to 35°C, Storage: - 10 to 50°C | |
| Microcontroller | RX231：R5F52318ADFP (ROM/RAM:512KB/64KB, PKG：100LQFP) | |
| Smart Analog IC | SAIC101：RAA7301013CBG | |
| Flash memory | MX25L6433FM2I-08G(64Mbit) | |
| Oscillation device | Oscillator：16MHz, 32.768kHz, | |
| Oscillation (module)：11.2896MHz | ||
| Sensors |
|
|
|
||
| Display |
|
|
|
||
| Key input |
|
|
|
||
|
||
| Voice record/playback (S/W encoding/decoding) |
Playback |
|
|
||
|
||
| Recording |
|
|
|
||
| Music playback |
|
|
|
||
| Standard interface |
|
|
|
||
| Evaluation interface |
|
|
|
||
| Debugging interface | E1 connector | |
