Overview

With flash memory capacities from small to large and package pin counts from low to high, the RX630 Group can satisfy the demands of a variety of embedded devices. All the products of the RX630 Group are equipped with E2 data flash capable of 100, 000 rewrites and enhanced peripheral functions with increased numbers of channels including timers, USB 2.0 function module, serial communication interface, I2C bus interface, CAN, 10-bit and 12-bit A/D converter, and 10-bit D/A converter. In particular, built-in features such as RTC with timestamp, temperature sensor, independent WDT, and POR/LVD enable the number of external parts to be reduced. We are also planning on releasing small packages such as LGA and BGA.

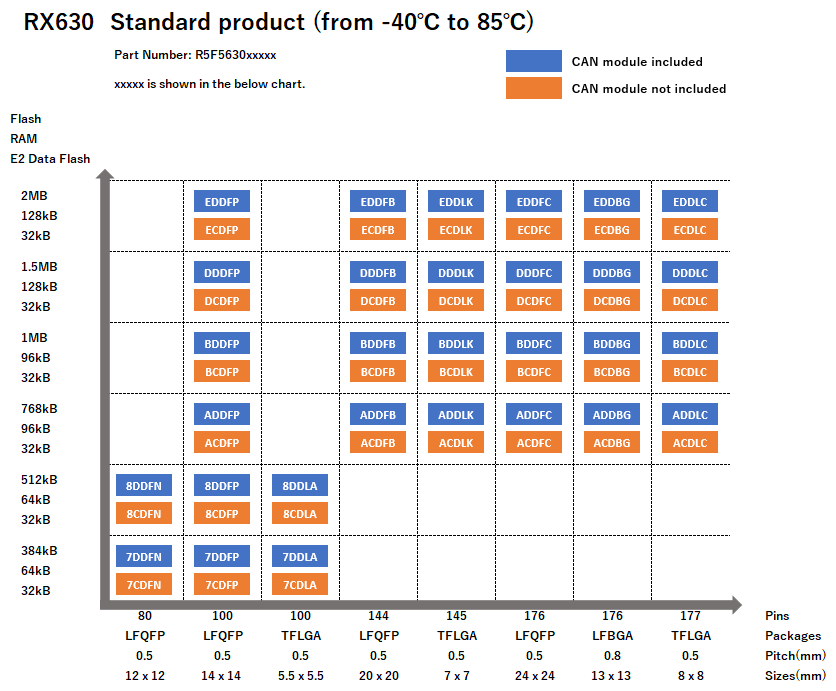

Pin-Memory Diagram of RX630 standard products

Pin-Memory Diagram of RX630 High-temperature products

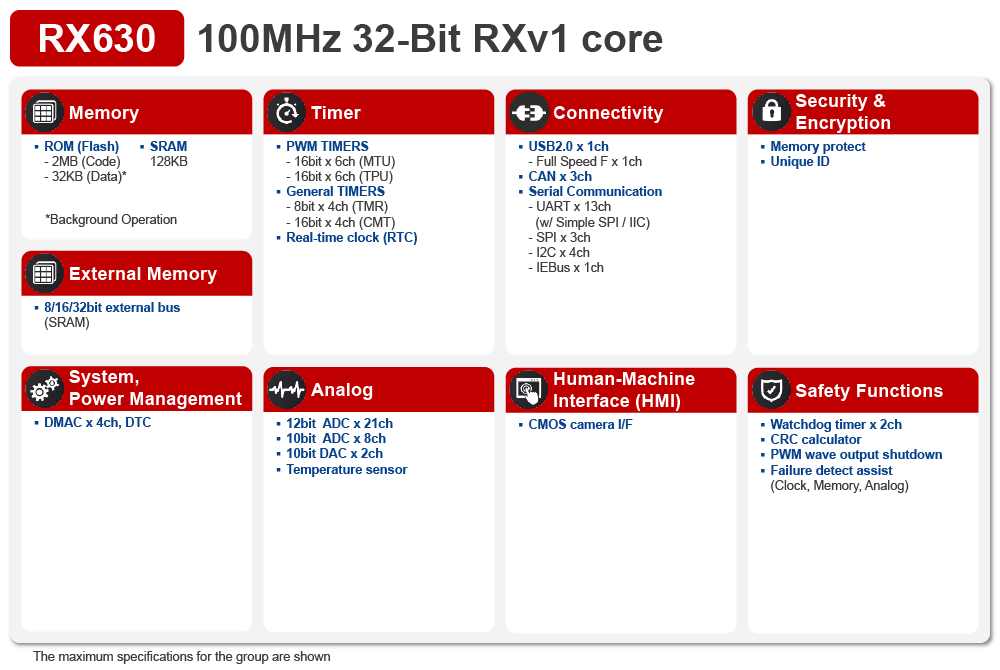

CPU: RX core, Max. 100MHz
Voltage: 2.7V to 3.6V
Package: 176-pin LFBGA, 80 to 176-pin LFQFP, 100 to 177-pin TFLGA
Memory: SRAM Max. 128KB, Program Flash Max. 2MB
PWM: PWM Output x 48, 3-phase PWM Output Function
Analog function: 10-bit A/D Converter (ch) x 8, 12-bit A/D Converter (ch) x 21, 10-bit D/A Converter (ch) x 2
On-chip Oscillator Freq. (MHz): 50 MHz,Low Speed Oscillator 125 kHz
Others: PLL, RTC, Power-On Reset, Low Voltage Detection

Industrial
Office Automation
Consumer

Documentation

Design & Development

Software & Tools

Software title	Software type	Company

DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU Downloads RX Family RX DSP Library Version 5.0 Rev.1.00 - Sample Code RX Family RX DSP Library Version 5.0 Rev.1.00	DSP / FFT	Renesas
FAT File System FAT file system, Original file system	File System	Renesas
FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family Downloads RX Family SPI mode MultiMediaCard Driver: Introduction Guide Rev.1.02 - Sample Code RX Family Open Source FAT File System M3S-TFAT-Tiny Module Using Firmware Integration Technology Rev.4.13 RX Family M3S-TFAT-Tiny Memory Driver Interface Module Using Firmware Integration Technology Rev.2.60 RX Family M3S-TFAT-Tiny Memory Driver Interface Module Using Firmware Integration Technology Rev.2.60 - Sample Code RX Family Open Source FAT File System M3S-TFAT-Tiny Module Using Firmware Integration Technology Rev.4.13 - Sample Code	File System	Renesas
JPEG Encode and Decode Library JPEG Library	Imaging	Renesas
RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.	ITRON OS	Renesas
RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.	ITRON OS	Renesas
Data Flash Driver Block type Device Drivers for data flash embedded microcontrollers	On-chip Flash Memory	Renesas
TCP/IP protocol stack [M3S-T4-Tiny] for RX Family Ultracompact TCP/IP protocol stack (high-speed version) for RX	Protocol Stack	Renesas
Renesas Peripheral Driver Library Unified API library for controlling peripheral I/O modules on Renesas MCUs. For OS-less development. Target devices : RX220, RX610, RX62G, RX62N, RX621, RX62T, RX630, RX63T etc. (This software is bundled with the Renesas Starter Kits and Peripheral Driver Generator for the above devices.)	Software Package	Renesas
Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family	Sound / Voice	Renesas
Peripheral Driver Generator A tool for automatically generating drivers for the built-in peripheral I/Os of a microcomputer (for RX210, RX220, RX63x, and RX62x) Downloads Peripheral Driver Generator V.2.09 (for the RX Family)	Code Generator	Renesas
C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop] Downloads RX Family C/C++ Compiler Package (CC-RX) Programming Techniques Rev.1.00 [Evaluation Software] RX Compiler CC-RX V.1.02 Release 01 with HEW RX Compiler Application Notes: 2-Compiler Use Guide: #pragma Extension Guide Rev.1.00	Compiler/Assembler	Renesas
High-performance Embedded Workshop Renesas integrated development environment (IDE) (for SuperH, RX, R8C, M32R, M16C, H8SX, H8S, H8, and 740 families). Downloads High-performance Embedded Workshop Application Note: Real-time OS aware debugging Rev.1.00 Install Manager Utility V.1.03.01 Upgrade AutoUpdate Utility V.1.05.00 Upgrade High-performance Embedded Workshop Tcl/Tk Application Note Rev.1.00	IDE and Coding Tool	Renesas
Debugging MCU Boards The debugging MCU board is a board to enable the in-circuit connection of an emulator with the user's system and allows you to use more enhanced debugging functions. The applicable debugging functions vary depending on the MCU type.	Other Emulators and Options	Renesas
Flash Development Toolkit (Programming GUI) Flash memory programming software. [Support MCU/MPU and devices: SuperH RISC engine, RX, R8C, M16C, H8SX, H8S, H8, 740] Downloads [Evaluation Software] Flash Development Toolkit V.4.09 Release 03	Programmer (Unit/SW)	Renesas
Simulator Debugger for RX Family [for High-performance Embedded Workshop] Simulator debugger for RX family [Support IDE : High-performance Embedded Workshop] (Note: This product is included in Compiler Package and is not available separately.) Downloads [Evaluation Software] RX Compiler CC-RX V.1.02 Release 01 with HEW	Simulator	Renesas
Crypto Library Robust encode library to ensure security for all types of system developments	Security / Crypto	Renesas
USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP Downloads RX Family Internal Flash ROM rewrite program via USB CDC Rev.1.06 - Sample Code RX Family Internal Flash ROM rewrite program via USB CDC Rev.1.06	USB	Renesas
E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU] Downloads [Flyer] E2Emulator[RTE0T00020KCE00000R]	Emulator	Renesas
E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C] Downloads E1, E20 Self-Checking Program V.1.01.00	Emulator	Renesas
E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]	Emulator	Renesas
PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]	Programmer (Unit/SW)	Renesas
Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]	Programmer (Unit/SW)	Renesas
CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] (Note: CS+ is not generally promoted to U.S. and European customers.) (Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)	IDE and Coding Tool	Renesas
e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	Renesas
Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.	IDE and Coding Tool	Renesas
Reality AI Utilities Plug-in module for Renesas e² studio	Solution Toolkit	Renesas
+ Add 10 hidden items 27 items

Software Downloads


Type	Title	Date
Software & Tools - Evaluation Software	[Evaluation Software] Flash Development Toolkit V.4.09 Release 03 Log in to Download ZIP 37.73 MB 日本語	Jan 20, 2016
Software & Tools - Other	Peripheral Driver Generator V.2.09 (for the RX Family) Log in to Download ZIP 162.85 MB 日本語	Sep 22, 2014
Software & Tools - Other	E1, E20 Self-Checking Program V.1.01.00 Log in to Download ZIP 1.21 MB 日本語	Oct 19, 2012
Software & Tools - Other	Renesas Starter Kit for RX630 Installer V.1.00 (High-performance Embedded Workshop Version) Log in to Download ZIP 315.61 MB	Jul 13, 2012
Software & Tools - Other	Renesas Starter Kit for RX630 Installer V.1.00 (e² studio Version) Log in to Download ZIP 486.08 MB	Jul 13, 2012
Software & Tools - Evaluation Software	[Evaluation Software] RX Compiler CC-RX V.1.02 Release 01 with HEW Log in to Download ZIP 122.90 MB 日本語	Mar 21, 2012
Software & Tools - Other	Install Manager Utility V.1.03.01 Upgrade Log in to Download EXE 1.30 MB 日本語	Oct 5, 2009
Software & Tools - Other	AutoUpdate Utility V.1.05.00 Upgrade Log in to Download EXE 7.57 MB 日本語	Feb 23, 2009
8 items

RX630-Starter-Kit

Starter

Learn More

Renesas Starter Kit for RX630

The purpose of the board is to enable the user to evaluate the capabilities of the device and its peripherals by giving the user a simple platform on which code can be...

Featured Documents:

Renesas Starter Kit for RX630 Quick Start Guide Rev.1.00

TPS-1 Low-cost Solution Kit Development Board

YCONNECT-IT-TPS-1L

Evaluation

Learn More

TPS-1 Low-cost Solution Kit

The TPS-1 Low-cost Solution Kit allows a simple and efficient PROFINET IRT device design using the market-proven TPS-1 PROFINET IRT device chip that combines easy...

Featured Documents:

TPS-1 Low-cost Solution Kit - Hardware Manual Rev.1.03

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

Processing table

	PLP	Bit Size	CPU	Program Memory (KB)	Data Flash (KB)	RAM (KB)	Lead Count (#)	Pkg. Type	Supply Voltage (V)	Operating Freq (Max) (MHz)	I/O Ports	Ethernet	USB	UART (#)	SPI (#)	I2C (#)	CAN (ch)	DMA	Timer	ADC	24-Bit Sigma-Delta A/D Converter (ch)	DAC	Human Machine Interface	RTC	Watchdog Timer (ch)	LVD or PVD	Pkg. Dimensions (mm)	Carrier Type	Moisture Sensitivity Level (MSL)	Price (USD) \| 1ku	Buy / Sample
(88) Active (6) Obsolete / NRND / LTB	Maximum The duration date of a product in the Product Longevity Program (PLP). Minimum The duration date of a product in the Product Longevity Program (PLP).	Maximum Number of bits supported by the device. Minimum Number of bits supported by the device.	RXv1	Maximum Minimum	Maximum Data Flash memory size. Minimum Data Flash memory size.	Maximum Random access memory size. Minimum Random access memory size.	Maximum Minimum	LFBGA LFQFP TFLGA	Maximum Power supply voltage or voltage range of the device. Minimum Power supply voltage or voltage range of the device.	Maximum Operating frequency range. Minimum Operating frequency range.	Maximum Number of input/output ports. Minimum Number of input/output ports.	No	USB Endpoints x 10 USB Isochronous Transfer Support USB Peripheral USB Ports (ch) x 1	Maximum Number of universal asynchronous receiver/transmitter (UART) channels. Minimum Number of universal asynchronous receiver/transmitter (UART) channels.	Maximum Number of serial peripheral interface (SPI) channels. Minimum Number of serial peripheral interface (SPI) channels.	Maximum Number of I2C channels. Minimum Number of I2C channels.	Maximum Number of controller area netowork (CAN) interface channels. Minimum Number of controller area netowork (CAN) interface channels.	Yes	8-bit x 4-ch 16-bit x 16-ch 16-bit x 22-ch	10-bit x 4-ch 10-bit x 8-ch 12-bit x 11-ch 12-bit x 14-ch 12-bit x 21-ch	Maximum Minimum	10-bit x 1-ch 10-bit x 2-ch		Yes	Maximum Minimum	Yes	6 x 6 x 1.05 7 x 7 x 1.05 8 x 8 x 1.05 12 x 12 x 1.7 13 x 13 x 1.4 14 x 14 x 1.7 20 x 20 x 1.7 24 x 24 x 1.7	Tray Tray (Full Carton)	3	Maximum Price estimate for 1,000 units; pricing is subject to change. Minimum Price estimate for 1,000 units; pricing is subject to change.	Buy / Quote
Part Number	Logical Operator		Logical Operator					Logical Operator				Logical Operator	Logical Operator					Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator
R5F5630DDDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	1536	32	128	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	14.07	Buy / Quote
R5F5630DCDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	1536	32	128	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	13.81	Buy / Quote
R5F5630DDDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1536	32	128	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F5630ADDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	768	32	96	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F5630DCDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1536	32	128	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F56307DDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	384	32	64	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	1	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F56307CDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	384	32	64	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630ACDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	768	32	96	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F5630DDDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1536	32	128	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	2	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630DCDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1536	32	128	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630BDDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1024	32	96	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	2	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630BCDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1024	32	96	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630ADDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	768	32	96	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	2	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630ECDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	2048	32	128	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630EDDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	2048	32	128	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3		Buy / Quote
R5F5630EDDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	2048	32	128	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3	14.81	Buy / Quote
R5F5630ECDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	2048	32	128	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	14.22	Buy / Quote
R5F5630ACDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	768	32	96	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630BCDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1024	32	96	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F5630BDDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1024	32	96	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F56308DDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Buy Now	N/A	32	RXv1	512	32	64	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	1	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F56308CDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	512	32	64	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3		Buy / Quote
R5F5630ECDFB#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	2048	32	128	144	LFQFP	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	20 x 20 x 1.7	Tray	3		Buy / Quote
R5F5630EDDFP#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	2048	32	128	100	LFQFP	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	2	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	14 x 14 x 1.7	Tray	3	15.44	Buy / Quote
R5F5630EDDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	2048	32	128	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	13.92	Buy / Quote
R5F5630ECDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	2048	32	128	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	13.67	Buy / Quote
R5F5630DCDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1536	32	128	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	13.28	Buy / Quote
R5F5630DDDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1536	32	128	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3		Buy / Quote
R5F5630BCDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1024	32	96	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	11.59	Buy / Quote
R5F5630EDDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	2048	32	128	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3	13.18	Buy / Quote
R5F5630ECDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	2048	32	128	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3		Buy / Quote
R5F5630DCDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1536	32	128	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3		Buy / Quote
R5F5630DDDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1536	32	128	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3	12.79	Buy / Quote
R5F5630ACDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	768	32	96	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	11.14	Buy / Quote
R5F5630DCDBG#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	32	RXv1	1536	32	128	176	LFBGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	13 x 13 x 1.4	Tray	3	13.92	Buy / Quote
R5F5630ADDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	768	32	96	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	11.41	Buy / Quote
R5F5630BDDLC#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1024	32	96	177	TFLGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	8 x 8 x 1.05	Tray	3	11.85	Buy / Quote
R5F5630DDDBG#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1536	32	128	176	LFBGA	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	3	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	13 x 13 x 1.4	Tray	3	14.16	Buy / Quote
R5F56307CDLA#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	384	32	64	100	TFLGA	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	6 x 6 x 1.05	Tray	3	8.069	Buy / Quote
R5F56308DDLA#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	512	32	64	100	TFLGA	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	1	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	6 x 6 x 1.05	Tray	3	8.703	Buy / Quote
R5F56308CDLA#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	512	32	64	100	TFLGA	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	0	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	6 x 6 x 1.05	Tray	3	8.607	Buy / Quote
R5F5630BCDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1024	32	96	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3	10.8	Buy / Quote
R5F5630BDDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	1024	32	96	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3	11.06	Buy / Quote
R5F5630ACDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	768	32	96	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3	10.35	Buy / Quote
R5F5630ADDLK#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	768	32	96	145	TFLGA	2.7 - 3.6	100	118	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	7 x 7 x 1.05	Tray	3	10.62	Buy / Quote
R5F56307DDLA#U0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	32	RXv1	384	32	64	100	TFLGA	2.7 - 3.6	100	79	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	9	11	11	1	Yes	8-bit x 4-ch, 16-bit x 16-ch	10-bit x 8-ch, 12-bit x 14-ch	0	10-bit x 1-ch		Yes	2	Yes	6 x 6 x 1.05	Tray	3	8.152	Buy / Quote
R5F5630BCDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	1024	32	96	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	12.01	Buy / Quote
R5F5630BDDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	1024	32	96	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	12.33	Buy / Quote
R5F5630ACDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	768	32	96	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	0	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	12.01	Buy / Quote
R5F5630ADDFC#V0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2032 Dec	32	RXv1	768	32	96	176	LFQFP	2.7 - 3.6	100	149	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	16	17	2	Yes	8-bit x 4-ch, 16-bit x 22-ch	10-bit x 8-ch, 12-bit x 21-ch	0	10-bit x 2-ch		Yes	2	Yes	24 x 24 x 1.7	Tray	3	11.73	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Resonator Information

Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.
For main clock resonators :　
KYOCERA: Click here for RX630 oscillation evaluation result.
Murata Manufacturing: For IC Manufacturer, select Renesas Electronics, and enter R5F5630 into the IC Part Number search box.
For subclock resonators :
KYOCERA: Click here for RX630 oscillation evaluation result.

For information on resonators, please also refer to the following application note.
Design Guide for Main Clock Circuits and Sub-Clock Circuits Rev.1.01 (PDF | English, 日本語)
