Overview
Description

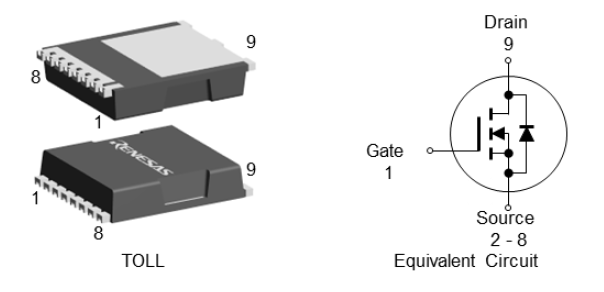

Renesas TOLL technology features ultra-compact, leadless designs that enhance thermal performance, management, and reliability. The Wettable Flank solution supports reliability and ease of assembly. Renesas' new split gate technology is suitable for applications requiring low RDS(on) and switching capability for high-power and high-frequency applications.
Features
- Standard level gate drive voltage: VGS(th) = 2.0V to 4.0V
- Super low on-state resistance: RDS(on) = 1.5mΩ max
- Low input capacitance
- Low thermal resistance
- AEC-Q101 qualified
- PPAP capable
- Pb-free lead plating: RoHS compliant
- MSL1 classified according to IPC/JEDEC J-STD-020
Comparison
Applications
- Automotive: small traction (2-wheel, 3-wheel vehicle), 48V load, OBC, charging station, LDC, etc.
- Industrial/Infrastructure: energy infrastructure, micro inverter, power-tool, DC-DC, etc.
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 371 KB | |
| Guide | PDF 2.76 MB | |
| Guide | PDF 796 KB | |
| Application Note | PDF 722 KB | |
| Application Note | PDF 5.44 MB | |
| Application Note | PDF 3.23 MB 日本語 | |
| Application Note | PDF 648 KB 日本語 | |
7 items
|
||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| TOLL | 1 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
100V MOSFETs in TOLL/TOLG for High Current Switching Applications
Renesas 100V MOSFETs with Split Gate Technology deliver industry-leading on-resistance performance while helping to reduce overall system costs.
To learn more, visit the pages for RBA300N10EANS-3UA02 and RBA300N10EHPF-5UA02.
