Overview
Description

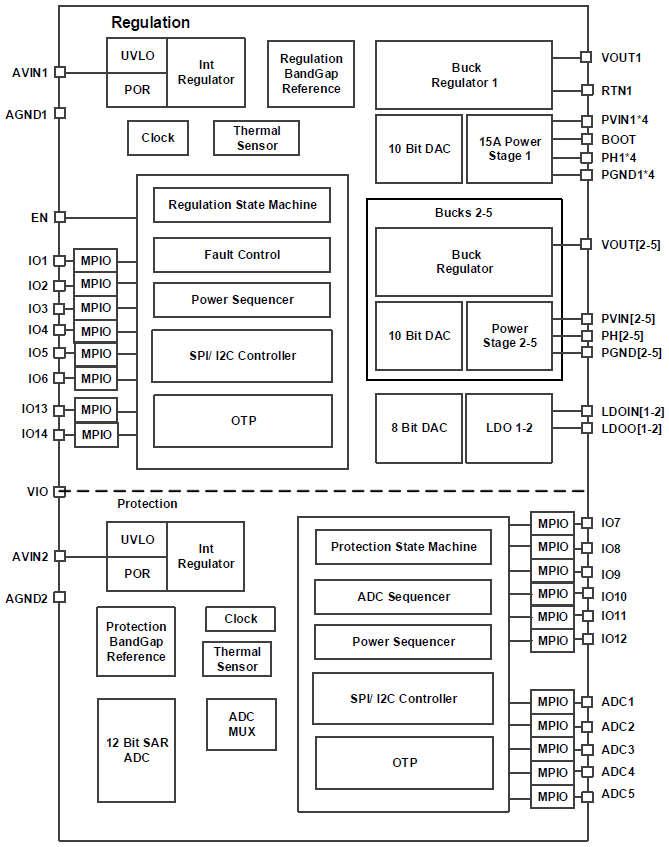

RAA271000 is a general-purpose power management integrated circuit (PMIC) suitable for the Renesas R-Car system-on-chip (SoC) series. RAA271000 contains five DC/DC buck regulators and two low-dropout linear regulators (LDO). Supporting up to ASIL C functional safety, the RAA271000 includes an independent reference for monitoring functions, dual internal temperature monitors, challenge-response watchdog timer, SoC error pin monitors, a reset generator, a dedicated safety-control state machine, and a safety shutdown path. An integrated 12-bit ADC monitors all input rails, output rails, and internal temperature, and includes additional inputs to monitor external analog sources.
Features
- Input range: 2.7V to 5.5V
- Five switching regulators with adjustable output
- VOUT from 0.3V ~ 3.3V at:
- 15A (Buck 1)
- 2A (Buck 2-3)
- 4A (Buck 4-5)
- Programmable current limits for all bucks
- Two linear regulators
- Output 0.6V to 3.6V at 300mA (LDO1-2)
- 12-bit analog-to-digital converter for monitoring
- Configurable through I2C or SPI interface
- Programmable power sequence
- Supports R-Car SoC sequence of activation
- Challenge-response watchdog timer
- Dual thermal protection system
- 60-ball BGA package, 0.8mm pitch
- ASILC Functional Safety (ISO 26262)
- AEC-Q100 qualified (Grade 1)
Comparison

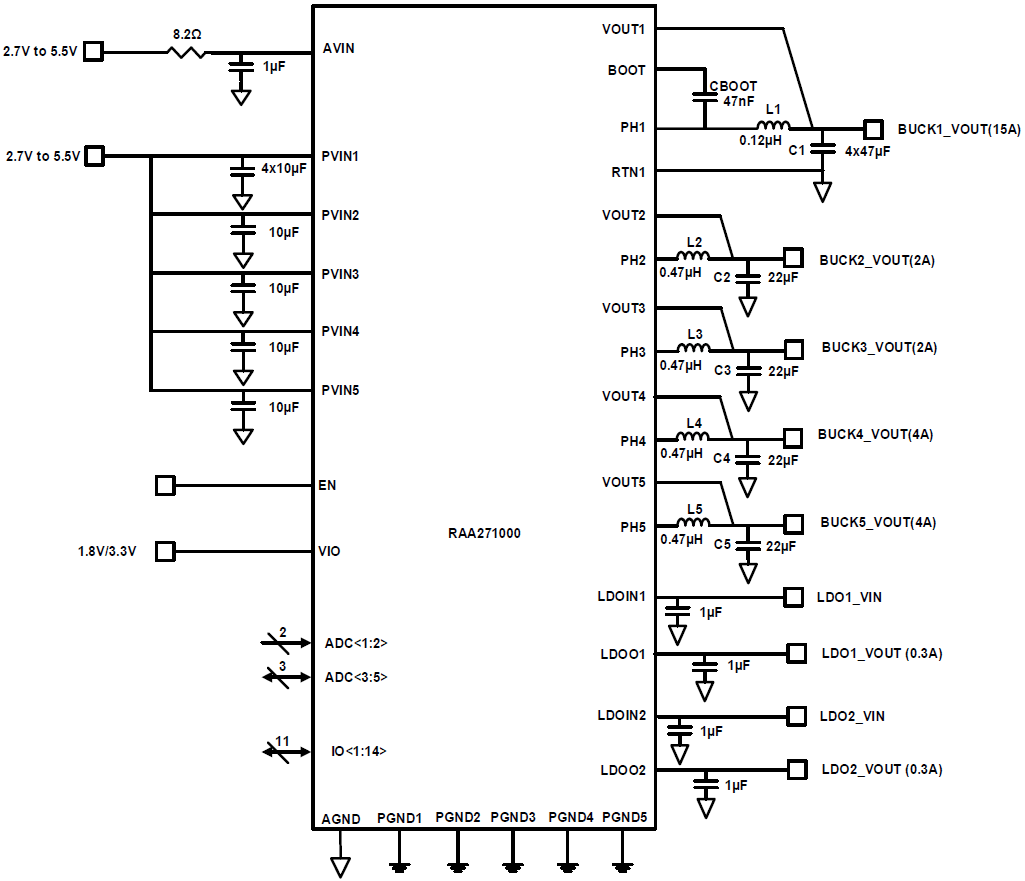

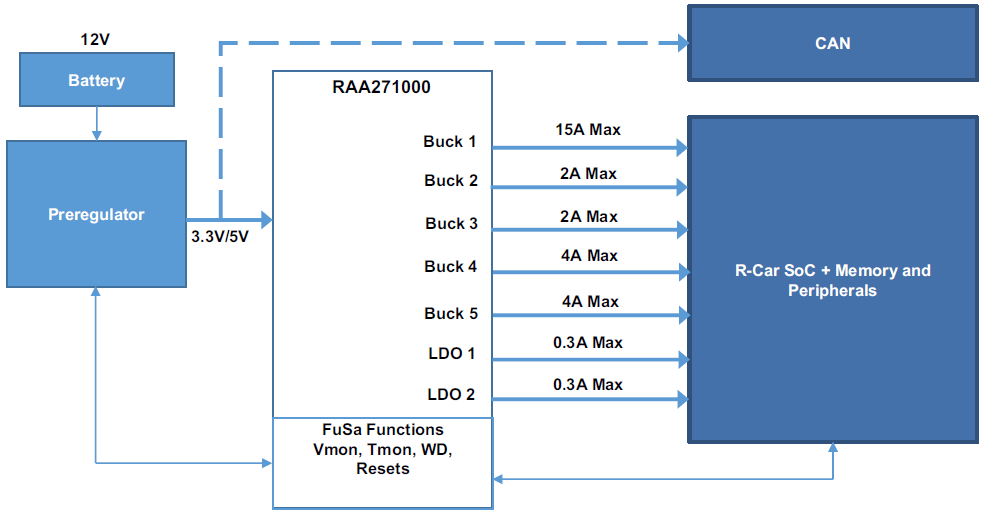

Applications
- Automotive vision systems
- Automotive Light Detection and Ranging (LiDAR) systems
- Advanced Driver Assistance Systems (ADAS) systems
- Automotive integrated cockpit systems
- Ideal power supply for the R-Car V3H SoC
