DA14580 Bluetooth Low Energy USB Dongle
The DA14580 USB Dongle (DA14580DONGLE) is an 802.15.1 Bluetooth® Low Energy dongle designed for use with the DA14580 Basic, Pro or Expert Development Kits.
Overview
Description

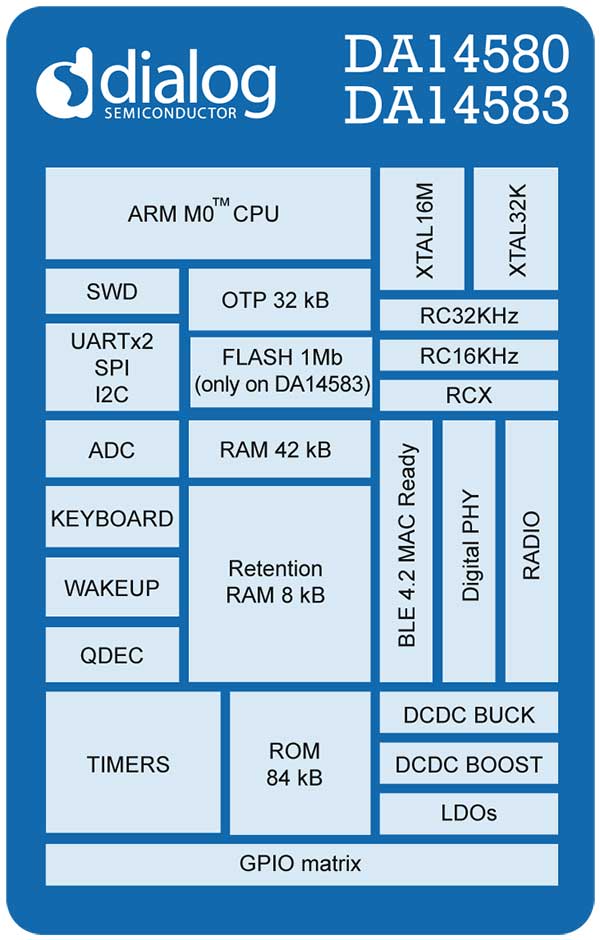

The DA14580 integrated circuit has a fully integrated radio transceiver and baseband processor for Bluetooth® Low Energy. It can be used as a standalone application processor or as a data pump in hosted systems.
The DA14580 supports a flexible memory architecture for storing Bluetooth profiles and custom application code, which can be updated over the air (OTA). The qualified Bluetooth Low Energy protocol stack is stored in a dedicated ROM. All software runs on the Arm® Cortex®-M0 processor via a simple scheduler.
The Bluetooth Low Energy firmware includes the L2CAP service layer protocols, Security Manager (SM), Attribute Protocol (ATT), the Generic Attribute Profile (GATT) and the Generic Access Profile (GAP). All profiles published by the Bluetooth SIG as well as custom profiles are supported. The transceiver interfaces directly to the antenna and is fully compliant with the Bluetooth 4.2 standard.
The DA14580 has dedicated hardware for the Link Layer implementation of Bluetooth Low Energy and interface controllers for enhanced connectivity capabilities.
Benefits
- Lowest power, smallest size, lowest system cost
- Flexible: Products can be upgraded in the field
- Data retention, even on depleted battery
Packages
- WLCSP-34 (2.5mm x 2.5mm x 0.5mm)
- QFN-48 (6.0mm x 6.0mm x 0.9mm)
- QFN-40 (5.0mm x 5.0mm x 0.9mm)
Features
- Bluetooth Low Energy (Bluetooth 4.2 specification)
- Cortex-M0 application processor
- Integrated One-Time-Programmable memory
- Power supply 2.35V to 3.3V
- Single pin RF I/O
- Rich set of analog and digital peripherals
Comparison
Applications
Applications
- Proximity and beacons
- Health and fitness
- HID
- Smart homes
- Applications requiring software upgrade Over-the-Air (OTA)
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| SmartBond™ - CodeLess™ AT Commands The SmartBond™ CodeLess AT Commands platform enables control of the Bluetooth® Low Energy connectivity, sensor read-out and battery check of the device.
|
IDE and Coding Tool | Renesas |
| SmartBond™ Development Tools SmartSnippets™ Studio is a royalty-free software development platform for SmartBond™ devices.
|
Software Package | Renesas |
| Renesas Bluetooth® Low Energy Mobile Application Suite Renesas’ comprehensive collection of Bluetooth® Low Energy mobile applications: SmartBond, SmartConfig, SmartConsole, SmartTags, and SUOTA
|
Software Package | Renesas |
3 items
|
||
Sample Code
Boards & Kits
DA14580 HongJia HJ-580CY Bluetooth® Low Energy 4.2 Module
Murata Type ZF Bluetooth® Low Energy Module
Murata Type ZY Bluetooth® Low Energy Module
Panasonic Bluetooth® Low Energy Module
TDK Bluetooth® Low Energy Module
Bluetooth Low Energy SoC 16-site Production Line Tool Kit
Renesas offers a production test and programming unit that enables you to reduce the time to ramp-up at a lower cost. The Production Line Tool (PLT) helps to increase...
Bluetooth Low Energy 16-site Production Line Tool Kit Golden Unit Daughterboard
The Production Line Tool (PLT) helps to increase throughput in volume test and programming of units centered around the Renesas Bluetooth® ICs.
In the PLT, the...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| QFN48 | Tape & Reel | |||
| QFN40 | Tape & Reel | 4.38 | ||
| WLCSP34 | Tape & Reel | 1.81 |
