RL78 Family Development Environment — Boards and Kits

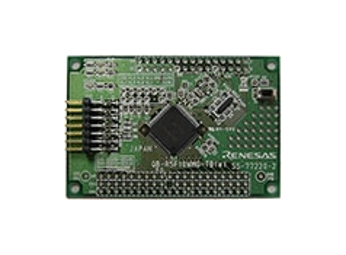

The target board (CPU board) is a trial evaluation board that allows beginners to quickly and safely check MCU operation.
Because all pins of the MCU are assigned on the peripheral board connector, the evaluation circuit can be created by using a commercially available universal board.
Product List
Product ID | Title |
---|---|
QB-R5F10Y16-TB | RL78/G10 (R5F10Y16) Target Board |
RTE510Y470TGB00000R | RL78/G10 (R5F10Y47) CPU Board |
YQB-R5F1057A-TB | RL78/G11 (R5F1057AANA) Target Board |
QB-R5F1026A-TB | RL78/G12 (R5F1026AASP) Target Board |
QB-R5F100LE-TB | RL78/G13 (R5F100LE) Target Board |
QB-R5F100SL-TB | RL78/G13 (R5F100SLAFB) Target Board |
RTK5RLG13AC00000BJ | RL78/G13A Target Board |
QB-R5F104LE-TB | RL78/G14 (R5F104LEAFB) Target Board |

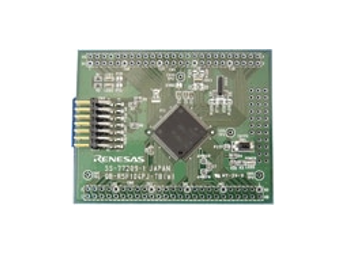

QB-R5F104PJ-TB | RL78/G14 (R5F104PJAFB) Target Board |
QB-R5F10ELE-TB | RL78/G1A (R5F10ELEAFB) Target Board |
QB-R5F10JGC-TB | RL78/G1C (R5F10JGCAFB) Target Board |
YQB-R5F11BLE-TB | RL78/G1F (R5F11BLEAFB) Target Board |
YQB-R5F11EFA-TB | RL78/G1G (R5F11EFAA) Target Board |
QB-R5F10RLC-TB | RL78/L12 (R5F10RLCAFB) Target Board |
QB-R5F10WMG-TB | RL78/L13 (R5F10WMGAFB) Target Board |
QB-R5F110PJ-TB | RL78/L1C (R5F110PJ) Target Board |
QB-R5F107DE-TB | RL78/I1A (R5F107DEGSP) Target Board |
RTE510MPG0TGB00000R | RL78/I1B Target Board |
QB-R5F107DE-TB | RL78/I1D (R5F117GC) CPU Board |
