概要

The HI5860SOICEVAL1 evaluation board provides a quick and easy method for evaluating the HI5860 12-bit, 130MSPS high-speed DACs. The board is configured so that the converter outputs differential current into a transformer circuit to form an output voltage. The amount of current out of the DAC is determined by an external resistor and either an internal or external reference voltage. The CMOS digital inputs have optional external termination resistors. The evaluation board includes a VME digital interface that is compatible with all previous Renesas D/A converter evaluation boards.

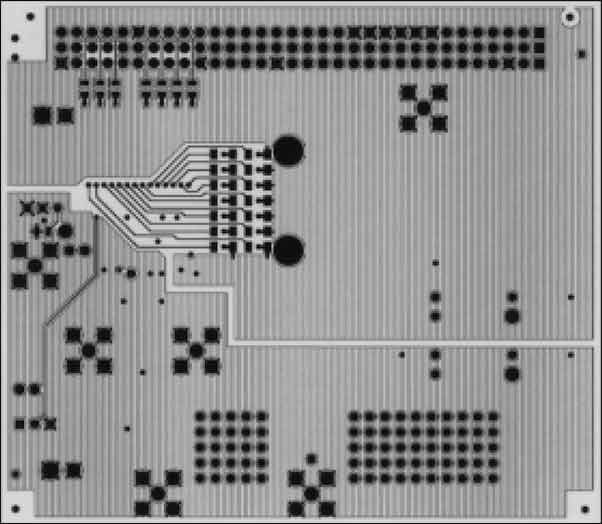

HI5X60SOICEVAL1 12- & 14-Bit High Speed DAC Eval Boards
HI5X60SOICEVAL1 12- & 14-Bit High Speed DAC Eval Boards
  • 130MSPS 12-bit CMOS DAC
  • Also can be used to evaluate the 8- and 10-bit versions, the HI5660 and HI5760
  • Transformer-coupled or single-ended SMA outputs
  • Easily selectable internal or external reference

アプリケーション

  • Cellular basestations
  • WLL, basestation and subscriber units
  • Medical/Test instrumentation
  • Wireless communications systems
  • Direct digital frequency synthesis
  • High resolution imaging systems
  • Arbitrary waveform generators

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
HI5x60EVAL1 User Guide
PDF 1.44 MB
データシート
HI5860 Datasheet
PDF 675 KB
2件

製品選択

    Processing table
    ご購入 / サンプル
    型名
    HI5860SOICEVAL1
    circle廃止品
