R-IN32M3 Module Adapter Board
The Renesas R-IN32M3 Module Solution Kit is the perfect “accelerator” for developers who are new to the world of Industrial Ethernet. The certified hardware and...
Featured Documents:
Overview
Description

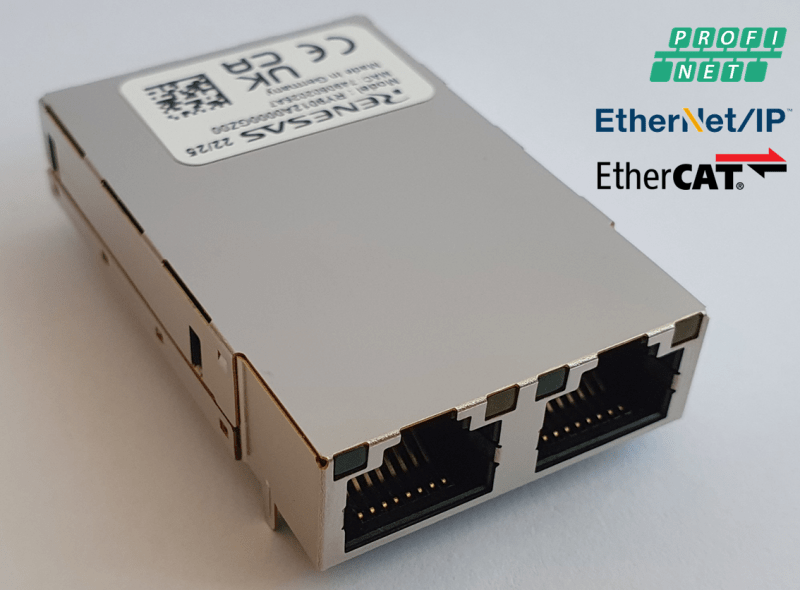

The R-IN32M3 module comes with all the necessary hardware and software required for industrial Ethernet support, including PROFINET, EtherNet/IPTM and EtherCAT® protocol stack. Software updates can also be used to update protocol specifications, so you can always get products that meet the latest protocol specifications to market quickly.
- Software and Documents: Renesas R-IN32M3 Module Sample Package Rev.1.05 (ZIP | English, 日本語)
- Evaluation Board
Features
- Multi-protocol support for industrial Ethernet protocols PROFINET RT (MRP support), EtherNet/IP (DLR support) and EtherCAT
- Modbus TCP supported by host CPU control
- The protocol stack is built into the module and can be selected by specifying from the host CPU. (exclusive selection)
- 2-port RJ45 Ethernet connector, 100Mbp/s (full duplex). Built-in switches for a variety of network topologies
- Host CPU communication via SPI communication
- Various host CPU sample apps are available for reducing development effort
- EK-RA6M3/EK-RA6M4
- Synergy SK-S7G2
- RX66T
- RL78/G14 Fast Prototyping Board
- Log and configuration management via the “Management Tool” with integrated easy master capability
Comparison
Applications
- Industrial network slave applications
- Sensors and transmitters
- Gateways
- Operator Terminals
- Remote I/O solutions
Design & Development
Sample Code
Boards & Kits
CPU Card With R-IN32M3 Module - Solution Kit for R-IN32M3 Module
All-in-one evaluation board with R-IN32M3 module and host CPU RX66T. Easy to start the evaluate and application development of industrial Ethernet such as PROFINET,...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 175.55 | Get Samples, | |
| 196.65 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
