Overview

The RA8E1 MCU Group features entry-line 32-bit microcontrollers (MCU) based on the Arm® Cortex®-M85 (CM85) core with Helium and TrustZone®, delivering breakthrough performance of 6.39 CoreMarks/MHz, with fully deterministic, low-latency, real-time operation that enables customers’ most demanding application needs. These are general-purpose MCUs and address diverse high-performance and compute-intensive applications in industrial automation, home appliances, smart home, consumer, building/home automation, and medical/healthcare market segments.

The RA8E1 MCUs integrate the high-performance CM85 core with memory, multiple external interfaces and an optimized peripheral set that addresses the needs of price-sensitive applications. RA8E1 MCUs are available in 100 and 144-pin LQFP packages, to serve the needs of a broad range of high-performance applications.

The RA8E1 MCUs are fully supported by the RA Flexible Software Package and a comprehensive set of hardware and software development tools.

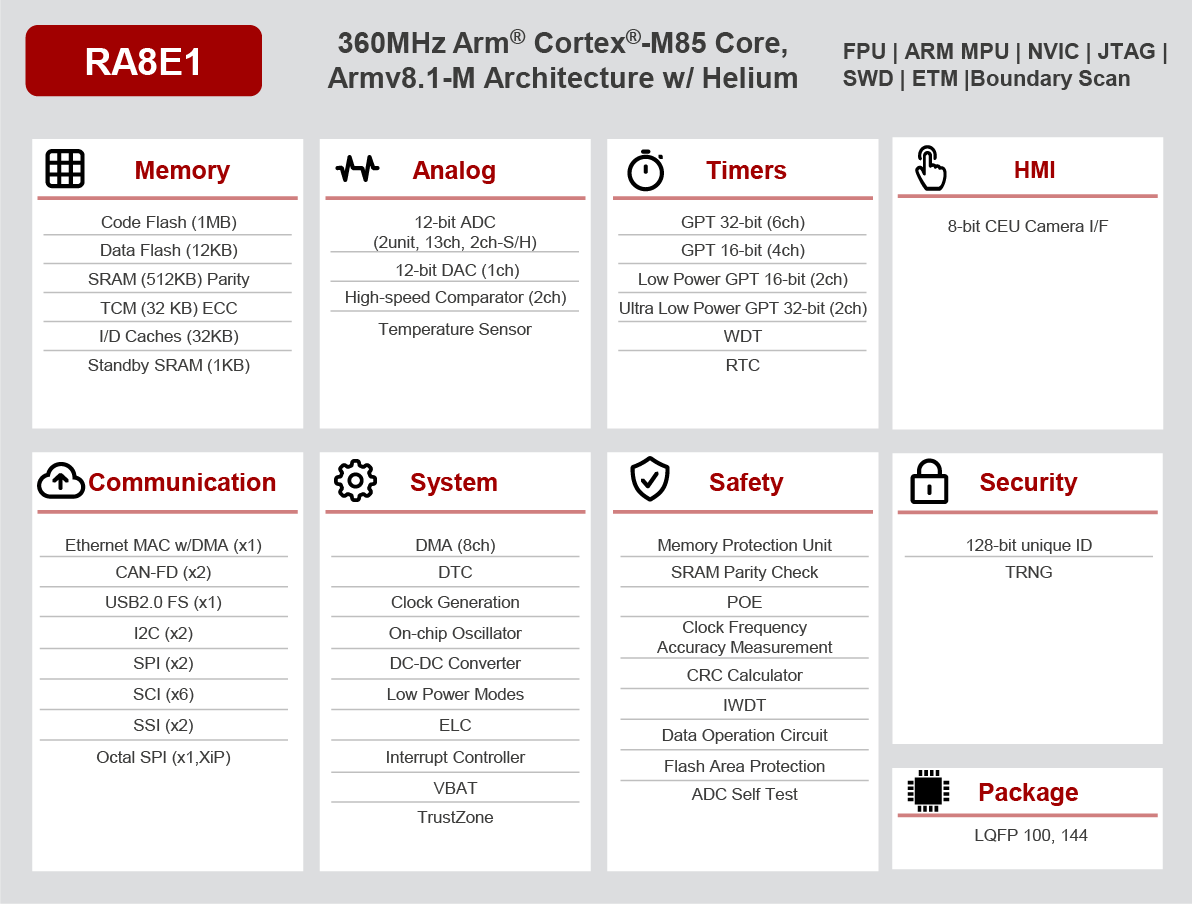

RA8E1 Block Diagram
RA8E1 Block Diagram
  • 360MHz Arm® Cortex®-M85 with Helium™ MVE
  • 1MB Flash memory and 544KB of SRAM including TCM
  • 32KB I/D caches and 12KB data flash
  • ARMv8-M TrustZone security
  • On-chip immutable ROM for first stage bootloader
  • 8-bit CEU camera I/F
  • xSPI compliant Octal SPI with XIP
  • USB 2.0 FS
  • 2ch of CAN FD
  • Ethernet controller with DMA
  • 32-bit & 16-bit timers, 32-bit ultra-low-power timers
  • 12-bit ADC and 12-bit DAC
  • High-speed analog comparators
  • SCI (UART, Simple SPI, Simple I2C), SSI
  • SPI/ I2C multi-master interface
  • 100 and 144-pin LQFP packages

Applications

  • Industrial Applications (PLC, Robotics, Power Tools, Smart Meters, etc.)
  • Consumer Products (Smart Appliances, Robotic Vacuum Cleaners, Exercise Equipment, etc.)
  • Smart Home and Building Automation (HVAC, Thermostats, Home Hubs/Gateways, Security Access Panels)
  • Office Automation (Barcode Scanner, QR Code Reader, Fingerprint Scanner, etc.)
  • Healthcare (Infusion Pumps, CPAP Machine, etc.)
  • Predictive Maintenance and Voice AI Applications
  • Vision AI Applications (People Detection, Image Classification, Object Detection)

Documentation

Design & Development

Software & Tools
RA Flexible Software Package (FSP)
FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
Downloads
Renesas RA Family Exception HandlingRenesas RA Family Exception HandlingHigh Performance with RA8 MCU using Arm® Cortex®-M85 core with Helium™High Performance with RA8 MCU using Arm® Cortex®-M85 core with Helium™Getting Started with RA8 Power Management Techniques
 Software Package Renesas
e² studio - information for RA Family
Eclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
IDE and Coding Tool Renesas
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
 Emulator Renesas
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator Renesas
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
 Solution Toolkit Renesas
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) Renesas
Renesas Flash Programmer (Programming GUI)
Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
 Programmer (Unit/SW) Renesas
Add 2 hidden items
7 items
FPB-RA8E1 Evaluation Board

FPB-RA8E1

Evaluation
Learn More

Fast Prototyping Board for RA8E1 MCU Group

The RA8E1 Fast Prototyping Board comes equipped with an R7FA8E1AFDCFB microcontroller and is an evaluation board specialized for prototype development for a variety of...

Featured Documents:
FPB-RA8E1 Quick Start Guide

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    PLP
    Carrier Type
    CPU
    Operating Freq (Max) (MHz)
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    ECC SRAM
    Lead Count (#)
    Pkg. Type
    Pkg. Dimensions (mm)
    Pitch (mm)
    I/O Ports
    Supply Voltage (V)
    Temp. Range
    External Memory Bus (bit)
    Floating Point Unit
    DMAC or DTC
    External Interrupt Pins (#)
    USBFS (host ch/device ch)
    USB2.0 (ch)
    Ethernet (ch)
    CAN (ch)
    CAN-FD (ch)
    SCI or UART (ch)
    SPI (ch)
    I2C (#)
    I3C (ch)
    LIN (#)
    SSI (ch)
    QSPI Interface (#)
    OSPI (ch)
    SDHI (ch)
    Capacitive Touch Sensing Unit (ch)
    Graphics LCD Controller
    Camera I/F (Parallel)
    Segment LCD Controller
    Wireless
    IrDA
    32-Bit Enhanced Timer (ch)
    32-Bit Timer (ch)
    16-bit High Res Timer (ch)
    16-bit Enhanced Timer (ch)
    16-Bit Timer (ch) (#)
    8-Bit Timer (ch)
    Asynchronous General Purpose Timer (ch)
    Watchdog Timer (ch)
    24-Bit Sigma-Delta A/D Converter (ch)
    16-Bit A/D Converter (ch)
    14-Bit A/D Converter (ch)
    12-Bit A/D Converter (ch)
    10-Bit A/D Converter (ch)
    12-Bit D/A Converter (ch)
    8-Bit D/A Converter (ch)
    High-Speed Analog Comparator (ch)
    Low-Power Analog Comparator (ch)
    PGA (ch)
    OPAMP (ch) (#)
    Temperature Sensor (ch) (#)
    RTC
    LVD
    Security & Encryption
    Power-On Reset
    Sub-clock (32.768 kHz)
    On-chip Oscillator
    Debug Interface
    Replacement Product
    Replacement Remark
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    R7FA8E1AFDCFP#BA0
    circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) Arm Cortex-M85 360 1024 12 544 Yes 100 LFQFP 14 x 14 x 1.4 0.5 70 1.68 - 3.6 Tj=-40 to 105°C No Double/Single/Half 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 6 2 2 0 0 2 0 1 0 0 No 8-bit No No No 0 6 0 0 4 0 2 2 0 0 0 13 0 1 0 2 0 0 0 1 Yes Yes 128-bit Unique ID,TRNG Yes Yes Yes JTAG/SWD 3 Get Samples,
    R7FA8E1AFDCFB#BA0
    circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) Arm Cortex-M85 360 1024 12 544 Yes 144 LFQFP 20 x 20 x 1.7 0.5 106 1.68 - 3.6 Tj=-40 to 105°C No Double/Single/Half 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 6 2 2 0 0 2 0 1 0 0 No 8-bit No No No 0 6 0 0 4 0 2 2 0 0 0 13 0 1 0 2 0 0 0 1 Yes Yes 128-bit Unique ID,TRNG Yes Yes Yes JTAG/SWD 3 Get Samples,
    R7FA8E1AFDCFP#UA0
    circleActive
    memory
    view_in_ar
    		N/A Full Tray (Tray) Arm Cortex-M85 360 1024 12 544 Yes 100 LFQFP 14 x 14 x 1.4 0.5 70 1.68 - 3.6 Tj=-40 to 105°C No Double/Single/Half 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 6 2 2 0 0 2 0 1 0 0 No 8-bit No No No 0 6 0 0 4 0 2 2 0 0 0 13 0 1 0 2 0 0 0 1 Yes Yes 128-bit Unique ID,TRNG Yes Yes Yes JTAG/SWD 3
    R7FA8E1AFDCFB#UA0
    circleActive
    memory
    view_in_ar
    		N/A Full Tray (Tray) Arm Cortex-M85 360 1024 12 544 Yes 144 LFQFP 20 x 20 x 1.7 0.5 106 1.68 - 3.6 Tj=-40 to 105°C No Double/Single/Half 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 6 2 2 0 0 2 0 1 0 0 No 8-bit No No No 0 6 0 0 4 0 2 2 0 0 0 13 0 1 0 2 0 0 0 1 Yes Yes 128-bit Unique ID,TRNG Yes Yes Yes JTAG/SWD 3
