Overview
Description

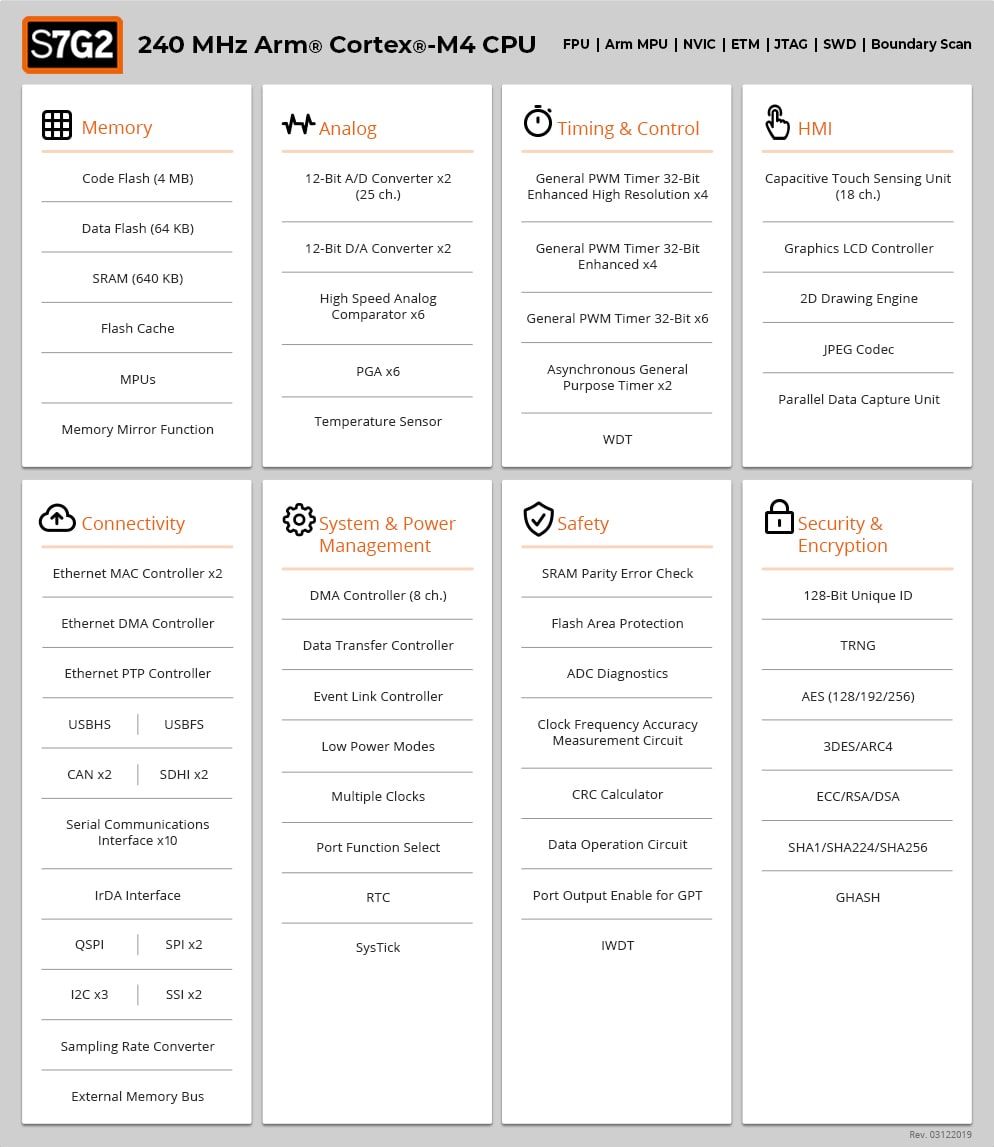

Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy, the S7G2 MCU Group has 3MB to 4MB of flash memory and 640KB of SRAM. Rich in features, it includes a graphics LCD controller, 2D drawing engine, Capacitive Touch Sensing Unit (CTSU), advanced analog, Ethernet MAC controller with IEEE 1588 PTP, USB 2.0 High-Speed and Full-Speed, SDHI, quad SPI, and safety and security features, to handle a wide range of complexity.
Synergy Software Package (SSP)
Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license rights. The production-ready SSP is fully tested, maintained, and supported by Renesas.
Features
- 240MHz Arm® Cortex®-M4 CPU
- Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy
- Graphics LCD controller
- 2D drawing engine
- Capacitive Touch Sensing Unit
- Advanced analog
- Ethernet MAC controller with IEEE 1588 PTP
- USB 2.0 High-Speed and Full-Speed
- SDHI
- Quad SPI
- Safety and security features, to handle a wide range of complexity
Comparison
Applications
- Industrial process control
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | Renesas |
| Renesas Synergy™ Software Package (SSP) A tightly integrated, optimized, and qualified suite of software with a commercial RTOS that scales with end-product complexity that simplifies complex system-level services.
|
Software Package | Renesas |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | Renesas |
3 items
|
||
Sample Code
Boards & Kits
SK-S7G2 Starter Kit
Experience the power of the Synergy™ Platform and key features of the flagship Synergy S7G2 microcontroller (MCU) Group within minutes.
Part number of this kit has...
Featured Documents:
PE-HMI1 Product Example
A flexible, full-featured human machine interface (HMI) and communications product example based on the flagship Synergy™ S7G2 microcontroller (MCU) Group.
Part...
Featured Documents:
S7G2 Development Kit
Discover the flagship of the Synergy™ microcontroller (MCU) family, develop seamlessly with the Synergy Platform, and implement special functions with the expansion...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Program Memory (KB) |
Data Flash (KB) |
SRAM |
Lead Count (#) |
Pkg. Type |
PLP |
Operating Voltage Range (V) |
Operating Freq (Max) (MHz) |
DAC |
I/O Ports |
CAN (ch) |
Safety |
Security & Encryption |
Family Name |
DMA |
Ethernet |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||||||
| 4096 | 64 | 640 KB | 224 | LFBGA | 2033 Oct | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 172 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 25.35 | Get Samples, | |
| 4096 | 64 | 640 KB | 176 | BGA | 2033 Oct | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 126 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 19.32 | Get Samples, | |
| 4096 | 64 | 640 KB | 176 | LFQFP | N/A | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 126 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 19.34 | Get Samples, | |
| 4096 | 64 | 640 KB | 145 | TFLGA | 2033 Oct | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 104 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | Get Samples, | ||
| 4096 | 64 | 640 KB | 144 | LFQFP | N/A | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 104 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 23.03 | Get Samples, | |
| 3072 | 64 | 640 KB | 224 | LFBGA | 2033 Oct | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 172 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 21.11 | Get Samples, | |
| 3072 | 64 | 640 KB | 176 | BGA | 2033 Oct | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 126 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 14.39 | Get Samples, | |
| 3072 | 64 | 640 KB | 176 | LFQFP | N/A | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 126 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 23.38 | Get Samples, | |
| 3072 | 64 | 640 KB | 145 | TFLGA | 2033 Oct | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 104 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 13.72 | Get Samples, | |
| 3072 | 64 | 640 KB | 144 | LFQFP | N/A | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 104 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 20.47 | Get Samples, | |
| 3072 | 64 | 640 KB | 100 | LFQFP | N/A | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 70 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | Get Samples, | ||
| 3072 | 64 | 640 KB | 100 | LFQFP | 2037 Dec | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 70 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 20.8 | ||
| 4096 | 64 | 640 KB | 144 | LFQFP | 2037 Dec | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 104 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 22.52 | ||
| 3072 | 64 | 640 KB | 144 | LFQFP | 2037 Dec | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 104 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 22.31 | ||
| 4096 | 64 | 640 KB | 176 | LFQFP | 2037 Dec | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 126 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 19.54 | ||
| 3072 | 64 | 640 KB | 176 | LFQFP | 2037 Dec | 2.7 - 3.6 | 240 | 12-bit x 2-ch | 126 | 2 | Yes | 3DES, 128-bit Unique ID, AES128, AES192, AES256, ARC4, DSA, GHASH, RSA, SHA-1, SHA-224, SHA-256, TRNG | Synergy MCU | Yes | Yes | 3 | 23.15 |
