Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers....
Overview
Description
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With multiple network connectivity options, the kit provides a seamless cloud connectivity experience to most of the global cloud service providers. The kit is equipped with an onboard ethernet PHY for ethernet connectivity and includes the DA16600 Wi-Fi-BLE combo Pmod for wireless connectivity.
The kit has complete software stack support using FreeRTOS, Azure RTOS, other middleware stacks, and drivers, thereby making it an ideal platform for efficiently developing cloud solutions and greatly reducing the time-to-market.
For more information and for the complete cloud solution package, please refer to RX Cloud Solutions and Renesas Cloud Solutions.
Kit Contents

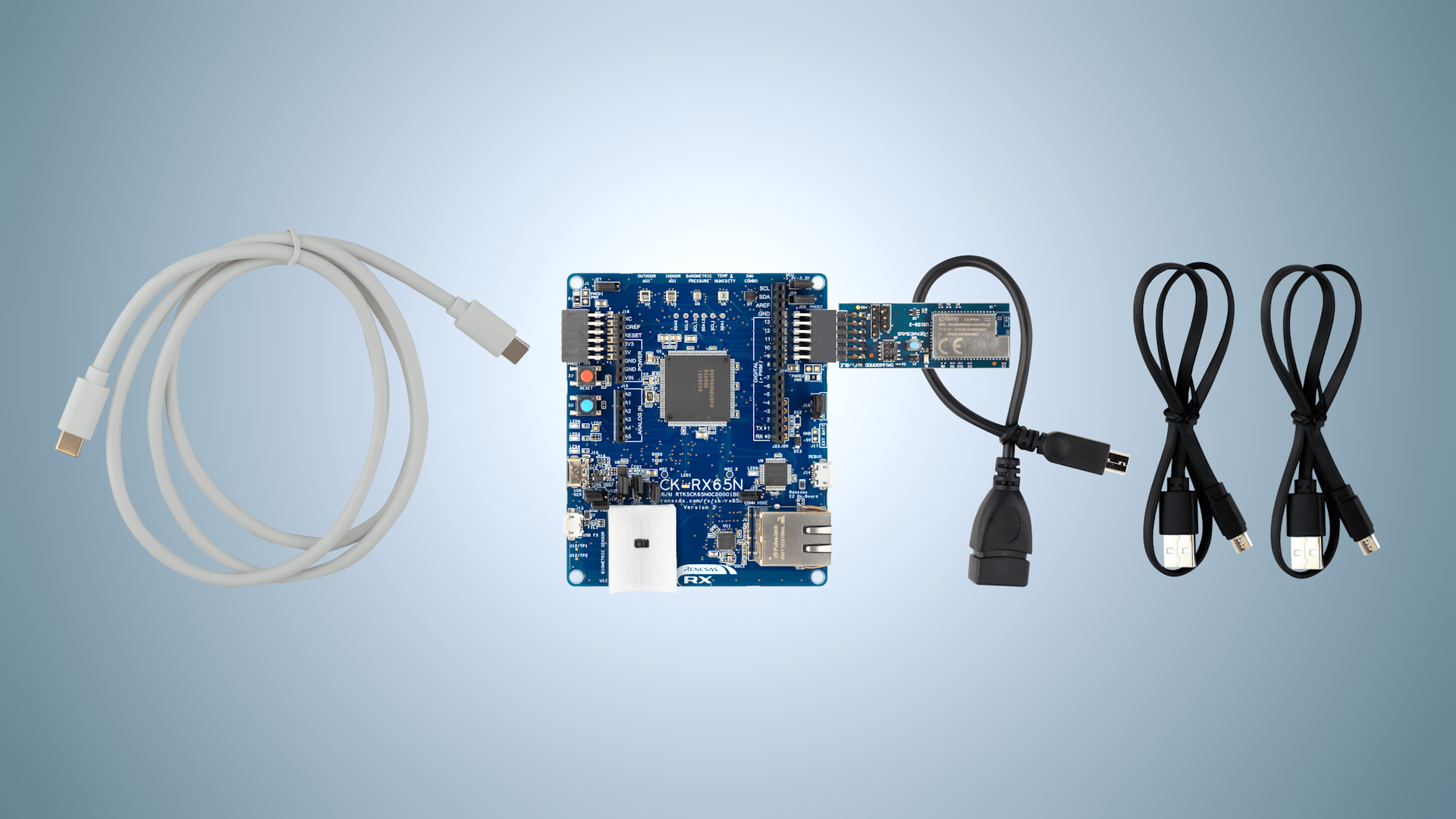

- CK-RX65N v2 board
- US159-DA16600EVZ Pmod
- Type-A to Micro-B USB cable
- Type-A to Micro-B USB adapter cable
- Type-C to Type-C USB cable
Features

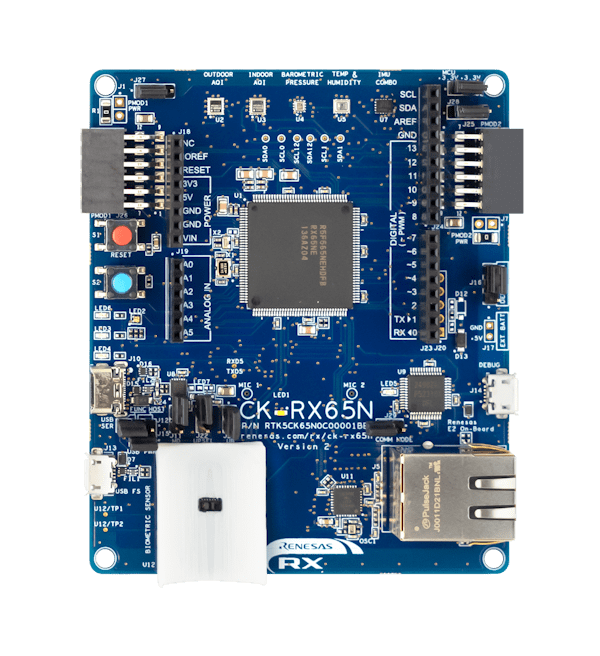

- CK-RX65N v2 baseboard
- Wi-Fi with US159-DA16600EVZ Pmod
- Ethernet
- USB Full Speed Host and Device
- Sensors:
- Humidity and Temperature
- Indoor Air Quality Index
- Outdoor Air Quality Index
- Heart rate, blood oxygen saturation (SpO2), respiration rate*OB1203(EOL)
- Barometric Pressure
- 6 axis Motion Tracking
- 2 MEMS Microphones
- Battery connector for portability
- Arduino™ (Uno R3) connector
- USB Type-C power connector
- On-board MCU
- R5F565NEHDFB microcontroller
- 120MHz, RX v2 core
- 2MB Code Flash, 640KB SRAM
- Trusted Secure IP for security functions
- 144 pins, LQFP package
- Ecosystem
- MCU and Pmod current measurement points
- 5V input through USB or external power supply
- USB-serial converter
- Debug on-board (E2OB)
- 4 user LEDS
- One user button
- 2 Digilent Pmod™ (SPI/UART/I2C: Type-6A and Type-2A) connectors
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
| QE for OTA: Development Assistance for Cloud QE for OTA is a development assistance tool that enables easy trial of over-the-air (OTA) firmware updates using cloud services. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78, RA] [Support clouds service: Amazon Web Services (AWS), Microsoft Azure]
|
Solution Toolkit | Renesas |
3 items
|
||
Sample Code
Related Boards & Kits
Ultra-Low-Power Wi-Fi + Bluetooth Low Energy Combo Pmod Board
The US159-DA16600EVZ is a highly integrated ultra-low-power Wi-Fi + Bluetooth® Low Energy (LE) combo Pmod™ module that provides a convenient way to add both low-power...
Featured Documents:
Processing table
RTK5CK65N0S08001BE Active
Buy Now
|
