Evaluation Board Kit for RZ/G2UL MPU
This evaluation board kit is ideal for evaluating RZ/G2UL. The RZ/G2UL Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board...
Featured Documents:
Overview
Description

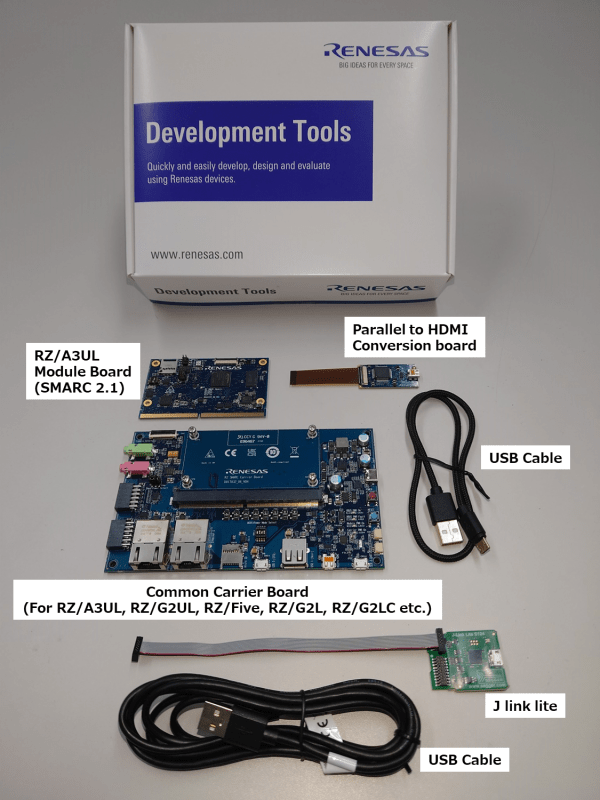

This evaluation board kit is ideal for evaluating RZ/A3UL. The RZ/A3UL Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board complies with the SMARC v2.1 standard.
Two types of evaluation boards are available: QSPI version and Octal-SPI version. For each version, there are two types: J link lite included type and J link lite not included type. Please select according to your needs.
- QSPI version: Memory configuration/ QSPI Serial Flash(Boot) + DDR4
- On-chip debugging emulator (J link lite) included
Type name / RTK9763U02S01002BE - On-chip debugging emulator (J link lite) not included
Type name / RTK9763U02S01000BE
- On-chip debugging emulator (J link lite) included
- Octal-SPI version: Memory configuration/ Octa Flash(Boot) + OctaRAM + DDR4
- On-chip debugging emulator (J link lite) included
Type name / RTK9763U02S01003BE - On-chip debugging emulator (J link lite) not included
Type name / RTK9763U02S01001BE
- On-chip debugging emulator (J link lite) included
RZ/A3UL Evaluation Board Kit supports real-time OSs (FreeRTOS, Azure RTOS) and various libraries (SSL/TLS, OTA, MQTT, TCP/IP, etc.) for IoT devices provided by major cloud vendors such as Amazon Web Services (AWS) and Microsoft. Microsoft device certifications give you the confidence to start development immediately.
In addition, it is equipped with input/output interfaces such as HDMI, audio, Ethernet, USB, and CAN, and can realize high-level IoT systems.
Features
- Device: RZ/A3UL
- Cortex-A55 Single
- BGA361pin, 13mmSq body, 0.5mm pitch
- Certified device in Azure Certified Device Catalog
- Module Board Function
- Two types of evaluation boards are available:
- QSPI version: QSPI Serial Flash (Boot) + DDR4
- Octal-SPI version: Octa Flash (Boot) + OctaRAM + DDR4
- DDR4 SDRAM: 1GB × 1pc
- QSPI flash memory: 128Mb × 1pc "AT25QL128A" (QSPI version)
- Octa RAM memory: 512Mb × 1pc / Octa flash memory: 1Gb × 1pc (Octal-SPI version)
- eMMC memory: 64GB × 1pc
- The microSD card slot is implemented and used as an eSD for boot.
- 5-output clock oscillator “5P35023” implemented
- PMIC power supply “DA9062” implemented
- Two types of evaluation boards are available:
- Carrier Board Function
- The FFC/FPC connector is mounted as standard for connection to high-speed serial interface for camera module.
- The Micro-HDMI connector via DSI/HDMI conversion module is mounted as standard for connection to high-speed serial interface for digital video module.
- The Micro-AB receptacle (ch0: USB2.0 OTG) and A receptacle (ch1: USB2.0 Host) are respectively mounted as standard for connection to USB interface.
- The RJ45 connector is mounted as standard for software development and evaluation using Ethernet.
- The audio codec is mounted as standard for advance development of audio system. The audio jack is implemented for connection to audio interface.
- The Micro-AB receptacles are implemented for connection to asynchronous serial port interface.
- The microSD card slot and two sockets for PMOD are implemented as an interface for RZ/A3UL peripheral functions.
- For power supply, a mounted USB Type-C receptacle supports the USB PD standard.
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 3.77 MB | |
| Application Note | PDF 9.08 MB | |
| Application Note | PDF 5.16 MB | |
| Application Note | PDF 247 KB | |
| Manual - Development Tools | ZIP 4.27 MB | |
| Flyer | PDF 411 KB 日本語 | |
| Release Note | PDF 205 KB | |
| Manual - Software | ZIP 1.63 MB | |
8 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RZ/A3UL Software Package This RZ/A3UL software package helps speed up time to market.
|
Software Package | Renesas |
|
1 item
|
||
Sample Code
Related Boards & Kits
Processing table
RTK9763U02S01000BE Active
Buy Now
|
RZ/A3UL QSPI SMARC EVK (J link lite not included) | None | |
RTK9763U02S01001BE Active |
RZ/A3UL Octal-SPI SMARC EVK (J link lite not included) | None | |
RTK9763U02S01002BE Active |
RZ/A3UL QSPI SMARC EVK (J link lite included) | None | |
RTK9763U02S01003BE Active |
RZ/A3UL Octal-SPI SMARC EVK (J link lite included) | None |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
GuilianiSDK for RZA3UL Tutorial - How to run
This video explains how to run "GuilianiDemo" with RZ/A3UL Evaluation Board Kit. “GuilianiDemo” is included in TES Electronics Solution's "Guiliani SDK for RZ/A3UL" and shows the capabilities of the Guiliani HMI framework.
00:00 Opening
00:37 Board, Software information
02:07 Board Configuration
02:24 Build and Run
