Overview
Description

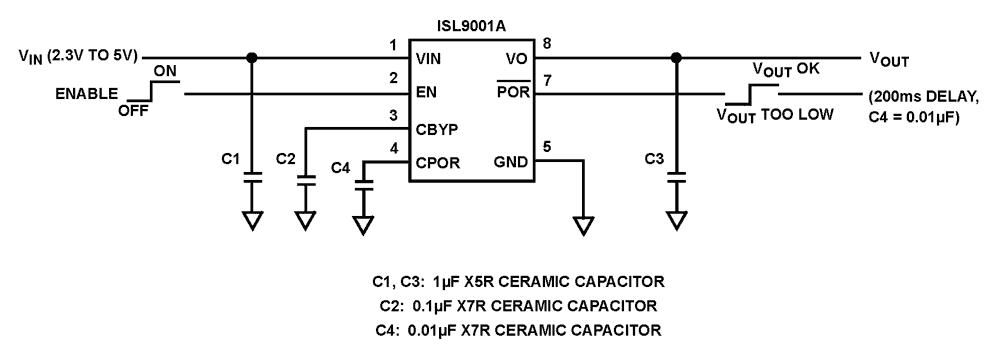

ISL9001A is a high-performance low dropout linear regulator capable of sourcing 300mA current. It has a low standby current and high-PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ. The ISL9001A has a very high PSRR of 90dB and output noise less than 30µVRMS. A reference bypass pin allows for the connection of a noise-filtering capacitor for low-noise and high-PSRR applications. When coupled with a no load quiescent current of 25µA (typical), and 0. 1µA shutdown current, the ISL9001A is an ideal choice for portable wireless equipment. The ISL9001A provides a PGOOD signal with delay time programmable through an external capacitor. Several different fixed voltage outputs are standard. Output voltage options for each LDO range from 1.5V to 3.3V. Other output voltage options may be available upon request.
Features
- 300mA high-performance LDO
- Excellent transient response to large current steps
- Excellent load regulation: <0.1% voltage change across the full range of load current
- High PSRR: 90dB at 1kHz
- Wide input voltage capability: 2.3V to 6.5V
- Extremely low quiescent current: 25µA
- Low dropout voltage: typically 200mV at 300mA
- Low output noise: typically 30µVRMS at 100µA (1.5V)
- Stable with 1µF to 10µF ceramic capacitors
- Soft-start to limit input current surge during enable
- Current limit and overheat protection
- Delayed POR, programmable with external capacitor
- ±1.8% accuracy over all operating conditions
- Tiny 2mm x 3mm 8 Ld DFN package
- -40 °C to +85 °C operating temperature range
- Pb-free (RoHS compliant)
Comparison
Applications
- PDAs, cell phones and smart phones
- Portable instruments, MP3 players
- Handheld devices, including medical handhelds
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 662 KB | |
| Brochure | PDF 11.35 MB 日本語 , 简体中文 | |
| Product Change Notice | PDF 202 KB | |
| Product Change Notice | PDF 326 KB | |
| End Of Life Notice | PDF 200 KB | |
| Application Note | PDF 509 KB | |
| Application Note | PDF 397 KB | |
7 items
|
||
Design & Development
Boards & Kits
Automatic Liquid Dispenser Reference Design
This Automatic Liquid Dispenser reference design is for hands-free dispensing of liquids such as soap, hand sanitizer, shampoos, or hand lotions. Automatic liquid...
RX Evaluation System for BLDC Motor
The Evaluation System for BLDC Motor provided by Renesas is a low-voltage permanent magnet synchronous motor (brushless DC motor) solution that allows anyone to easily...
Featured Documents:
Motor Control Evaluation System for RA Family - RA6T1 Group
The Motor Control Evaluation System for RA Family - RA6T1 Group is a low-voltage permanent magnet synchronous motor (brushless DC motor) solution that allows anyone to...
Automatic Liquid Dispenser with Proximity Capacitive Sensing Reference Design
This Automatic Liquid Dispenser with Proximity Capacitive Sensing reference design is for hands-free dispensing of liquids such as soap, hand sanitizer, shampoo, or...
MCK-RA6T2 Renesas Flexible Motor Control Kit for RA6T2 MCU Group
The MCK-RA6T2 is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors). With this product and...
Featured Documents:
MCI-LV-1 Renesas Flexible Motor Control Inverter Board – Low Voltage 48V/10A for Three-Phase BLDC/PMSM Motor
The MCI-LV-1 is a motor control inverter board that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors). By using...
Featured Documents:
Vehicle Computer Generation 4
The VC4 is based on a complete Renesas chipset. The centerpiece is the R-Car S4 with 8x Cortex®A55 cores, 1x Cortex® R52 core 2x RH850 G4MH delivering up to 27K DMIPS...
Featured Documents:
Buck-Boost Last Gasp Power Supply for Energy Meter Reference Design
In this Reference Design, a supercapacitor is used as a backup power supply. The board allows for quick evaluation of the ISL85403 buck/boost controller in the...
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
MCB-RA6T2 CPU Board for RA6T2 MCU Group
This product is a CPU board for motor control equipped with RA6T2. Motor control using RA6T2 can be easily realized by using it in combination with a supported inverter board.
Featured Documents:
High-Efficiency IoT Battery System
The CN299-ISL9122A board is designed for optimized battery power supply in IoT applications. It enables quick evaluation of the ISL9001A low dropout linear regulator...
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
ISL9001AIRBZ-T Active Samples Available |
DFN | Reel | 3 | Get Samples, | |
ISL9001AIRCZ-T Active Samples Available |
DFN | Reel | 3 | 0.9614 | Get Samples, |
ISL9001AIRFZ-T Active Samples Available |
DFN | Reel | 3 | Get Samples, | |
ISL9001AIRJZ-T Active Samples Available |
DFN | Reel | 3 | Get Samples, | |
ISL9001AIRKZ-T Active Samples Available |
DFN | Reel | 3 | Get Samples, | |
ISL9001AIRNZ-T Active Samples Available
Buy Now
|
DFN | Reel | 3 | 0.9518 | Get Samples, |
