Evaluation Board for F1792 VersaMixer™ Wideband / Low-Power Single Channel
The F1792EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1792. There is onboard 4:1 Balun to translate 200 ohm IF output...
Overview
Description
The F1792 offers maximum performance and flexibility at minimum power consumption. The unique and patented settable-gain feature allows it to be used in a very wide variety of radiocard applications, even allowing for dynamic adjustment of gain to maximize performance on the fly. The extremely wide RF and IF bandwidths are achieved with a fixed BOM with all internal matching. The device can function with as little as -6 dBm LO power and with independent channel shutdown modes for ease of integration into high order TDD MIMO systems.
Features
- RF range: 400 MHz to 3800 MHz
- LO range: 400 MHz to 3600 MHz
- IF range: 50 MHz to 600 MHz
- 4 gain settings; 11 dB, 8 dB, 5 dB, 2 dB
- 2-bit gain step control
- Ideal for Multi-Carrier systems
- +35 dBm OIP3
- Low noise figure at any gain setting via IDT’s FlatNoise™ technology
- Z = 200 Ω IF balanced, 50 Ω RF, 50 Ω LO single ended
- All internally matched. Single BOM for all RF, LO and IF frequencies

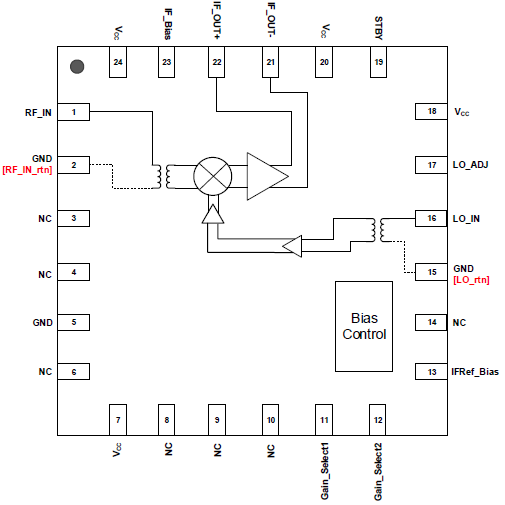

- 4 mm x 4 mm, 24-pin TQFN package
- Independent Path Standby mode
- 75 nsec settling for gain adjustment
- VCC = 3.3 V, 462 mW
Comparison
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.51 MB | |
| Guide | PDF 2.24 MB | |
| Product Change Notice | PDF 493 KB | |
| Product Brief | PDF 1.12 MB | |
| Product Change Notice | PDF 5.71 MB | |
| Product Change Notice | PDF 5.61 MB | |
| Product Change Notice | PDF 583 KB | |
7 items
|
||
Design & Development
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| VFQFPN | 24 | I | Yes | Tray | 1 | Get Samples, | |
| VFQFPN | 24 | I | Yes | Reel | 1 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

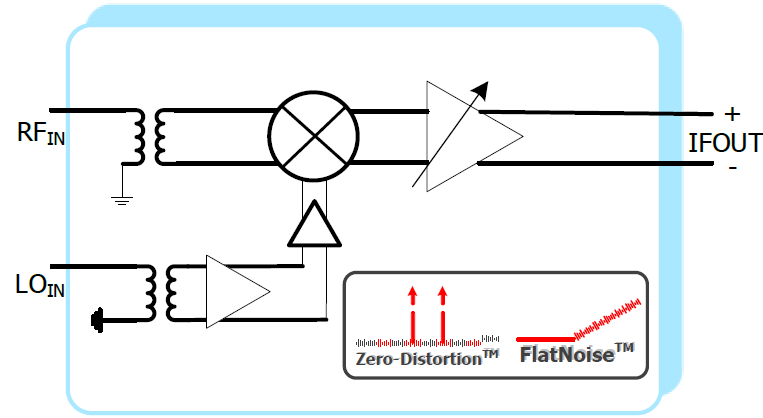

- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
IDT Versamixer RF IF Mixer Demonstration
A demonstration of IDT's F1192 RF mixer. The VersaMixer™ family of ultra-wide bandwidth RF mixers offer unparalleled flexibility. Delivering IDT’s (acquired by Renesas) hallmark high linearity, the VersaMixer devices are designed for any radio system requiring high performance and low power operating between 400MHz and 3800MHz. The F1192 is a dual-channel RF mixer, while the F1792 is single-channel.
The devices offer configurable gain operation for use in a wide array of radio card applications, including 2G-to-5G multimode remote radio units, backhaul systems, and public safety infrastructure. Coupled with ultra-wide bandwidth, this gives radio system designers the flexibility to optimize the receive system gain, noise, and linearity budget for virtually any application. Low power consumption — typically just 835mW total for two channels — supports high-density PCB layout design in modern remote radio units and small cells.
Unlike competitive offerings, the VersaMixer devices function over the entire operating bandwidth without any changes in external components. This means that a single bill of materials can support various RF and IF operating bandwidths, easing integration into different systems, and keeping a check on costs and time to market.
