Evaluation Kit for RA2A2 MCU Group
The EK-RA2A2 evaluation kit enables users to effortlessly evaluate the features of the RA2A2 MCU group and develop embedded system applications using Renesas' Flexible...
Featured Documents:
Overview
Description

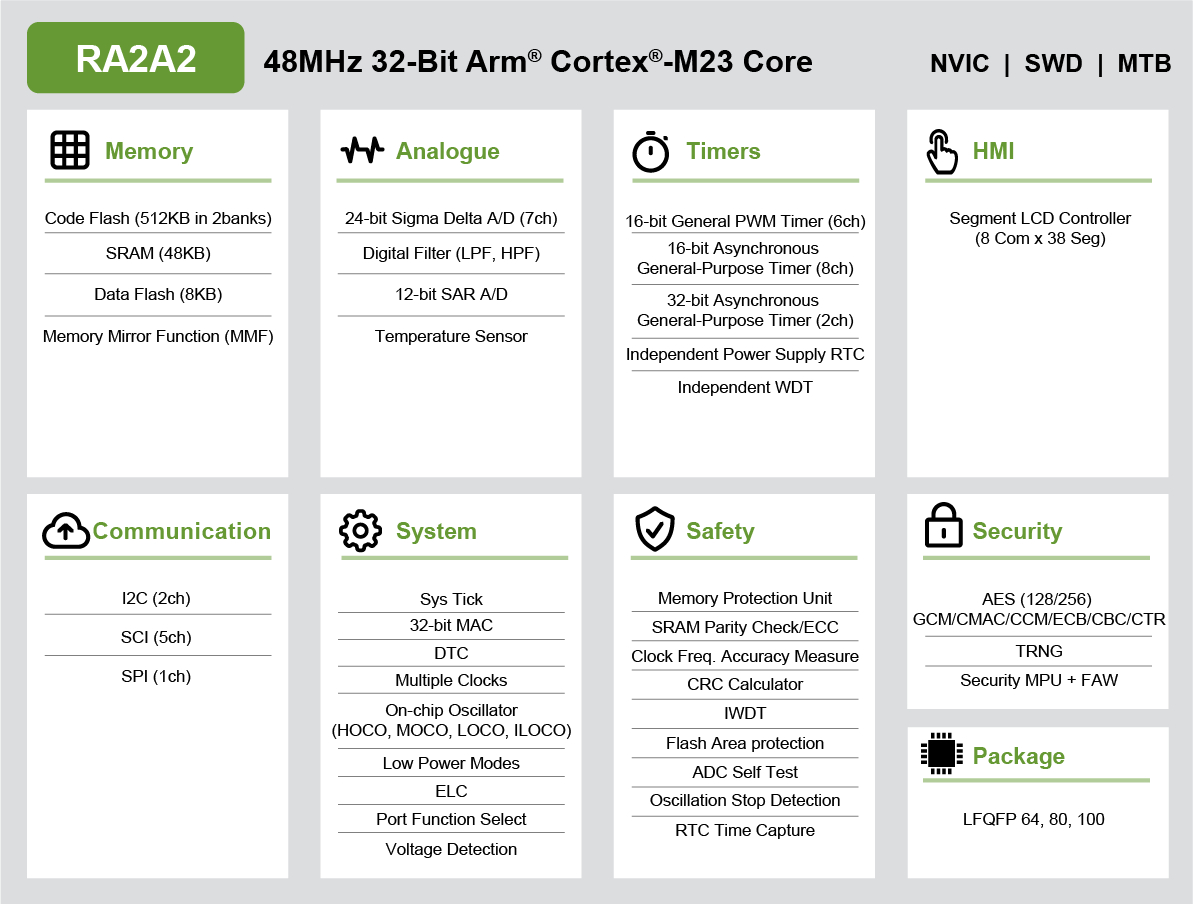

The RA2A2 group is a low-power microcontroller that combines a 48MHz Arm® Cortex®-M23 core and a rich set of peripheral functions. The RA2A2 MCU provides an optimized feature set suitable for a wide range of applications by supporting segment LCD and high-precision analog sensing functionalities while reducing power consumption, system cost, and overall footprint. Furthermore, the RA2A2's dual bank flash and security features make firmware updates easy and increase system reliability.
Features
- 48MHz Arm Cortex-M23 core
- 512KB flash memory (dual bank) and 48KB SRAM
- 8KB data flash memory (100,000 program/erase (P/E) cycles)
- 64-pin, 80-pin, and 100-pin LFQFP package options
- 24-bit Sigma-Delta A/D converter, 12-bit A/D converter and temperature sensor
- 16-bit general-purpose timers, 32-bit and 16-bit low-power AGT timers, and independent power supply RTC
- SCI (UART, Simple SPI, Simple I2C), SPI and I2C bus
- Segment LCD controller (8com x 38seg)
- Security functions including AES, Secure MPU, Flash Access Window, TRNG
Comparison
Applications
- Energy management devices
- Industrial automation
- Building automation
- Home appliances
- Medical and healthcare
- Digital home appliances/consumer products
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| e² studio - information for RA Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| QE for AFE: Development Assistance Tool for Analog Front End This development assistance tool supports the development of embedded systems to perform high-precision sensing for microcontrollers with built-in analog front-end (AFE). [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RX]
|
Solution Toolkit | Renesas |
| RA Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
| Arm® Keil® MDK Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
|
IDE and Coding Tool | Arm® Keil® MDK Arm® |
| IAR Embedded Workbench for Arm IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
|
IDE and Coding Tool | IAR Systems |
| SEGGER emWin GUI Library for Renesas RA Products SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
|
Imaging | SEGGER |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
| Reality AI Utilities Plug-in module for Renesas e² studio
|
Solution Toolkit | Renesas |
|
13 items
|
||
Sample Code
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Carrier Type |
CPU |
Operating Freq (Max) (MHz) |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
ECC SRAM |
Lead Count (#) |
Pkg. Type |
Pkg. Dimensions (mm) |
Pitch (mm) |
I/O Ports |
Supply Voltage (V) |
Temp. Range |
External Memory Bus (bit) |
Floating Point Unit |
DMAC or DTC |
External Interrupt Pins (#) |
USB FS (host ch/device ch) |
USB HS (host ch/device ch) |
Ethernet (ch) |
CAN (ch) |
CAN-FD (ch) |
SCI or UART (ch) |
SPI (ch) |
I2C (#) |
I3C (ch) |
LIN (#) |
SSI (ch) |
QSPI Interface (#) |
OSPI (ch) |
SDHI (ch) |
Capacitive Touch Sensing Unit (ch) |
Graphics LCD Controller |
Camera I/F (Parallel) |
Segment LCD Controller |
Wireless |
IrDA |
PWM Output (pin#) |
32-Bit Timer (ch) |
16-bit High Res Timer (ch) |
16-bit Enhanced Timer (ch) |
16-Bit Timer (ch) (#) |
8-Bit Timer (ch) |
Asynchronous General Purpose Timer (ch) |
Watchdog Timer (ch) |
24-Bit Sigma-Delta A/D Converter (ch) |
16-Bit A/D Converter (ch) |
14-Bit A/D Converter (ch) |
12-Bit A/D Converter (ch) |
10-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
8-Bit D/A Converter (ch) |
High-Speed Analog Comparator (ch) |
Low-Power Analog Comparator (ch) |
PGA (ch) |
OPAMP (ch) (#) |
Temperature Sensor (ch) (#) |
RTC |
LVD or PVD |
Security & Encryption |
Power-On Reset |
Sub-clock (32.768 kHz) |
On-chip Oscillator |
Debug Interface |
Replacement Product |
Replacement Remark |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2037 Dec | Full Carton (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 71 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 7 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 7 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 4.44 | Get Samples, | |||
| 2037 Dec | Tape & Reel | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 71 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 7 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 7 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 4.391 | ||||
| N/A | Bulk (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 71 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 7 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 7 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | |||||
| 2037 Dec | Full Carton (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 77 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 4.086 | Get Samples, | |||
| 2037 Dec | Tape & Reel | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 77 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 3.981 | ||||
| N/A | Bulk (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 77 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 4.199 | ||||
| 2037 Dec | Full Carton (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 80 | LFQFP | 12 x 12 x 1.7 | 0.5 | 59 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 11 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 3.938 | Get Samples, | |||
| 2037 Dec | Tape & Reel | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 80 | LFQFP | 12 x 12 x 1.7 | 0.5 | 59 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 11 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 3.932 | ||||
| N/A | Bulk (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 80 | LFQFP | 12 x 12 x 1.7 | 0.5 | 59 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 11 | 0 | 0 | 0 | 6 | 0 | 8 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 4.089 | ||||
| 2037 Dec | Full Carton (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 43 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 12 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 9 | 0 | 0 | 0 | 5 | 0 | 8 | 2 | 4 | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | Get Samples, | ||||
| 2037 Dec | Tape & Reel | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 43 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 12 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 9 | 0 | 0 | 0 | 5 | 0 | 8 | 2 | 4 | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | |||||
| N/A | Bulk (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 43 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 12 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 9 | 0 | 0 | 0 | 5 | 0 | 8 | 2 | 4 | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | 3.942 | ||||
| N/A | Full Tray (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LQFP | 0.5 | 71 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 6 | 0 | 2 | 7 | 0 | 0 | 4 | 0 | 0 | 0 | 7 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | ||||||||||||
| N/A | Full Tray (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 100 | LQFP | 0.5 | 77 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 12 | 0 | 6 | 0 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | ||||||||||||
| N/A | Full Tray (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 80 | LQFP | 0.5 | 59 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 13 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 5 | 1 | 2 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 11 | 0 | 6 | 0 | 2 | 4 | 0 | 0 | 4 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD | ||||||||||||
| N/A | Full Tray (Tray) | Arm Cortex-M23 | 48 | 512 | 8 | 48 | Yes | 64 | LQFP | 0.5 | 43 | 1.6 - 5.5 | Ta = -40 to 105°C | No | No | DTC | 12 | ( 0 / 0 ) | ( 0 / 0 ) | 0 | 0 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | No | No | Yes | No | No | 9 | 0 | 5 | 0 | 2 | 4 | 0 | 0 | 2 | 0 | 0 | 0 | 4 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/256), TRNG | Yes | Yes | Yes | SWD |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
RA2A2 48 MHz Arm® Cortex®-M23 Core MCU
An overview of the ultra-low power, feature-rich MCUs ideal for global energy management and a variety of industrial applications. Get all the details on the RA2A2 page.
