Overview
Description
The EK-RA2A2 evaluation kit enables users to effortlessly evaluate the features of the RA2A2 MCU group and develop embedded system applications using Renesas' Flexible Software Package (FSP) and e2 studio IDE. Utilize rich on-board features along with your choice of popular ecosystem add-ons to bring your big ideas to life.
Getting Started
Running the Quick Start Example Project
- The EK-RA2A2 board comes pre-programmed with a Quick Start example project (source code provided in the EK-RA2A2 example project bundle).
- Power up the EK-RA2A2 board through the USB debug port (J10) using the micro USB device cable connected to a 5V power source. The white power LED will light up.
- The Quick Start example project will begin to execute by blinking the blue user LED.
- Refer to the EK-RA2A2 – Quick Start Guide to explore additional functionality of the Quick Start example project.
Developing Embedded Applications
- Modifying the Quick Start example project – refer to the EK-RA2A2 Quick Start Guide for instructions on importing, modifying, and building the Quick Start example project.
- Start with one of the many other example projects (provided in the EK-RA2A2 example project's bundle) – choose from many example projects to learn about different peripherals of the RA2A2 MCU group. These example projects can be excellent starting points for developing your custom applications.
Building Custom Hardware
- Start by building a functional prototype - utilize the EK-RA2A2 board with your choice of ecosystem add-ons.
- Build custom hardware – develop custom hardware by referring to the design and manufacturing information provided in the EK-RA2A2 design package.
Features
- MCU Native Pin Access
- R7FA2A2AD3CFP MCU
- 48MHz, Arm® Cortex®-M23 core
- 512KB Code Flash (Dual Bank), 48KB SRAM
- 100 pins, LQFP package
- Native pin access through 3 x 20-pin and 1 x 40-pin male headers
- MCU current measurement points for precision current consumption measurement
- Multiple clock sources - RA MCU oscillator and sub-clock oscillator crystals, providing precision 32.768 kHz reference clock.
- Additional low-precision clocks (48MHz, 8MHz, 32.768kHz) are available internal to the RA MCU
- Ecosystem & System Control Access
- Two 5 V input sources
- USB (Debug)
- External power supply (using surface mount clamp test points and power input vias)
- SEGGER J-Link™ on-board programmer and debugger
- Three Debug modes
- Debug on-board (SWD) – via J-Link
- Debug in (SWD) – via J-Link, Arm® Keil® ULINK™, IAR I-jet™, Renesas E2/E2 Lite, etc.
- Debug out (SWD, JTAG) – via J-Link
- User LEDs and buttons
- Three User LEDs (red, blue, green)
- Power LED (white) indicating the availability of regulated power
- Debug LED (yellow) indicating the debug connection
- Two User buttons
- One Reset button
- Five most popular ecosystem expansions
- 2 Seeed Grove® system (I2C/Analog) connectors
- SparkFun® Qwiic® connector
- 2 Digilent Pmod™ (SPI and I2C) connectors
- Arduino™ (Uno R3) connector
- MikroElektronika™ mikroBUS™ connector
- MCU boot configuration jumper
- Two 5 V input sources

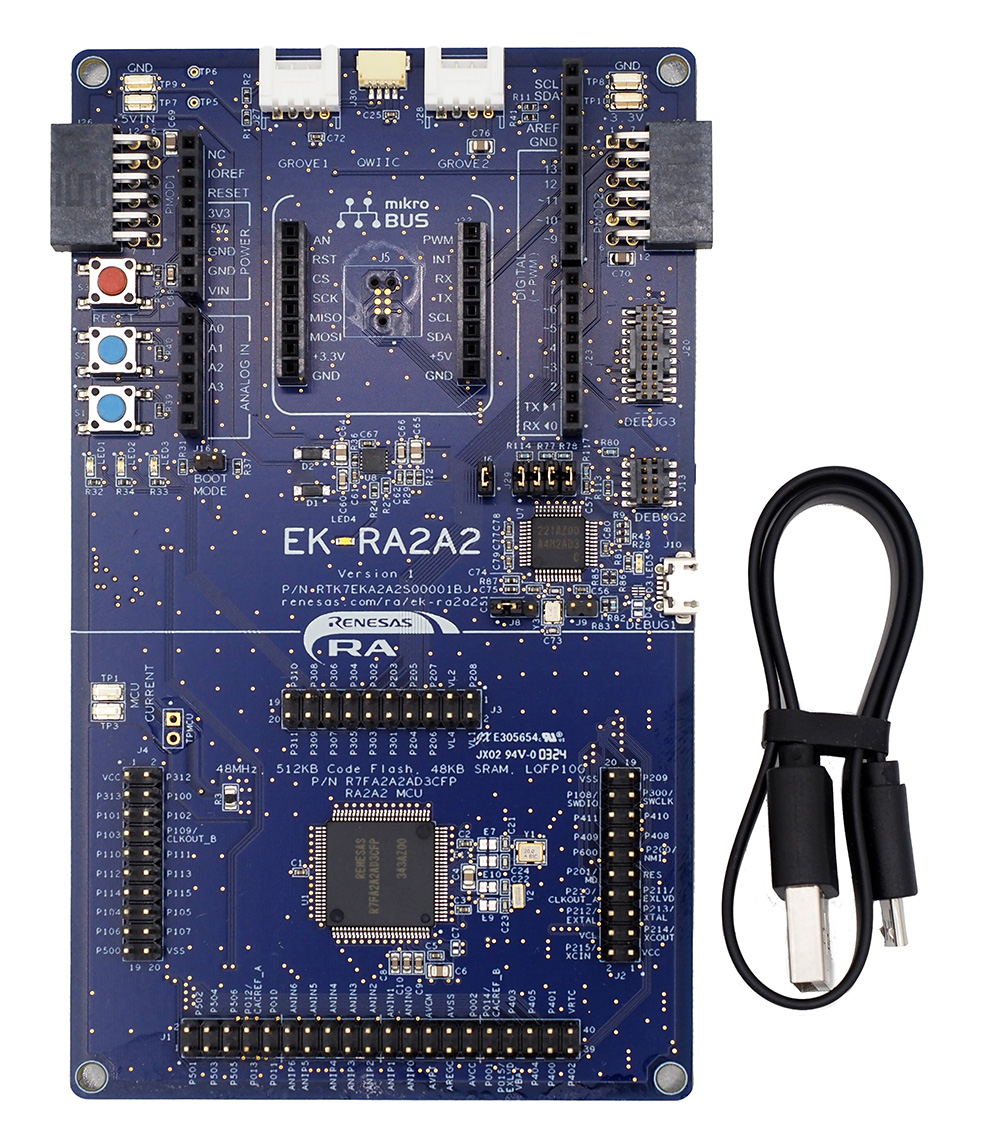

- Kit Contents: EK-RA2A2 v1 board, micro USB device cable (type‑A male to micro‑B male)
Applications
- Energy management devices
- Industrial automation
- Building automation
- Home appliances
- Medical and healthcare
- Digital home appliances/consumer products
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 1.10 MB 日本語 | |
| Manual - Development Tools | PDF 1.88 MB 日本語 | |
| Schematic | ZIP 80.16 MB | |
| Application Note | PDF 168 KB | |
| Tool News - Release | PDF 180 KB 日本語 | |
| Flyer | PDF 353 KB 日本語 | |
6 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QE for AFE: Development Assistance Tool for Analog Front End This development assistance tool supports the development of embedded systems to perform high-precision sensing for microcontrollers with built-in analog front-end (AFE). [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RX]
|
Solution Toolkit | Renesas |
| RA Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
| SEGGER™ J-Link™ Software and Documentation Package Software utilities, firmware updates, and supporting documentation for the J-Link on-board programmer and debugger on the RA MCU kits.
|
Software Package | SEGGER |
| e² studio Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
4 items
|
||
Sample Code
Related Boards & Kits
Evaluation Kit for RA2L1 MCU Group
The EK-RA2L1 evaluation kit enables users to effortlessly evaluate the features of the RA2L1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA2E1 MCU Group
The EK-RA2E1 evaluation kit enables users to effortlessly evaluate the features of the RA2E1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA2E2 MCU Group
The EK-RA2E2 evaluation kit enables users to effortlessly evaluate the features of the RA2E2 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Fast Prototyping Board for RA2E1 MCU Group
The RA2E1 Fast Prototyping Board comes equipped with an R7FA2E1A93CFM microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Fast Prototyping Board for RA2E2 MCU Group
RA2E2 Fast Prototyping Board is an evaluation board specialized for prototype development for a variety of applications. It has a built-in emulator circuit equivalent...
Featured Documents:
Fast Prototyping Board for RA2E3 MCU Group
The RA2E3 Fast Prototyping Board comes equipped with an R7FA2E3073CFL microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
Processing table
RTK7EKA2A2S00001BJ Active Samples Available
Buy Now
|
Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
RA2A2 48 MHz Arm® Cortex®-M23 Core MCU
An overview of the ultra-low power, feature-rich MCUs ideal for global energy management and a variety of industrial applications. Get all the details on the RA2A2 page.
Video List
News & Blog Posts
| New Renesas MCUs with High-Resolution Analog and Over-the-Air Update Support Help Customer Systems Conserve Energy | News | Mar 21, 2024 |
| How an MCU Can Contribute to an Energy-Saving Society | Blog Post | Mar 20, 2024 |
| Develop Faster Using Example Projects for RA MCU Innovation Kits for IoT | Blog Post | Dec 3, 2021 |
| Quickly Programming RA MCU Innovation Kits for IoT | Blog Post | Dec 3, 2021 |
| Accelerate Debugging Using RA MCU Innovation Kits for IoT Applications | Blog Post | Nov 15, 2021 |
| Beginning to Innovate Has Never Been Easier | Blog Post | Nov 11, 2021 |
Certifications
The EK-RA2A2 kit meets the following certifications/standards. Refer to the EK-RA2A2 user manual for the disclaimer, precautions and more details on the certifications.
EMC/EMI Standards
- FCC Notice (Class A) – Part 15
- Innovation, Science and Economic Development Canada ICES-003 Compliance: CAN ICES-3 (A)/NMB-3(A)
- CE Class A (EMC Directive 2004/108/EEC)
- Taiwan Chinese National Standard 13438, C6357 compliance, Class A limits
- Australia/New Zealand AS/NZS CISPR 32:2015, Class A
Material Selection, Waste, Recycling, and Disposal Standards
- EU RoHS
- China SJ/T 113642014, 10-year environmental protection use period
Safety Standards
- UL 94V-0
