RH850/E2x 292pin Piggyback Board of RH850 Evaluation Platform
The RH850/E2X 292pin Piggyback Board supports all devices of the RH850/E2M and RH850/E2x-FCC1 series in 292pin-package. It can be used standalone or in combination with...
Overview
Description
The RH850/E2H microcontrollers operate at 400 MHz and are equipped with large-capacity code flash and RAM of the highest speed class, which is necessary for real-time control. By leveraging multiple G4MH cores, the RH850/E2M supports even more advanced functionality, and many built-in functions such as security functions for Evita Medium and functional safety (ISO 26262) functions make it easier to get the certification. Over The Air (OTA) updating for automatically updating software wirelessly to a safer control program is also supported.
Features
- CPU Core:
- 400MHz core x4 (Inc. Lockstep dual core x2),
- FPU x4, FP-SIMD x2,
- Clock:
- Main Oscillator: 20/40 MHz, PLL: 400 MHz
- Internal Oscillator: 100 MHz
- Data transfer: sDMAC / DTS
- Timers : Engine Control Timer (ATU-V), GTM, Encoder Timer 2 units
- Digital Filter Engine (DFE) 20 ch, 2 units
- Analog: SAR A/D Converter 96 ch, 4 modules ,
- Delta-Sigma A/D Converter 38 ch, 10 modules ,
- Cyclic A/D Converter 8 ch, 1 module
- Communication interfaces :
- Serial Communication Interface (SCI3) 4 ch,
- Clock Synchronous Serial Interface(CSIH) 8 ch,
- High-Speed Bus (RHSB) 3 ch,
- LIN/UART,LIN/Master,LIN/Slave(RLIN3) 6 ch,
- CAN/CAN-FD 6 ch,
- FlexRay 1 unit,
- SENT I/F(RSENT) 20 ch,
- High Speed Serial Peripheral Interface (HS-SPI) 1 ch,
- High-Speed Serial I/F(RHSIF) 1 ch,
- Ethernet 1 ch,
- Peripheral sensor interface compliant with PSI5 Version 2.2 via the external transceiver (PSI5-S) 1 ch,
- External Bus Interface
- Digital Filter Engine (DFE) 20 ch, 2 units
- Security : Hardware security module (compliant with SHE/EVITA-Medium automotive security standard)
- Power Supply Voltage:
- 1.025 - 1.155 V (CPU core);
- 3.0 - 3.6 V / 4.5 - 5.5 V (I/O, System, AD converter)
- Temperature: Tj= -40 - +150 degC
Comparison
Applications
Applications
- Automotive Powertrain
Documentation
Functional Safety documentation can be released under NDA. Request Document
- Functional Safety Documentation
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| Renesas MCAL Renesas' MCAL (Microcontroller Abstraction Layer) software drivers can be obtained as a stand-alone software package.
|
Software Package | Renesas |
| IAR Embedded Workbench for Renesas RH850 IAR Embedded Workbench provides extensive support for RH850 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
|
IDE and Coding Tool | IAR Systems |
| Green Hills Multi Multi development environments allow to quickly develop, debug, test, and optimize embedded and real-time applications. The Green Hills optimizing compilers generate the smallest and fastest code from C, C++, and Ada.
|
IDE and Coding Tool | Green Hills Software LLC |
| Wind River Diab Compiler Wind River Diab Compiler for RH850 provides powerful optimization engine in C compiler for R850G3K/G3M cores.
|
Compiler/Assembler | Wind River Systems, Inc. |
| Green Hills MULTI Device-Support-Packages Green Hills MULTI Device-Support-Packages include all device specific files to be used with the MULTI IDE.
|
IDE and Coding Tool | Renesas |
|
8 items
|
||
Sample Code
Boards & Kits
RH850/E2x 373pin Piggyback Board of RH850 Evaluation Platform
The RH850/E2X 373pin Piggyback Board supports all devices of the RH850/E2M, RH850/E2H, RH850/E2UH, RH850/E2x-FCC1, and RH850/E2x-FCC2 series in 373pin-package. It can...
Featured Documents:
RH850/E2x 468pin Piggyback Board of RH850 Evaluation Platform
The RH850/E2X 468pin Piggyback Board supports all devices of the RH850/E2H, RH850/E2UH, and RH850/E2x-FCC2 series in 468pin-package. It can be used standalone or in...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 4 + 2 | 400 | 1152 | 12288 | 256 | BGA468 | -40 to 150°C | 96 | No | No | 6 | Yes | 2 | 8 | 6 | 20 | 1 | 16-bit x 40-ch, 32-bit x 154-ch | |||||
| 4 + 2 | 400 | 1152 | 12288 | 256 | BGA373 | -40 to 150°C | 80 | No | No | 6 | Yes | 2 | 8 | 6 | 20 | 1 | 16-bit x 40-ch, 32-bit x 154-ch |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

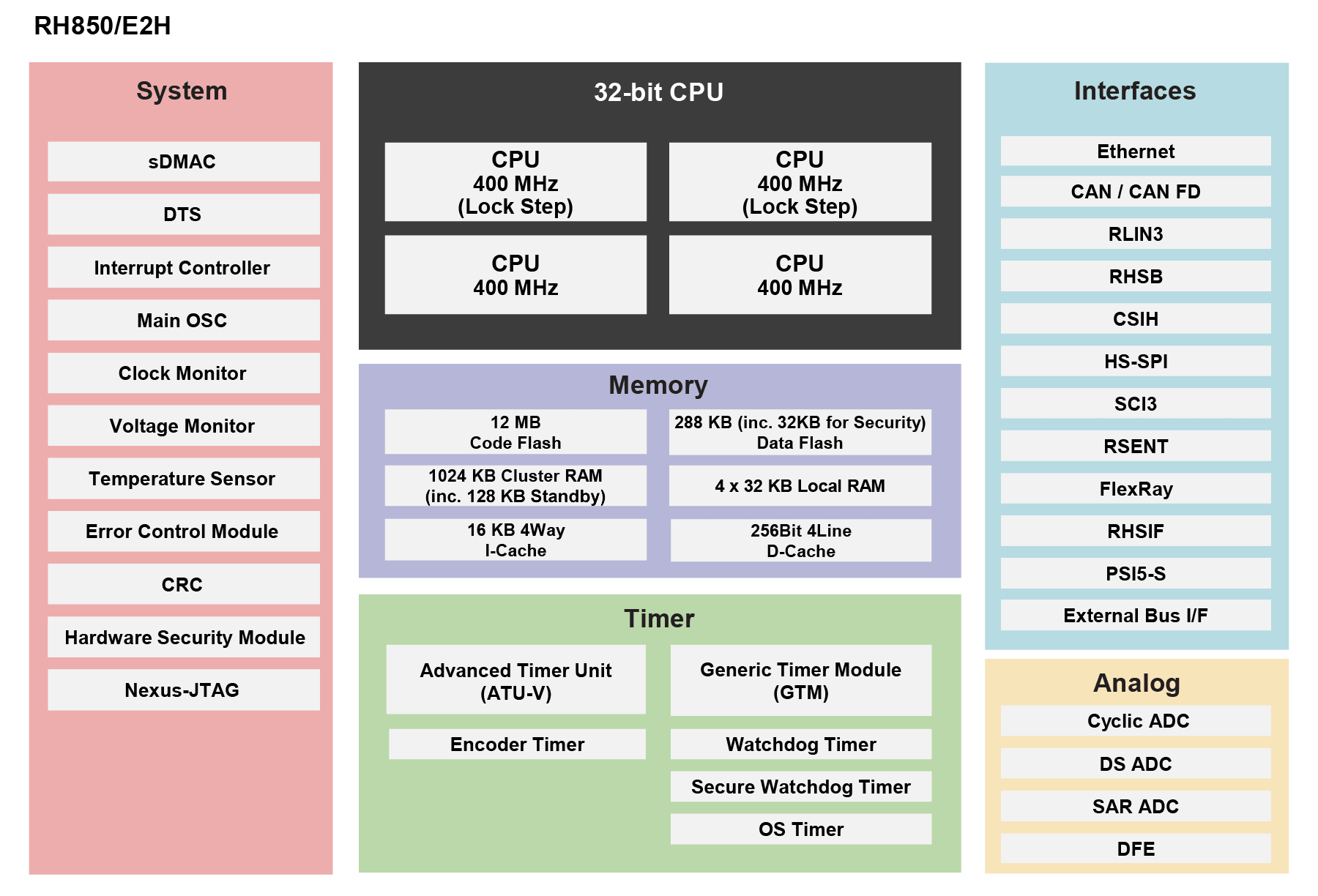

- Chip icon next to the right of the document icon in row: View the block diagram for this product
