Overview

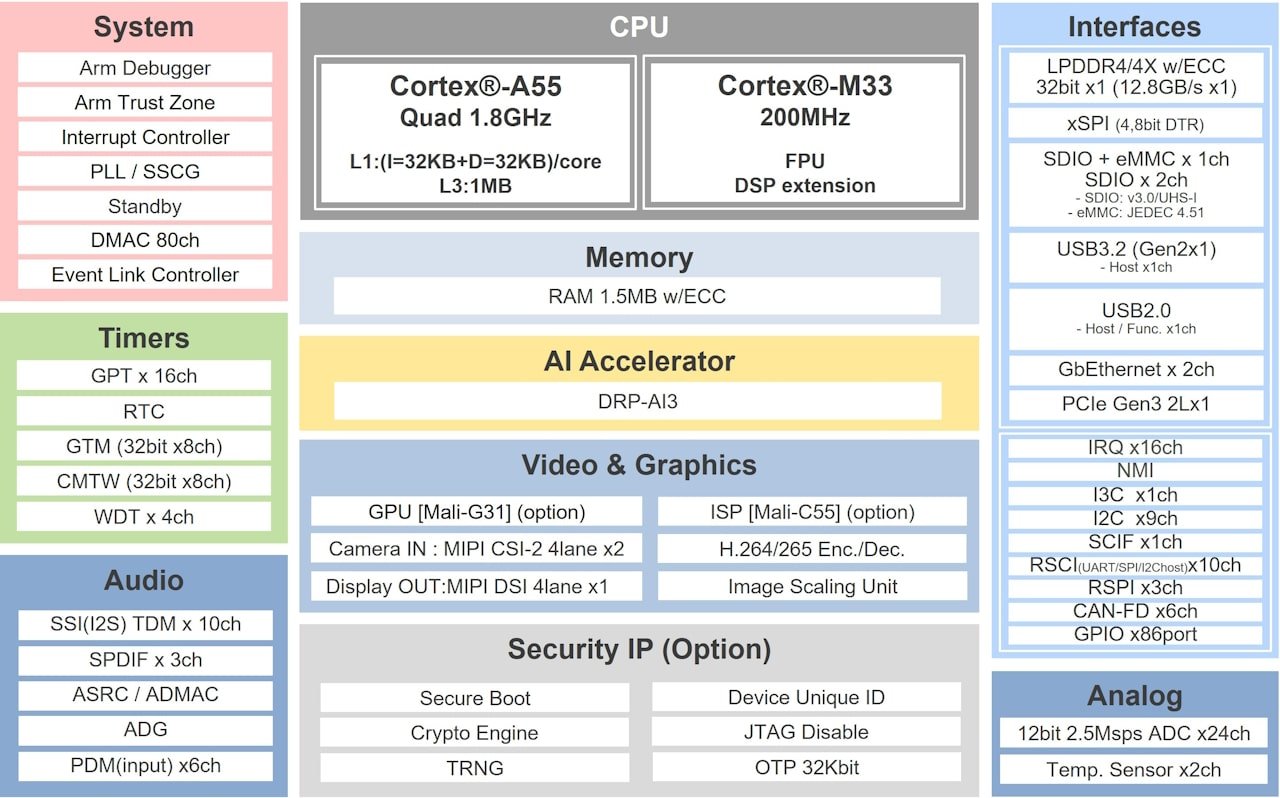

The RZ/V2N is a vision AI microprocessor (MPU) with Renesas' proprietary AI accelerator (DRP-AI3) supporting up to 15TOPS AI performance. Its CPUs are quad Arm^® Cortex^®-A55 (1.8GHz) and Arm Cortex-M33 (200MHz). The RZ/V2N is equipped with an ISP (Image Signal Processor) and dual-channel MIPI^® CSI-2^® camera interfaces for supporting dual camera signal processing, which is crucial for realizing vision systems. It is also equipped with high-speed interfaces such as PCIe^® and USB 3.2, allowing for the expansion of external devices. The RZ/V2N is an ideal microprocessor for applications requiring both low power consumption and advanced AI inference, such as DMS (Driver Monitoring System), monitoring cameras, mobile robots, and more.

Cortex-A55 (1.8GHz) x 4 cores
Cortex-M33 (200MHz) x 1 core
AI Accelerator DRP-AI
Arm Mali™-C55 ISP (option)
1.5MB on-chip SRAM
LPDDR4/LPDDR4X memory interface
Gigabit Ethernet 2ch
USB 2.0 interface 1ch (Host/Function)
USB 3.2 (Gen2) interface 1ch (Host only)
PCIe interface (Gen3/2-lane) 1ch
MIPI CSI-2 camera interface 2ch
CAN interface (CAN FD) 6ch
AD converter 24ch
BGA package (15mm x 15mm 840-pin 0.5mm pitch)

Dashboard camera/driver monitoring system
AI monitoring camera
AI people counting camera
AI visual inspection camera
Robot vacuum cleaner
Robot lawn mower
Smart doorbell
Access control

Documentation

Design & Development

Software & Tools

Software title	Software type	Company

RZ/V series AI Apps & AI SDK (GitHub) The AI SDK enables easy and rapid development of AI applications using Renesas' RZ/V series evaluation kits. Additionally, it offers a range of AI applications free of charge.	Software Package	Renesas
RZ/V2N AI Software Development Kit RZ/V2N AI Software Development Kit (AI SDK) is an AI application development environment for the RZ/V2N Evaluation Board Kit.	Software Package	Renesas
RZ/V2N ISP Support Package The RZ/V2N ISP Support Package provides a mechanism to realize camera control using input image information from the MIPI (Mobile Industry Processor Interface) on the RZ/V2N.	Software Package	Renesas
e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	Renesas
RZ Smart Configurator RZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.	Solution Toolkit	Renesas
DRP-AI Extension Pack (Pruning Tool) The DRP-AI Extension Pack provides a pruning function optimized for RZ/V2H and RZ/V2N, which can be used in combination with the training code written with the use of PyTorch or TensorFlow.	Imaging	Renesas
RZ/V Multi-OS Package RZ/V Multi-OS Package is the software package consisting of RZ/V Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M, Cortex-R Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution. Downloads RZ/V Getting Started with Flexible Software Package	Software Package	Renesas
DRP-AI Translator i8 [V1.04] This is an AI model conversion tool (DRP-AI Translator i8) for DRP-AI equipped products (INT8 architecture). This product is also used as an internal tool for DRP-AI TVM (required when installing DRP-AI TVM).	Software Package	Renesas
RZ MPU Security Package (Linux OS) Security Package for RZ MPUs. This package is used in combination with the Linux package provided for each device.	Software Package	Renesas
9 items

RZ/V2N-EVK

Evaluation

Learn More

RZ/V2N Quad-core Vision AI MPU Evaluation Kit

The RZ/V2N AI MPU evaluation kit (RTK0EF0186C03000BJ) is used to evaluate our RZ/V2N quad-core vision AI MPU. The kit includes a CPU board, expansion (EXP) board and...

Featured Documents:

RZ/V2N Evaluation Board Kit (Secure Type) User's Manual

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

Processing table

	Longevity	Carrier Type	Family Name	Series Name	Group Name	CPU Architecture	Main CPU	Sub CPU	Floating Point Unit	Bit Length	Program Memory (KB)	Data Flash (KB)	RAM (KB)	ECC SRAM	Pkg. Code	Lead Count (#)	Pkg. Type	Pitch (mm)	Pkg. Dimensions (mm)	Number of Supply Voltage(s) (#)	Supply Voltage (V)	I/O Ports	DMAC or DTC	DMA (ch)	Temperature Sensor (ch) (#)	Power-On Reset	Watchdog Timer (ch)	External Memory Bus (bit)	DRAM I/F	Accelerator	Temp. Range	External Interrupt Pins (#)	LVD or PVD	Operating Freq (Max) (MHz)	Operating Freq of Sub CPU (Max)	Sub-clock (32.768 kHz)	On-chip Oscillator	Ethernet speed	Ethernet (ch)	EtherCat (ch) (#)	USB Ports (#)	USB FS (host ch/device ch)	USB HS (host ch/device ch)	USB SS (host ch/device ch)	PCI Express (generation and ch)	SCI or UART (ch)	SPI (ch)	QSPI (ch)	OSPI (ch)	I2C (#)	I3C (ch)	CAN (ch)	CAN-FD (ch)	Wireless	IrDA	LIN (#)	SDHI (ch)	PWM Output (pin#)	32-Bit Timer (ch)	16-Bit Timer (ch) (#)	8-Bit Timer (ch)	Standby operable timer	Asynchronous General Purpose Timer / Interval Timer (ch)	RTC	16-Bit A/D Converter (ch)	14-Bit A/D Converter (ch)	12-Bit A/D Converter (ch)	10-Bit A/D Converter (ch)	24-Bit Sigma-Delta A/D Converter (ch)	16-Bit D/A Converter (ch)	12-Bit D/A Converter (ch)	10-Bit D/A Converter (ch) (#)	8-Bit D/A Converter (ch)	Analog Comparator (ch)	OPAMP (ch) (#)	PGA (ch)	Capacitive Touch Sensing Unit (ch)	Graphics LCD Controller	MIPI Interfaces (DSI) (ch)	MIPI Interfaces (CSI) (ch)	Camera I/F (Parallel)	Image Codec	2D Drawing Engine	Segment LCD Controller	SSI (ch)	Security & Encryption	Debug Interface	Moisture Sensitivity Level (MSL)	Price (USD) \| 1ku	3D GPU	Buy / Sample
(16) Active (0) Obsolete / NRND / LTB	Maximum The duration date of a product in the Product Longevity Program (PLP). Minimum The duration date of a product in the Product Longevity Program (PLP).	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	Maximum Minimum	Maximum Minimum	Maximum Data Flash memory size. Minimum Data Flash memory size.	Maximum Random access memory size. Minimum Random access memory size.	Yes	pkg_20143	Maximum Minimum	FC-BGA	Maximum Spacing between package leads, from center to center. Minimum Spacing between package leads, from center to center.	15 x 15 x 2.3	Maximum Minimum	Maximum Power supply voltage or voltage range of the device. Minimum Power supply voltage or voltage range of the device.	Maximum Number of input/output ports. Minimum Number of input/output ports.	DMAC	Maximum Minimum	Maximum Minimum	No	Maximum Minimum	32	LPDDR4-3200 LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	Maximum Minimum	No	Maximum Operating frequency range. Minimum Operating frequency range.	Maximum Minimum	No	Yes	10M/100M/1G	Maximum Minimum	Maximum Minimum	Maximum Minimum	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Number of I2C channels. Minimum Number of I2C channels.	Maximum Minimum	Maximum Number of controller area netowork (CAN) interface channels. Minimum Number of controller area netowork (CAN) interface channels.	Maximum Minimum	No	No	Maximum Number of local interconnect network (LIN) channels. Minimum Number of local interconnect network (LIN) channels.	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	No	Maximum Minimum	Yes	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	Maximum Minimum	No	Maximum Minimum	Maximum Minimum	No	H.264/H.265	No	No	Maximum Minimum	AES GHASH No RSAECC SHA-1 SHA-224 SHA-256 TRNG	JTAG	3	Maximum Price estimate for 1,000 units; pricing is subject to change. Minimum Price estimate for 1,000 units; pricing is subject to change.	Mali-G31	Buy / Quote Get Samples
Part Number	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator					Logical Operator	Logical Operator		Logical Operator		Logical Operator				Logical Operator			Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator			Logical Operator	Logical Operator	Logical Operator				Logical Operator	Logical Operator	Logical Operator	Logical Operator									Logical Operator	Logical Operator							Logical Operator		Logical Operator														Logical Operator			Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator
R9A09G056N41GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3			Buy / Quote
R9A09G056N42GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3		Mali-G31	Buy / Quote
R9A09G056N43GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3			Buy / Quote
R9A09G056N44GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3		Mali-G31	Buy / Quote
R9A09G056N45GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3			Buy / Quote
R9A09G056N46GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3		Mali-G31	Buy / Quote
R9A09G056N47GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3			Buy / Quote
R9A09G056N48GBG#BC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3		Mali-G31	Buy / Quote
R9A09G056N41GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3			Buy / Quote
R9A09G056N42GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3		Mali-G31	Buy / Quote
R9A09G056N43GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3			Buy / Quote
R9A09G056N44GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	No	JTAG	3		Mali-G31	Get Samples, Buy / Quote
R9A09G056N45GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3			Buy / Quote
R9A09G056N46GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3		Mali-G31	Buy / Quote
R9A09G056N47GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3			Buy / Quote
R9A09G056N48GBG#AC0 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	Tray	RZ	RZ/V	V2N	Arm v8.2-A	Cortex-A55 x 4	Cortex-M33	Double/Single/Half	64	0	0	1536	Yes	pkg_20143	840	FC-BGA	0.5	15 x 15 x 2.3	7	3.135 - 3.465	86	DMAC	80	2	No	4	32	LPDDR4-3200, LPDDR4X-3200 (32-bit)	DRP-AI3	Tj = -40 to +125°C	16	No	1800	200	No	Yes	10M/100M/1G	2	0	2	( 2 / 1 )	( 2 / 1 )	( 1 / 0 )	PCIe (Rev.3.0 2Lane) x 1 ch	10	3	1	1	9	1	0	6	No	No	0	3	0	32	0	0	No	16	Yes	0	0	24	0	0	0	0	0	0	0	0	0	0	No	1	2	No	H.264/H.265	No	No	0	AES, GHASH, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	JTAG	3		Mali-G31	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Videos & Training

RZ/V2N Quad-Core 15TOPS Vision AI MPU Overview

The RZ/V2N is a vision AI microprocessor (MPU) featuring Renesas' proprietary AI accelerator (DRP-AI3), delivering up to 15TOPS AI performance with high power efficiency in a compact design. Its ability to support two-camera connections greatly improves AI accuracy and can simultaneously process different captured images with AI, making it ideal for AI camera and robotics applications.
