Overview
Description

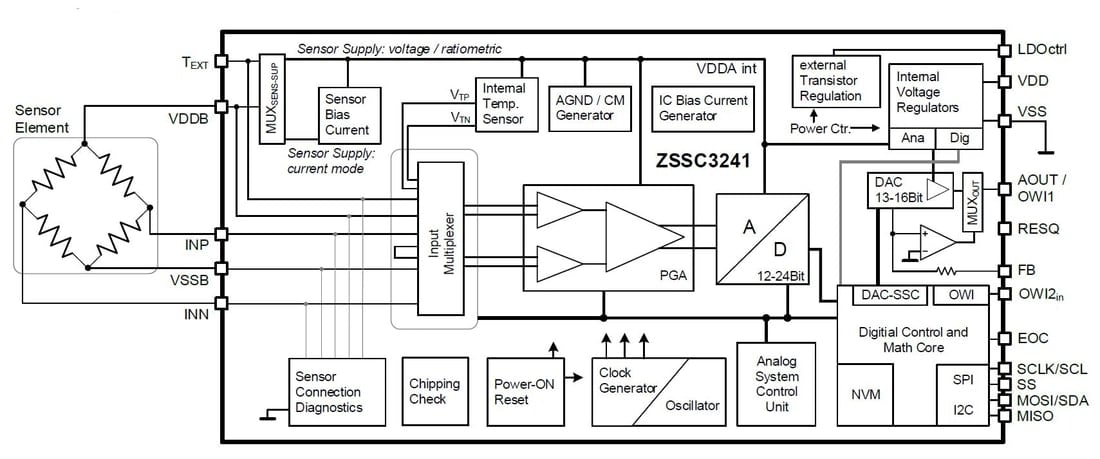

The ZSSC3241 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3241 provides best-in-class sensor-element adaptability, and it is suitable for bridge and half-bridge sensors, as well as external voltage-source element and single-element sensors in multiple configurations. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit math core running a correction algorithm with calibration coefficients stored in a non-volatile, reprogrammable memory. A second, separate compensation for gain and offset, and digital-output independent analog-output correction is supported for optimum adaptability of dual-domain (analog and digital) sensor solutions. The programmable, integrated sensor front-end allows optimally applying various sensors for a broad range of applications.
New functions vs. ZSSC3240
- Additional AFE configuration options
- Programmable DAC output clipping
- Separate AOUT post-scaling math
- Programmable hysteresis for EoC comparator with 2 programmable thresholds
- Optimized EMC behavior
- Same die size & pad layout and QFN24-pin-out like ZSSC3240
- EEPROM with minor changes/extensions vs. ZSSC3240
- 99% backward compatible to ZSSC3240
Features
- Digital communication and calibration interfaces SPI, I2C, OWI
- Supports various sensor element configurations
- On-chip temperature sensor
- External temperature sensing supported
- Advanced 16-bit DAC output with post calibration option
- (0V to 1V) or (0V to 5V) absolute voltage output
- VDD- ratiometric voltage output
- 4mA to 20mA current-loop output
- 0V to 10V absolute-voltage output
- Programmable measurement scheduler
- DAC Output Clipping
- Self-diagnostic coverage and system safety
- On-chip diagnostics
Comparison
Applications
- Calibrated, continuously operating sensors with digital interface and/or analog output: (absolute or ratiometric) voltage or current loop output
- Enables smart, digital sensors for energy-efficient solutions
- Pressure, flow, and level sensing
- Industrial applications; e.g. process/factory automation
- Consumer / white goods, e.g. HVAC, weight scales
- Medical applications, e.g. blood pressure, continuous smart health monitors
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.57 MB | |
| Application Note | PDF 1014 KB | |
| White Paper | PDF 385 KB | |
3 items
|
||
Design & Development
Software & Tools
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 304μm thickness, with inking | WAFER | 0 | -40 to +125°C | Wafer | 1 | |||
| 304μm thickness, no inking | WAFER | 0 | -40 to +125°C | Wafer | 1 | |||
| 13-inch Reel | VFQFPN | 24 | -40 to +125°C | Reel | 1 | Get Samples, | ||
| 7-inch Reel | VFQFPN | 24 | -40 to +125°C | Reel | 1 | 2.997 | ||
| 304μm thickness with inking, pre-configured for current loop | WAFER | 0 | -40 to +125°C | Wafer | 1 | |||
| 304μm thickness, no inking, pre-configured for current loop | WAFER | 0 | -40 to +125°C | Wafer | 1 | |||
| 13-inch Reel, pre-configured for current loop | VFQFPN | 24 | -40 to +125°C | Reel | 1 | Get Samples, | ||
| 7-inch Reel, pre-configured for current loop | VFQFPN | 24 | -40 to +125°C | Reel | 1 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
ZSSC3241 High-End Sensor Signal Conditioner Overview
Renesas’ ZSSC3241 is a powerful Sensor Signal Conditioner (SSC) with analog and digital output, on-chip diagnostics, industrial voltage range and an embedded DSP core. The solution targets high-end applications such as industrial, medical, and consumer sensing for a wide variety of sensor platform designs.
Video List
News & Blog Posts
| Flexible Interface of the ZSSC3241 Enables Bridge as Temperature Sensor | Blog Post | May 24, 2023 |
