概要

The 8L30210 is a low skew, 1-to-10 LVCMOS/LVTTL fanout buffer. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines.

The 8L30210 is characterized at full 3.3V and 2.5V, mixed 3.3V/2.5V, 3.3V/1.8V, 3.3V/1.5V, 2.5V/1.8V, and 2.5V/1.5V output operating supply modes. The input clock is selected from two differential clock inputs or a crystal input. The differential input can be wired to accept a single-ended input. The internal oscillator circuit is automatically disabled if the crystal input is not selected.

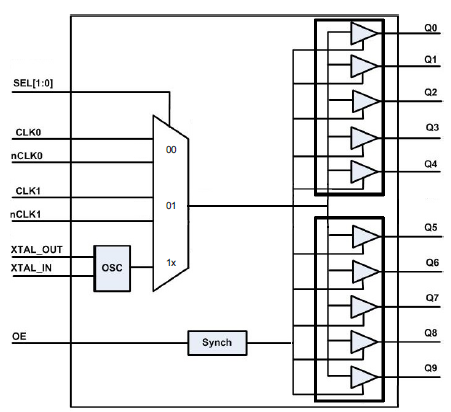

8L30210 - Block Diagram
8L30210 - Pin Assignment
8L30210 - Block Diagram
8L30210 - Pin Assignment
  • Ten LVCMOS/LVTTL outputs up to 200MHz
  • Differential input pair can accept the following differential input levels: LVPECL, LVDS, HCSL
  • Crystal oscillator interface
  • Crystal input frequency range: 10MHz to 40MHz
  • Additive RMS phase jitter: 30fs (typical)
  • Power supply modes:
    Core/Output
    3.3V/3.3V
    2.5V/2.5V
    3.3V/2.5V
    3.3V/1.8V
    3.3V/1.5V
    2.5V/1.8V
    2.5V/1.5V
  • Supports case temperature up to 105 °C
  • -40 °C to 85 °C ambient operating temperature
  • Lead-free (RoHS 6) packaging

ドキュメント

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    8L30210NLGI
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		VFQFPN 32 I Yes Tray 3 サンプルを入手,
    8L30210NLGI8
    circleアクティブ
    memory
    view_in_ar
    		VFQFPN 32 I Yes Reel 3
