概要

The QS3VH244 HotSwitch is a high bandwidth, 8-bit bus switch with very low ON-resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of the LVTTL-compatible xG signal for bidirectional data flow with no added delay or ground bounce. The combination of near-zero propagation delay, high OFF impedance, and overvoltage tolerance makes the QS3VH244 ideal for high-performance communications applications. The QS3VH244 operates from -40 °C to +85 °C.

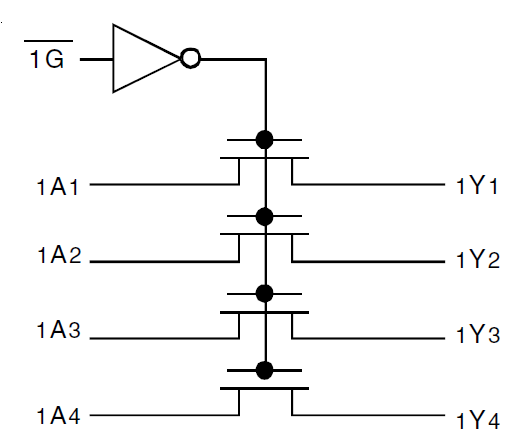

QS3VH244 - Block Diagram
QS3VH244 - Block Diagram
  • N-channel FET switches with no parasitic diode to VCC
  • Isolation under power-off conditions
  • No DC path to VCC or GND
  • 5V tolerant in OFF and ON state
  • 5V tolerant I/Os
  • Low RON - 4Ω typical
  • Flat RON characteristics over operating range
  • Rail-to-rail switching 0V to 5V
  • Bidirectional dataflow with near-zero delay: No added ground bounce
  • Excellent RON matching between channels
  • VCC operation: 2.3V to 3.6V
  • High bandwidth - Up to 500MHz
  • LVTTL-compatible control Inputs
  • Undershoot clamp diodes on all switch and control inputs
  • Low I/O capacitance, 4pF typical
  • Available in 20-pin QSOP and TSSOP packages

アプリケーション

  • Hot-swapping
  • 10/100 Base-T, Ethernet LAN switch
  • Low distortion analog switch
  • Replaces mechanical relay
  • ATM 25/155 switching
  • Bus switching and isolation

ドキュメント

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    QS3VH244PAG
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 TSSOP 20 C Yes Tube 1 1.066 サンプルを入手,
    QS3VH244PAG8
    circleアクティブ
    memory
    view_in_ar
    今すぐ購入する
    		TSSOP 20 C Yes Reel 1
    QS3VH244QG8
    circleアクティブ
    memory
    view_in_ar
    		QSOP 20 C Yes Reel 1
