Evaluation Kit for RA8D1 MCU Group
The EK-RA8D1 evaluation kit enables users to effortlessly evaluate the features of the RA8D1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Overview
Description
The Renesas RA8D1 MCU group features the industry’s first 32-bit graphics-enabled microcontrollers (MCUs) based on the Arm® Cortex®-M85 (CM85) core, delivering breakthrough performance of over 3000 CoreMark points at 480MHz and superior graphics capabilities that enable high resolutions display and Vision AI applications. These are general-purpose MCU devices and address diverse high-performance and compute-intensive applications in Industrial Automation, Home Appliances, Smart Home, Consumer, Building/Home Automation, and Medical/Healthcare market segments.
The RA8D1 MCUs integrate the high-performance CM85 core with large memory, and a rich peripheral set including a high-resolution TFT-LCD controller with parallel RGB and MIPI-DSI interfaces, 2D drawing engine, 16-bit camera interface, and multiple external memory interfaces, optimized to address the needs of diverse graphics and Vision AI applications. These MCUs are available in 176 and 224-pin packages. Secure Element-like functionality is built-in with advanced cryptographic Security IP, immutable storage, a true secure boot, and tamper protection, for truly secure IoT.
The RA8D1 MCUs are fully supported by the Flexible Software Package and a comprehensive set of hardware and software development tools.

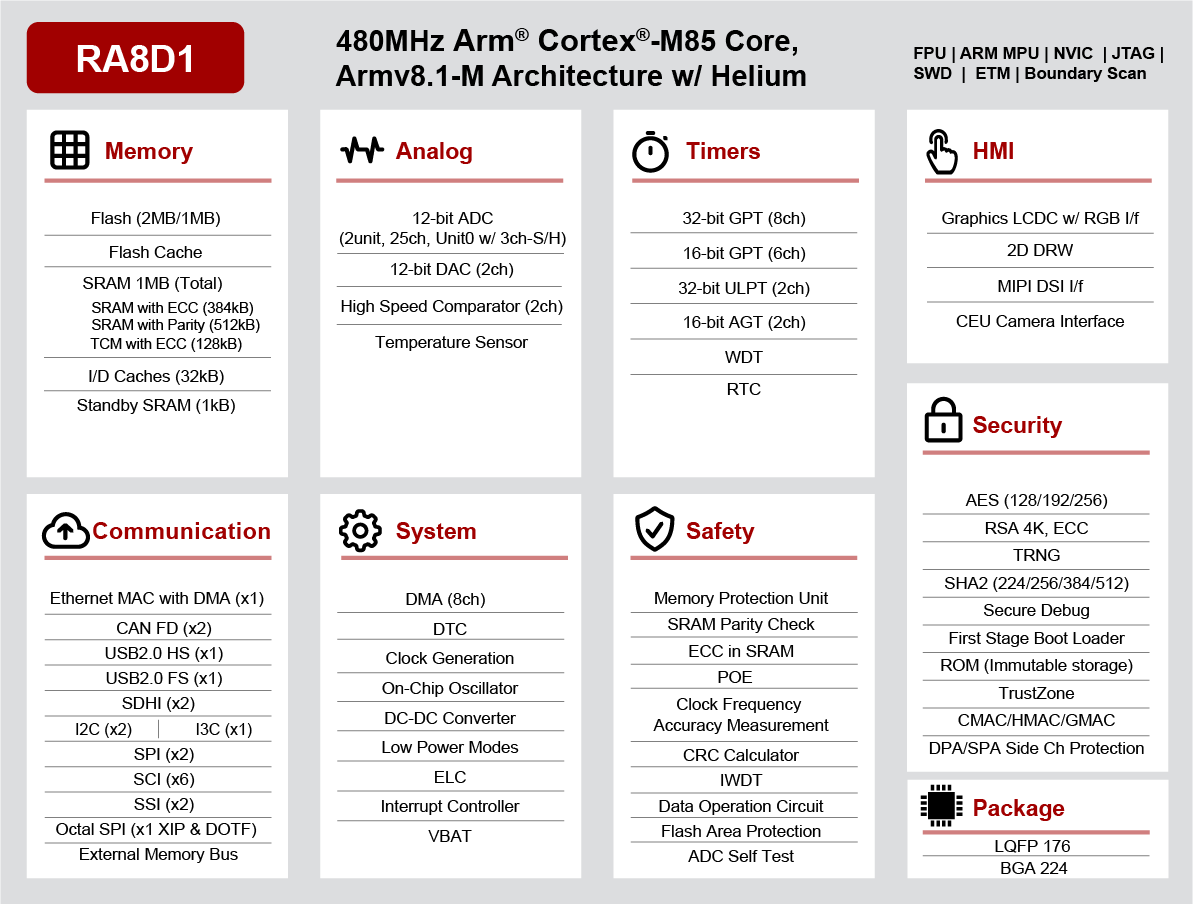

Features
- 480MHz Arm® Cortex®-M85 with Helium™ MVE
- 1MB - 2MB Flash memory and 1MB of SRAM including TCM
- 32KB I/D Caches and 12KB Data Flash
- Graphics LCD Controller with RGB and MIPI-DSI I/Fs
- 2D Drawing Engine, 16-bit CEU Camera I/F
- 32/16/8-bit external memory interfaces (CS/SDRAM)
- ARMv8-M TrustZone® Security
- Renesas Security IP (RSIP-E51A)
- On-chip immutable ROM for First Stage Bootloader
- xSPI compliant Octal SPI with XIP & DOTF
- USB 2.0 HS and FS
- 2ch of CAN-FD
- Ethernet controller with DMA
- 32-bit & 16-bit Timers, 32-bit Ultra-Low-Power Timer
- 12-bit ADC and 12-bit DAC
- High-Speed Analog Comparators
- SCI (UART, Simple SPI, Simple I2C), SDHI, SSI
- SPI/ I2C/I3C multi-master interface
- Scalable from 176-pin to 224-pin packages
Comparison
Applications
- Industrial Applications (Industrial HMI, Machine Vision)
- Consumer (Video Doorbells, Exercise Equipment, Security Cameras, Appliances)
- Smart Home and Building Automation (Thermostats, Security Panels, Home Hubs)
- Office Automation (Printer Display, Barcode Scanner, QR Code Reader, Fingerprint Scanner)
- Healthcare (Patient Monitors, BP Monitors, Imaging Equipment)
- Vision AI Applications (People Detection, Image Classification, Object Detection)
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RA Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
| SEGGER emWin GUI Library for Renesas RA Products SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
|
Imaging | SEGGER |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| e² studio - information for RA Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
| IAR Embedded Workbench for Arm IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
|
IDE and Coding Tool | IAR Systems |
| Arm® Keil® MDK Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
|
IDE and Coding Tool | Arm® Keil® MDK Arm® |
| Reality AI Utilities Plug-in module for Renesas e² studio
|
Solution Toolkit | Renesas |
|
13 items
|
||
Sample Code
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Carrier Type |
CPU |
Operating Freq (Max) (MHz) |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
ECC SRAM |
Lead Count (#) |
Pkg. Type |
Pkg. Dimensions (mm) |
Pitch (mm) |
I/O Ports |
Supply Voltage (V) |
Temp. Range |
External Memory Bus (bit) |
Floating Point Unit |
DMAC or DTC |
External Interrupt Pins (#) |
USB FS (host ch/device ch) |
USB HS (host ch/device ch) |
Ethernet (ch) |
CAN (ch) |
CAN-FD (ch) |
SCI or UART (ch) |
SPI (ch) |
I2C (ch) |
I3C (ch) |
LIN (#) |
SSI (ch) |
QSPI Interface (#) |
OSPI (ch) |
SDHI (ch) |
Capacitive Touch Sensing Unit (ch) |
Segment LCD Controller |
Graphics LCD Controller |
MIPI Interfaces (DSI/CSI) |
Camera I/F (Parallel) |
Image Codec |
2D Drawing Engine |
Wireless |
IrDA |
32-Bit ULPT (ch) |
32-Bit High Res Timer (ch) |
PWM Output (pin#) |
32-Bit Timer (ch) |
16-bit High Res Timer (ch) |
16-bit Enhanced Timer (ch) |
16-Bit Timer (ch) (#) |
8-Bit Timer (ch) |
Asynchronous General Purpose Timer (ch) |
Watchdog Timer (ch) |
24-Bit Sigma-Delta A/D Converter (ch) |
16-Bit A/D Converter (ch) |
14-Bit A/D Converter (ch) |
12-Bit A/D Converter (ch) |
10-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
8-Bit D/A Converter (ch) |
High-Speed Analog Comparator (ch) |
Low-Power Analog Comparator (ch) |
PGA (ch) |
OPAMP (ch) (#) |
Temperature Sensor (ch) (#) |
RTC |
LVD or PVD |
Security & Encryption |
Power-On Reset |
Sub-clock (32.768 kHz) |
On-chip Oscillator |
Debug Interface |
Replacement Product |
Replacement Remark |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 480 | 1024 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 165 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 0 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | Get Samples, | ||||
| TBD | Bulk (Tray) | Arm Cortex-M85 | 480 | 1024 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 165 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 0 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | 13.04 | ||||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 480 | 1024 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 174 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 1 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | Get Samples, | ||||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 400 | 1024 | 12 | 1024 | Yes | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 119 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 0 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 24 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | 10.86 | Get Samples, | |||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 400 | 1024 | 12 | 1024 | Yes | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 128 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 1 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 24 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | 11.51 | Get Samples, | |||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 480 | 2048 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 165 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 0 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | Get Samples, | ||||
| TBD | Bulk (Tray) | Arm Cortex-M85 | 480 | 2048 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 165 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 0 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | 12.65 | ||||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 480 | 2048 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 174 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 1 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | Get Samples, | ||||
| TBD | Bulk (Tray) | Arm Cortex-M85 | 480 | 2048 | 12 | 1024 | Yes | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 174 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 1 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 25 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | |||||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 400 | 2048 | 12 | 1024 | Yes | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 119 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 0 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 24 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | 11.63 | Get Samples, | |||
| TBD | Full Carton (Tray) | Arm Cortex-M85 | 400 | 2048 | 12 | 1024 | Yes | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 128 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 1 / 1 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 2 | 0 | 1 | 2 | 0 | No | RGB888 | 1 | 16-bit | No | Yes | No | No | 2 | 0 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 24 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | Yes | Yes | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | Yes | Yes | Yes | JTAG/SWD | 3 | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
