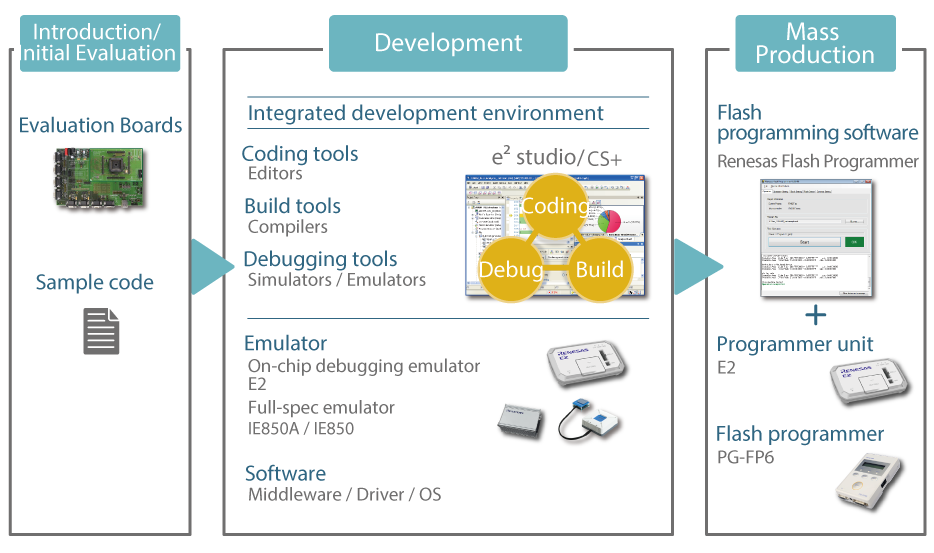

RH850 Family Software & Tools

Renesas integrated development environments provide powerful support for developing applications to run on the RH850 family devices.

e² studio

Learn more about e² studio

This product is suitable for users who are conversant with the Eclipse environment and for those who want an environment for collaborative development with other users of the e² studio, including those at distant locations. You can use it with the E2 emulator or the E1 emulator from Renesas to debug programs for RH850 microcontrollers that have been built by using Multi^® from Green Hills Software Inc., as well as using the general plug-in features that have evolved with the open-source Eclipse IDE.

CS+

Learn more about CS+
Download and try a free evaluation version of CS+

This product brings together in a single package all of the basic software tools needed for software development, from coding through building and debugging. There is also a feature that displays information on variables, functions, etc., in an easy-to-understand format. A full selection of tutorials is available, allowing even beginners to get started using this integrated development environment right away.

Note: CS+ is not generally promoted in the U.S. and Europe. For customers in the U.S. and Europe who are interested in CS+, please contact our regional marketing departments for details.

Real-Time OS for the RH850 Family (RI850V4 V2)

Learn more about the RI850V4 V2 real-time OS for the RH850 Family

• Conformance with µITRON 4.0, an industry standard
• Compact design suitable for ROM storage
• Full complement of service calls
• Excellent real-time performance (interrupt response time, task switching time)
• Support for convenient functions when used in conjunction with the CS+ integrated development environment (automatic setting of options required to build the OS, display of the state of objects managed by the OS such as tasks and semaphores, graphical display of task operation history and service call issue history)

High Functional On-Chip Debugging Emulator E2

Also available as a flash memory programmer.

Learn more about the E2 Emulator

A high functionality model for more efficient development.

• High-speed download up to twice as fast as E1
• CAN Communication Time Measurement Solution (for CS+ only)
• Hot plug-in function available without an optional adapter
• Board interface compatible with that of E1
• Support for RH850 Family devices that will include the next-generation G4MH core, such as MCUs in the RH850/E2x Series.

A high-performance full-spec emulator makes it possible to use debugging capabilities, including an event, performance measurement and high-capacity trace acquisition.

• Support for RH850/E2M group
• Support for RH850/U2A16 group
• Collect long-term program execution histories
• Use IE850A and E2 emulator on the same user system

A high-performance full-spec emulator makes it possible to use debugging capabilities, including an event, performance measurement and high-capacity trace acquisition.

• Support for RH850/E1x series
• Support for RH850/D1x series
• Acquire high-capacity trace
• Simply switch to the pod for the target device to accommodate a new MCU model

Renesas Flash Programmer

Learn more about the Renesas Flash Programmer (Programming GUI)
Download and try a free evaluation version

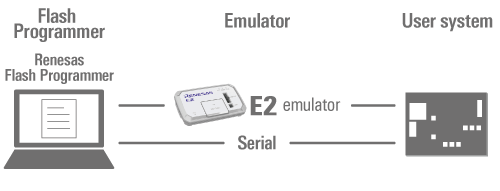

• PC-controlled programming via the E2 emulator, E1 emulator, a serial connection
• Easier creation of projects
• Ability to cooperate with other software by batch processing
• Programming a unique code to a designated area of flash memory

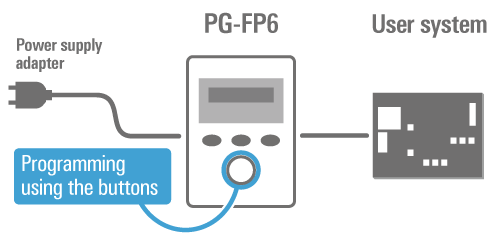

Programming Controlled by a PC or Stand-Alone Programming

Flash programmer

PG-FP6

Learn more about the PG-FP6
Download the latest Programming GUI (FP6 Terminal)

• Standalone programming
• PC-controlled programming using dedicated GUI (FP6 Terminal)
• Up to 8 savable programming environments
• Optimized for production line programming (command control or remote control)
• Programming a unique code to a designated area of flash memory
