Evaluation Board Kit for RZ/N2H
The Evaluation Board Kit for RZ/N2H is an evaluation and development kit for the RZ/N2H MPU. Since it has an on-board emulator, you can start evaluation by simply...
Featured Documents:
Overview
Description

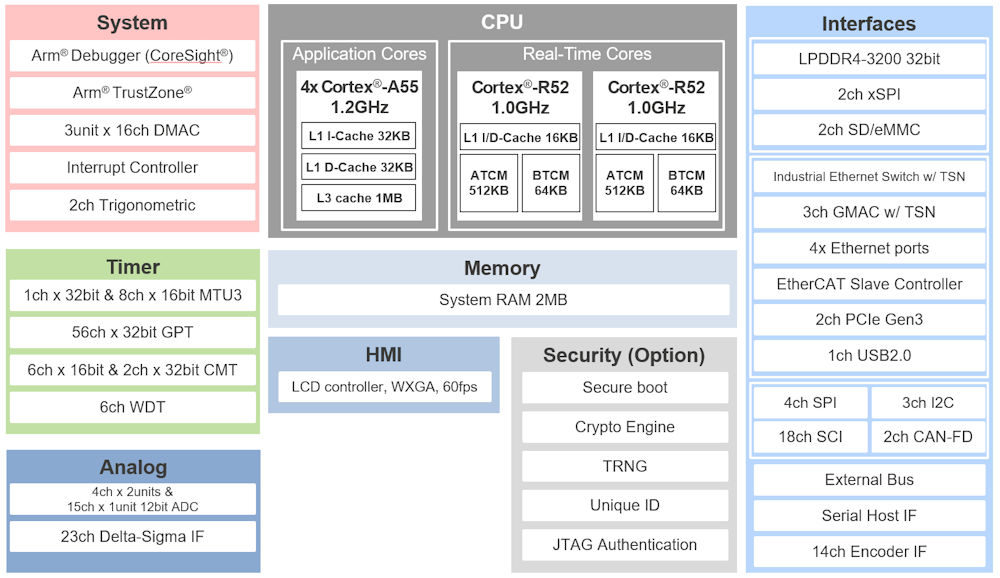

RZ/N2H is an advanced high-end MPU that provides high-speed and real-time operation with sophisticated network functionality supporting controller and device industrial Ethernet, meeting the requirements of programmable logic controllers (PLCs) and motion controllers. It has the processing power and peripheral functions required for controllers such as industrial robots, motion controllers, and PLCs. Quad Arm® Cortex®-A55 CPU cores (1200MHz) for application processing and two Arm Cortex-R52 CPU cores (1000MHz) for real-time control, as well as network functions compatible with Time-Sensitive Networking (TSN) and various industrial Ethernet protocols such as EtherCAT, EtherNet/IP, and PROFINET RT/IRT. Equipped with 3 GMACs and enables multiple networks simultaneously. Equipped with a large-capacity memory interface of LPDDR4, and a large-capacity non-volatile memory interface of SD/eMMC, it supports application-rich operating systems such as Linux. Two lanes of PCIe Gen3, 2 channels of xSPI, and other high-speed interfaces are also available. Multi-axis motor control can be achieved with a single chip, reducing the number of BOM components, thus contributing to reduced power consumption and board size.
Features
- CPU: Arm Quad Cortex-A55, maximum operating frequency 1200MHz
- CPU: Arm Dual Cortex-R52, maximum operating frequency 1000MHz
- Memory: Tightly coupled memory 576KB (with ECC) per R52 core, internal RAM 2MB (with ECC)
- LPDDR4 SDRAM memory interface
- Trigonometric function accelerator
- 3-port Gigabit Ethernet switch with TSN and 3unit Ethernet GMAC
- Industrial Ethernet: EtherCAT®, PROFINET® RT/IRT, EtherNet/IP™, etc.
- Encoder interface: 14ch (supports A-format™, EnDat, BiSS®, HIPERFACE® DSL, FA-CODER）
- Up to 6-axis motor control
- Octa/Quad SPI support
- ADC: 12-bit x 3 units
- ΔΣ I/F: 23ch
- Package: 576-pin FCBGA
- Voltage: 0.8V core, 1.1V DDR 1.8V PLL, OSC, USB I/O 3.3V GPIO, xSPI, RMII, MII
Comparison
Applications
- PLC
- Motion controller
- AGV/AMR
- Multi-axis servo
- CNC
- Ethernet switch
- Gateway
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | Renesas |
| RZ/T2H and RZ/N2H Linux Software Package [V5.10-CIP] Linux software packages for RZ/T2H and RZ/N2H Groups.
|
Software Package | Renesas |
| RZ/T and RZ/N Multi-OS Package The RZ/T Multi-OS Package Package and RZ/N Multi-OS Package are software packages for developing multi-OS solutions.
|
Software Package | Renesas |
| RZ MPU Security Package (Linux OS) Security Package for RZ MPUs. This package is used in combination with the Linux package provided for each device.
|
Software Package | Renesas |
| RZ Smart Configurator RZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
6 items
|
||
Sample Code
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| RZ/N | Cortex-A55 x 4 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x4 + Cortex-R52 x2 | 3 | |||
| RZ/N | Cortex-A55 x 2 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x2 + Cortex-R52 x2 | 3 | |||
| RZ/N | Cortex-A55 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x2 + Cortex-R52 x2 | 3 | |||
| RZ/N | Cortex-A55 x 4 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x4 + Cortex-R52 x2 | 3 | |||
| RZ/N | Cortex-A55 x 2 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x2 + Cortex-R52 x2 | 3 | |||
| RZ/N | Cortex-A55 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x1 + Cortex-R52 x2 | 3 | |||
| RZ/N | Cortex-A55 x 4 | 1200 | 64 | Cortex-R52 x 2 | 2048 | LPDDR4-3200 | No | No | 2ch), PCIe(Gen3 | 0 | 10/100M/1G x 4 ch | USB2.0 x 1 ch (1H/F/OTG) | 287 | FBGA | 576 | Tj = -40 to +125°C | N/A | 0 | Yes | Yes | 16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch | 12bit x 23-ch | Display Function | 3.135 - 3.465 | Cortex-A55 x4 + Cortex-R52 x2 | 3 | Get Samples, |
