SmartBond TINY DA14535 Bluetooth Low Energy 5.3 SoC Development Kit Pro
The DA14535-00FXDEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14535 SmartBond TINY™ SoC includes a motherboard, daughterboard, and cables. This kit is...
Overview
Description

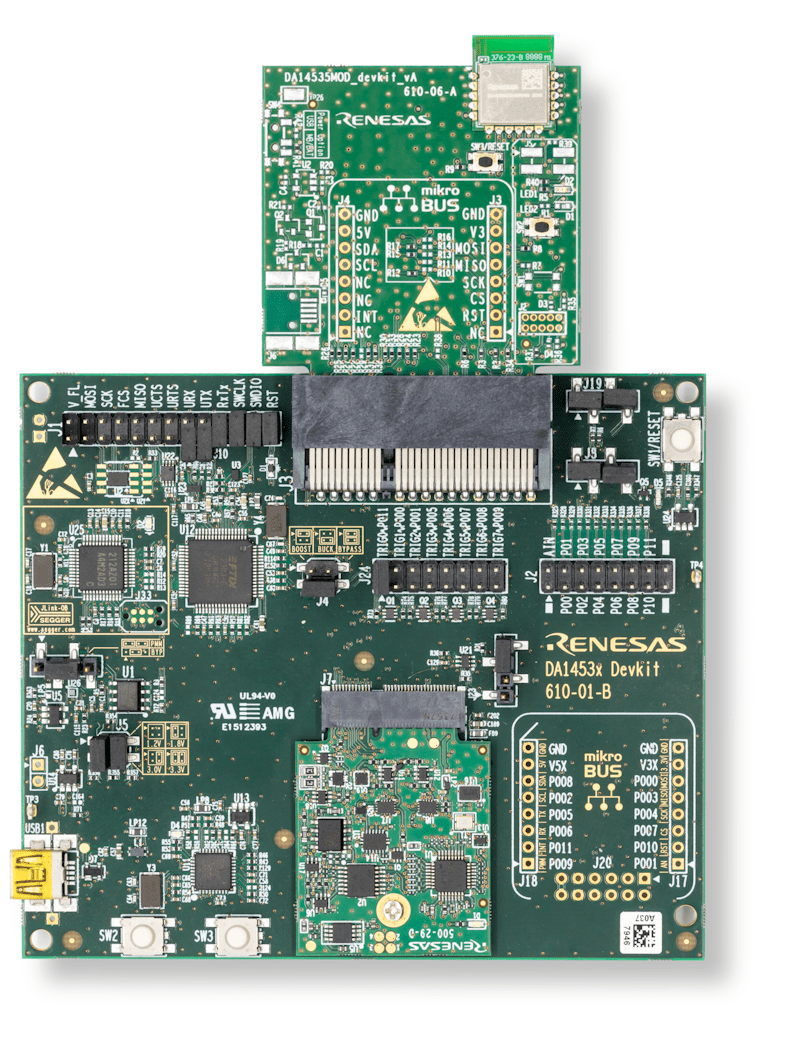

The DA14535MOD-00DEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14535 SmartBond TINY™ module includes a motherboard, daughterboard, 3 module samples, and cables. This kit is primarily used for software application development and power measurements.
The DA14535 daughterboard features an integrated semiconductor DA14535 SmartBond TINY module. The DA14535 SmartBond TINY module daughterboard has the capability of mounting a MikroBUS™ module. The purpose of this daughterboard is to provide users with the following capabilities:
- Access to the DA14535 SmartBond TINY module, via UART or JTAG
- Connecting MikroBUS module
- User access to general-purpose LED(s)
- User access general purpose button(s)
- Reset button
- Test points for all output signals
- Stand-alone operation
The DA14535 SmartBond TINY module, based on the world’s smallest and lowest power Bluetooth 5.3 System-on-Chip, brings the DA14535 SoC advantages to an integrated module. It just requires a power supply and a printed circuit board to build a Bluetooth application.
Features
- Motherboard, DA14535MOD daughterboard, 3 module samples, USB cable, and Quick Start Guide
- Integrated power measurement module
- Embedded printed antenna
- RF port output (connector not included)
- Support for coin cell battery (battery holder not included)
- Header for MikroBUS or Pmod™
- SEGGER J-Link debugger
- Globally certified module
- Fully compliant with Bluetooth v5.3
Applications
Applications
- Rapid/simple ‘bolt-on’ to upgrade (any) product to include Bluetooth LE (enabling smartphone application control)
- Disposables
- Beacons
- Proximity tags and trackers
- Wireless sensor nodes
- Fitness trackers
- Consumer health
- Smartwatches
- Human interface devices (HID)
- Stylus pens
- Keyboards
- Mouse devices
- Trackpads
- Toys
