SmartBond TINY DA14535 Bluetooth Low Energy 5.3 SoC Development Kit Pro
The DA14535-00FXDEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14535 SmartBond TINY™ SoC includes a motherboard, daughterboard, and cables. This kit is...
Overview
Description

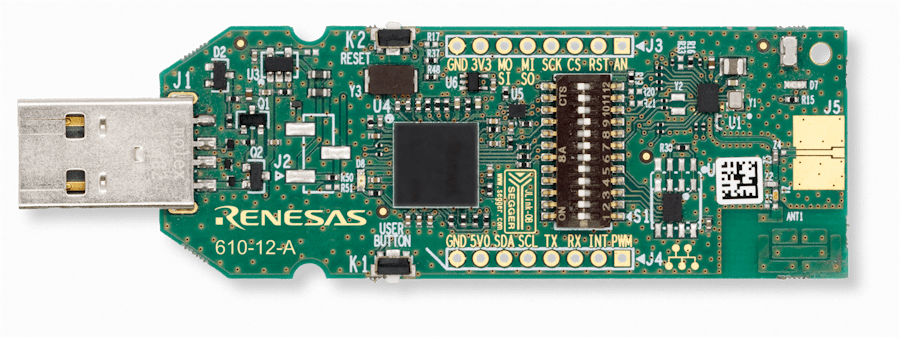

The DA14535-00FXDEVKT-U is a Bluetooth® Low Energy USB software development kit for the DA14535 SmartBond TINY™ SoC. It gives you all the flexibility to develop applications in a small and portable form factor.
This kit offers a low-cost development board with basic functionality. The development kit is implemented on a single PCB. The purpose of this cost-effective USB kit is to provide users with the capability for:
- Software development
- Programming DA14535 via JTAG or UART using the DA14535 SDK
- Connecting MikroBUS™ modules
The DA14535 is an ultra-low power Bluetooth 5.3 SoC with an Arm® Cortex® M0+, 64kB of RAM, and 12kB of OTP that is specified for operation at 105 °C. The DA14535 is available in a 24-pin FCGQFN package.
Features
- USB type A male connector
- Option to power from 3V external battery
- 2Mbit SPI flash IC
- 32MHz crystal
- JTAG and UART interface over USB
- Pre-loaded firmware
Applications
Applications
- Medical applications
- Disposables
- Beacons
- Proximity tags and trackers
- Wireless sensor nodes
- Smartwatches
- Human interface devices
- Toys
- Industrial applications
