SmartBond TINY DA14535 Bluetooth Low Energy 5.3 SoC Development Kit Pro
The DA14535-00FXDEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14535 SmartBond TINY™ SoC includes a motherboard, daughterboard, and cables. This kit is...
Overview
Description
Module available: DA14535MOD

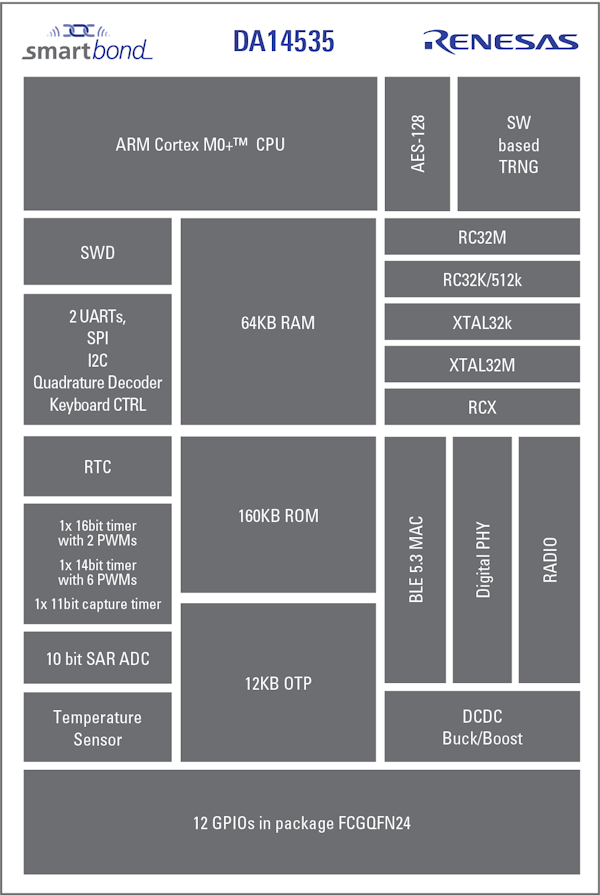

The DA14535 is an ultra-low power SoC integrating a 2.4GHz transceiver and an Arm® Cortex®-M0+ microcontroller with a RAM of 64kB and a One-Time Programmable (OTP) memory of 12kB. It can be used as a standalone application processor or as a data pump in hosted systems. The radio transceiver, the baseband processor, and the qualified Bluetooth® low energy stack are fully compliant with the Bluetooth Low Energy 5.3 standard.
Ultra-low power can be achieved using the integrated low IQ buck-boost DC/DC which is on during sleep in buck mode.
The low system cost is achieved through the high level of integration: A complete Bluetooth Low Energy system can be achieved with the addition of six tiny external passives, a crystal, and a power source. And to lower the barrier of entry, DA14535 is also available in an easy-to-use tiny module incorporating all the needed components, making the addition of Bluetooth Low Energy to any application a simple drop-in.
Extended operating temperature range up to 105 °C and extended output power up to 4dBm enable DA14535 to support a wide range of industrial applications, next to connected health, consumer, and IoT applications. Available in a tiny 2.2mm x 3.0mm FCGQFN24 package, the DA14535 is pin-to-pin compatible with its predecessors DA14531 and DA14530. And, it is complemented by a flexible SDK supporting major compilers such as Keil and GCC out of the box.
Features
- Future proof, compliant with Bluetooth 5.3 (core)
- Optimized for disposable products in connected medical, connected consumer and industrial applications
- Designed to work with disposable, even printed batteries
- Works well with smallest capacity batteries, <30mAh
- Supports multiple years of shelf life
- Inrush current can be limited for disposable batteries with high internal resistance.
- Package design allows for low cost manufacturing with smallest possible footprint
- Only requiring a single 32MHz crystal
- In bypass mode no DC/DC inductor required
- No boost converter required when working with 1.5V batteries
- Production Line Tool for accelerated production ramp up, resulting in faster time to market and shortest production test time per device
Comparison
Applications
Applications
- Medical applications
- Disposables
- Beacons
- Proximity tags and trackers
- Wireless sensor nodes
- Fitness trackers
- Consumer health
- Smartwatches
- Human interface devices (HID)
- Stylus pens
- Keyboards
- Mouse devices
- Trackpads
- Toys
- Industrial appliances
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| SmartBond™ - CodeLess™ AT Commands The SmartBond™ CodeLess AT Commands platform enables control of the Bluetooth® Low Energy connectivity, sensor read-out and battery check of the device.
|
IDE and Coding Tool | Renesas |
| Serial Port Service (SPS) The Serial Port Service (SPS) emulates serial cable communication.
|
Emulator | Renesas |
| SmartBond™ Development Tools SmartSnippets™ Studio is a royalty-free software development platform for SmartBond™ devices.
|
Software Package | Renesas |
| SmartBond™ Flash Programmer The Renesas SmartBond™ Flash Programmer tool lets the user program a flash device for the DA1453x, DA1458x, DA1469x, and DA14592 SoCs.
|
Software Package | Renesas |
| Renesas Bluetooth® Low Energy Mobile Application Suite Renesas’ comprehensive collection of Bluetooth® Low Energy mobile applications: SmartBond, SmartConfig, SmartConsole, SmartTags, and SUOTA
|
Software Package | Renesas |
| e² studio Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
6 items
|
||
Sample Code
Boards & Kits
SmartBond DA14535 Bluetooth Low Energy 5.3 SoC Development Kit Pro Daughterboard
The DA14535-00FXDB-P is a daughterboard for use with the DA14535-00FXDEVKT-P development kit. The daughterboard can be easily attached to the motherboard of the...
Featured Documents:
SmartBond TINY DA14535 Bluetooth Low Energy 5.3 SoC USB Development Kit
The DA14535-00FXDEVKT-U is a Bluetooth® Low Energy USB software development kit for the DA14535 SmartBond TINY™ SoC. It gives you all the flexibility to develop...
SmartBond TINY DA14535MOD Bluetooth Low Energy 5.3 Module Development Kit Pro
The DA14535MOD-00DEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14535 SmartBond TINY™ module includes a motherboard, daughterboard, 3 module samples, and...
Featured Documents:
SmartBond TINY DA14535MOD Bluetooth Low Energy 5.3 Module Development Kit Pro Daughterboard
The DA14535 daughterboard features an integrated semiconductor DA14535 SmartBond TINY™ module. The DA14535 SmartBond TINY module daughterboard has the capability of...
Featured Documents:
Bluetooth Low Energy SoC 16-site Production Line Tool Kit
Renesas offers a production test and programming unit that enables you to reduce the time to ramp-up at a lower cost. The Production Line Tool (PLT) helps to increase...
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| FCGQFN | Tape & Reel | 0.9518 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
