概要

The HFA3101 is an all NPN transistor array configured as a Multiplier Cell. Based on Intersil's bonded wafer UHF-1 SOI process, this array achieves very high fT (10GHz) while maintaining excellent hFE and VBE matching characteristics that have been maximized through careful attention to circuit design and layout, making this product ideal for communication circuits. For use in mixer applications, the cell provides high gain and good cancellation of 2nd order distortion terms.

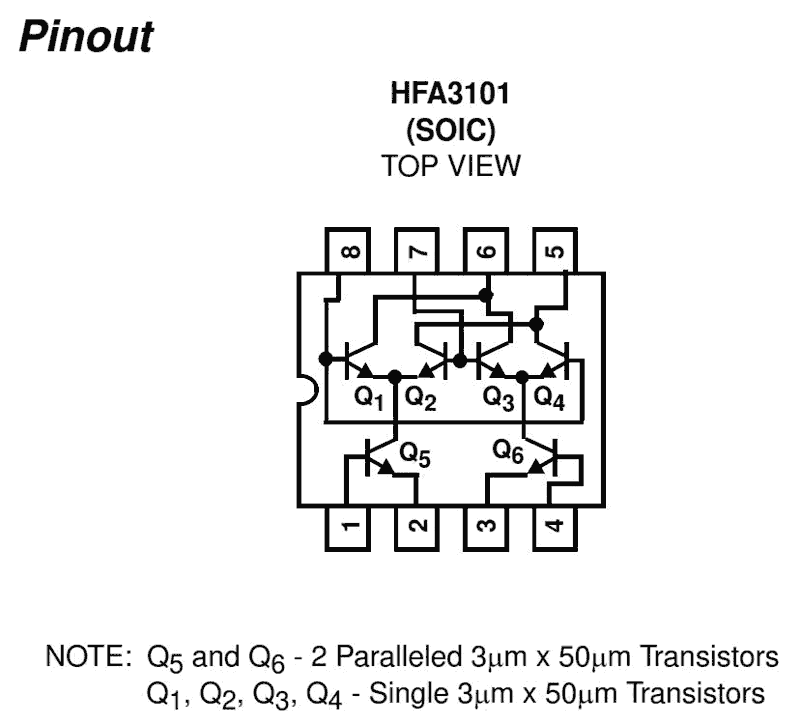

HFA3101 Functional Diagram
HFA3101 Functional Diagram
  • Pb-free Available as an Option
  • High Gain Bandwidth Product (fT) 10GHz
  • High Power Gain Bandwidth Product 5GHz
  • Current Gain (hFE) 70
  • Low Noise Figure (Transistor) 3.5dB
  • Excellent hFE and VBE Matching
  • Low Collector Leakage Current <0.01nA
  • Pin to Pin Compatible to UPA101

アプリケーション

  • Balanced Mixers
  • Multipliers
  • Demodulators/Modulators
  • Automatic Gain Control Circuits
  • Phase Detectors
  • Fiber Optic Signal Processing
  • Wireless Communication Systems
  • Wide Band Amplification Stages
  • Radio and Satellite Communications
  • High Performance Instrumentation

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
HFA3101 Datasheet
PDF 1.21 MB
トレーニング
R13TB0001: Op-amp Crash Course Part 1: Basics Tutorial
PDF 258 KB
トレーニング
R13TB0002: Op-Amp Crash Course Part 2: Key Parameters Tutorial
PDF 325 KB
Price Increase Notice
PIN19006 - Price Increase for the Listed Renesas Electronics America Products
PDF 257 KB
Price Increase Notice
PIN17006 - Q1 2017 Price Increase
PDF 227 KB
製品変更通知
PCN12085 - 8l, 14l, 16l SOIC w/ Gold Bond Wire @ ATP as Alternate Assembly Site
PDF 152 KB
アプリケーションノート
AN1694: The Four Basic Building Blocks of an Op Amp
PDF 357 KB
アプリケーションノート
AN9744: RF Up/Down Conversion Is Simplified By Linear Arrays
PDF 299 KB
アプリケーションノート
AN9528: 900MHz Down Converter Consumes Little Power
PDF 204 KB
9件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    HFA3101BZ
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		SOICN Tube 1 7.187 サンプルを入手,
    HFA3101BZ96
    circleアクティブ
    memory
    spa
    view_in_ar
    		SOICN Reel 1
