This is the evaluation board for the Renesas 5P49V5944 programmable clock generator. With RMS phase jitter less than 0.7 picoseconds over the full 12kHz to 20MHz integration range, the device meets the stringent jitter requirements of PCI ExpressR Gen 1/2/3, USB 3.0, and 1G/10G Ethernet. VersaClock® 5 is ideal for high-performance consumer, networking, industrial, computing, and data communications applications.

Evaluation Board for 5P49V5943/44 VersaClock® 5

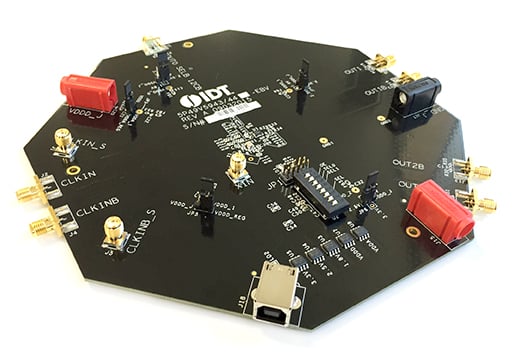

Evaluation Board for 5P49V5943/44 VersaClock® 5 - Perspective
Evaluation Board for 5P49V5943/44 VersaClock® 5
Evaluation Board for 5P49V5943/44 VersaClock® 5 - Perspective
  • 2  Universal Differential Outputs capable of generating any output frequency using  Renesas Timing Commander™ software
  • Differential Clock Input
  • When the board is connected to a PC running Renesas Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance
  • The 25MHz crystal installed on the board can source a reference frequency to the device when CLKIN/CLKINB is not used

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－ハードウェア
VersaClock 5 5P49V5943/44 Evaluation Board User Guide
PDF 1.21 MB
マニュアル－ソフトウェア
VersaClock 5 Timing Commander Users Guide
PDF 2.04 MB
回路図
VersaClock 5 5P49V5943/44 Evaluation Board Schematics
PDF 40 KB
3件

製品選択

    Processing table
    Output Signaling
    ご購入 / サンプル
    型名
    EVKVC5-5944ALL
    circleアクティブ
    		 Crystal, LVCMOS
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    ビデオ&トレーニング

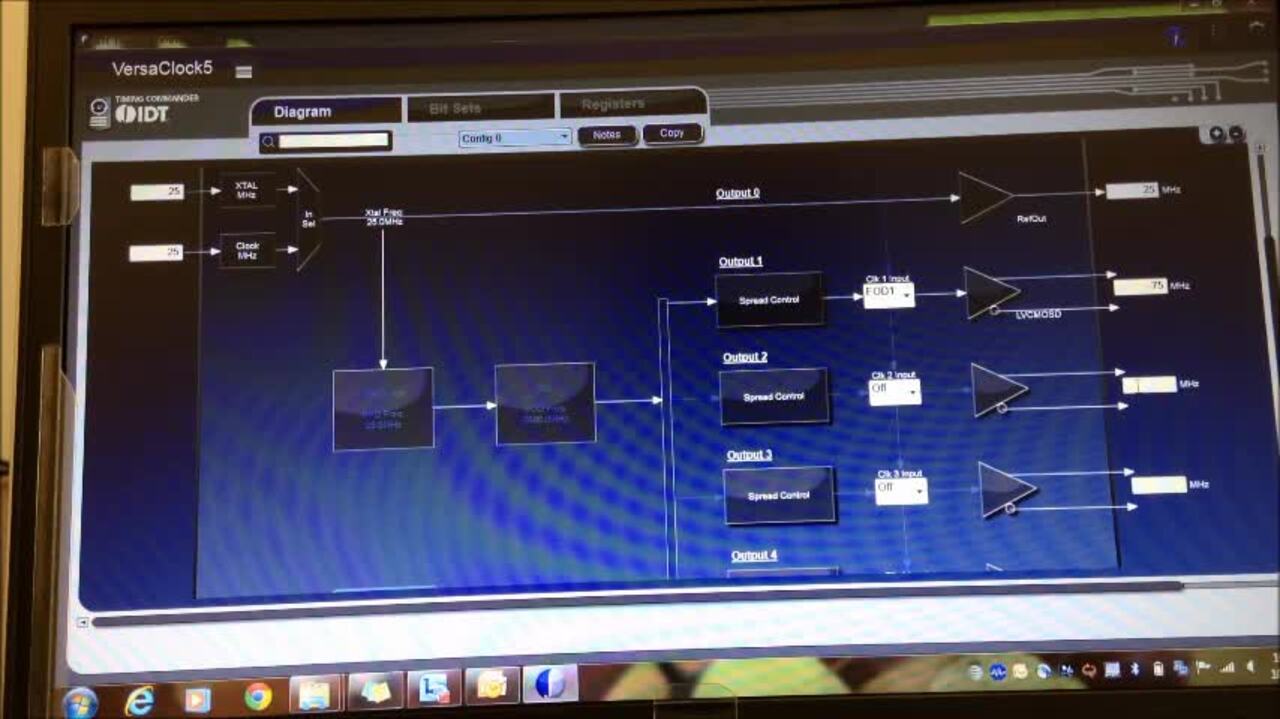

    How to Program VersaClock - 5 Programmable Clock Generator by IDT
