概要

The HXT8212 VCSEL driver array is a key component for compact, robust, low-power optical transmitter modules. In conjunction with the VCSEL array, the chip handles the complete digital-to-optical conversion, including CML input, laser driver, drive control, and supervision. Standard silicon technology and a small number of additional components allow for cost-effective and compact assemblies.

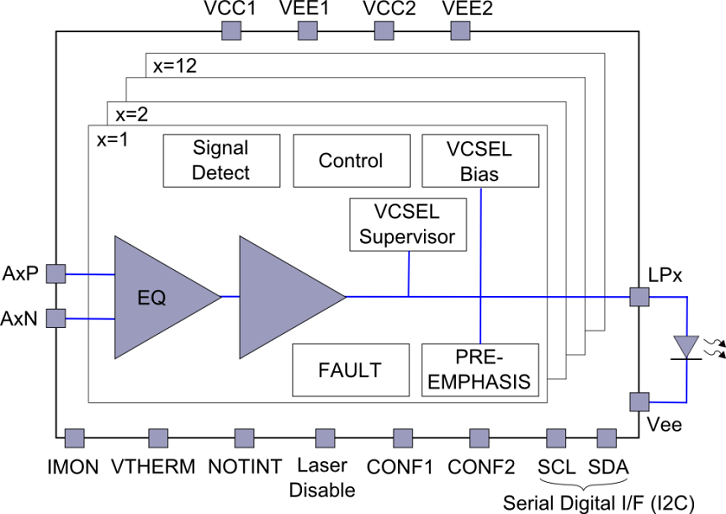

HXT8212 - Block Diagram
HXT8212 - Block Diagram
  • Low power consumption of 113mW per channel while delivering 5mA average and 5mA modulation current
  • Compatible with common cathode and isolated VCSEL arrays
  • 2-wire interface control and symmetric pad design maximize module design flexibility
  • Up to 10mA average and 10mA modulation current
  • QSFP MSA compliant

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート－簡略版
HXT8212-DNG Short-Form Datasheet
PDF 86 KB
データシート
HXT8212-DNG Datasheet
ログインしてダウンロード PDF 1.23 MB
Product Advisory
PA# : 210013-R1 Datasheet errata update for the listed HXT* parts
PDF 115 KB
Product Advisory
PA# : 210013 Datasheet errata update for the listed HXT* parts
PDF 114 KB
製品変更通知
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
