概要
説明

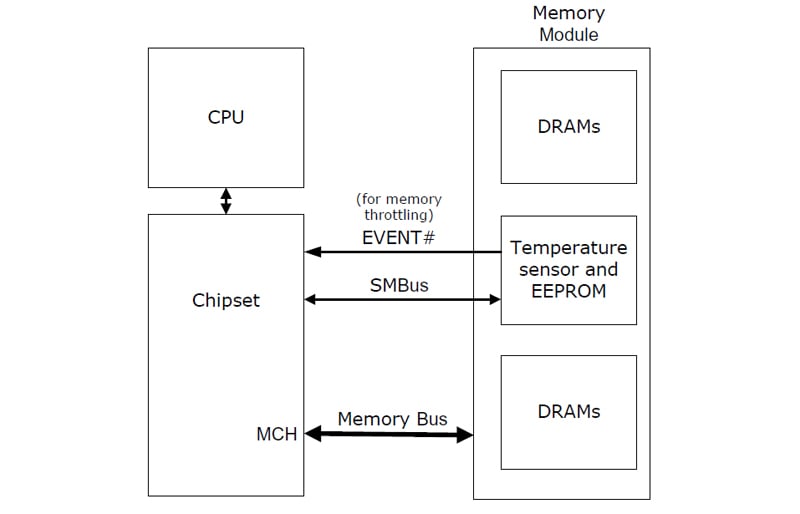

The TSE2004GB2B0 is a digital temperature sensor with integrated 4 Kbit EEPROM for memory modules. It features accuracy up to ±0.5°C was designed to target applications demanding highest level of temperature readout.
The TSE2004GB2C0 is the recommended alternative for new designs.
特長
-
Temperature Sensor + 512 Byte Serial EEPROM
-
512 Byte Serial EEPROM for SPD
-
Single Supply: 2.2V to 3.6V
-
Accurate timeout support
-
Meets strict SMBus spec of 25ms (min), 35ms (max)
-
-
Timeout supported for Temp Sensor and EEPROM
-
Timeout supported in all Modes
-
Active mode for Temp sensor and EEPROM
-
EEPROM in standby or Temp sensor in shutdown
-
EEPROM in standby and Temp sensor in shutdown
-
-
Schmitt trigger and noise filtering on bus inputs
-
2-wire Serial Interface: 10KHz to 1 MHz max I2C™ /SMBus™
-
Available Package: TDFN-8
製品比較
アプリケーション
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| データシート | PDF 1.32 MB | |
| EOL通知 | PDF 18 KB | |
| 製品変更通知 | PDF 528 KB | |
| ホワイトペーパー | PDF 1.08 MB | |
| ホワイトペーパー | PDF 5.22 MB | |
5件
|
||
