The ISL59833 is a revolutionary device that allows true singlesupply operation of video amplifiers. Designed for systems requiring output swing below ground but lacking a negative power supply, the ISL59833 generates the required negative rail internally from a +3. 3V power supply. This allows for DC-accurate coupling of video onto a 75Ω double-terminated line. The buffers have an integrated 6dB, eliminating the need for external gain-setting resistors. An external reference voltage can be applied to the REF pin to shift the analog video level down by the desired amount.

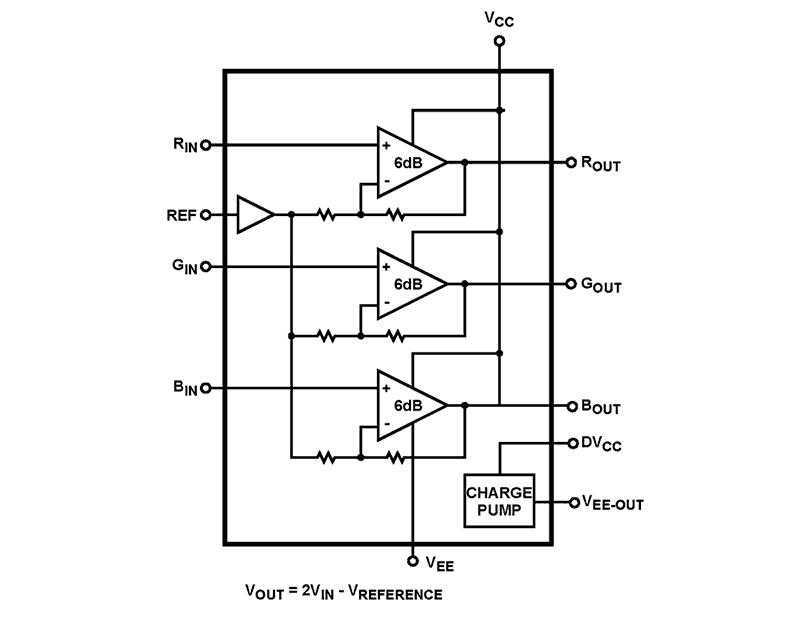

ISL59833 Functional Diagram
ISL59833 Functional Diagram
  • Triple single-supply buffer
  • Generates negative rail from from single +3.3V supply
  • No output DC blocking capacitor needed
  • 200MHz -3dB bandwidth
  • 50MHz 0.1dB bandwidth
  • Fixed gain of 2 output buffer
  • Amplifier enable/disable function control
  • Outputs are high impedance in power-down mode
  • Pb-free plus anneal available (RoHS compliant)
