概要

The DA7218-EVAL evaluation board is designed to allow measurement and evaluation of the DA7218 ultra-low power stereo codec with single-ended headphone driver. The board connects to the digital IO board for USB control and for digital audio input/output via the digital audio interface. All analog audio codec functionalities are contained within the evaluation board. Additionally, it is supplied with a USB memory stick containing various documents and a GUI to allow users to control the DA7218 device. The GUI, called SmartCanvas™, uses a simple graphical interface, allowing the DA7218 to be controlled via a USB port of a PC. This evaluation board has a number of jumper links to enable users to change the system configuration and to allow them to make appropriate measurements. However, only a few jumper links are required to be altered for standard operations of the device.

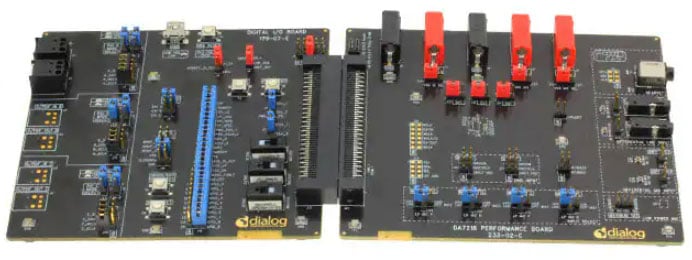

DA7218-EVAL Audio Codec Evaluation Board

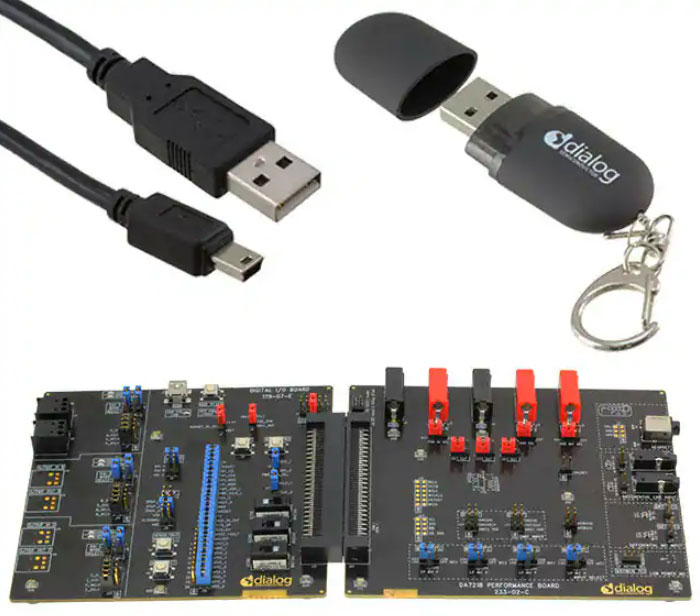

DA7218-EVAL Audio Codec Evaluation Kit
DA7218-EVAL Audio Codec Evaluation Board
DA7218-EVAL Audio Codec Evaluation Kit

アプリケーション

  • Wired headsets
  • Wired headphones
  • Audio accessories
  • Portable gaming controller
  • Tablets and eReaders

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
DA7218 Datasheet
PDF 3.18 MB
マニュアル－開発ツール
DA7218 EVB User Guide
ログインしてダウンロード ZIP 4.03 MB
2件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－ソフトウェア
DA7218 SmartCanvas GUI Software
ログインしてダウンロード ZIP 61.57 MB
1件

製品選択

    Processing table
    ご購入 / サンプル
    型名
    DA7218-EVAL
    circleアクティブ
    今すぐ購入する
