概要

The 9DB833 zero delay buffer (ZDB) supports PCIe Gen3 requirements while being backward compatible with PCIe Gen2 and Gen1. The 9DB833 is driven by a differential SRC output pair from a 932S421 or 932SQ420 or equivalent main clock generator.

9DB833 - Block Diagram

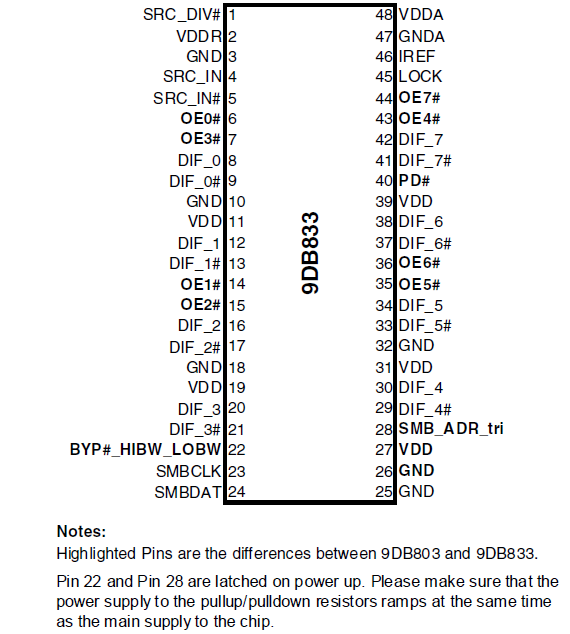

9DB833 - Pinout
9DB833 - Block Diagram
9DB833 - Pinout
  • Eight 0.7V HCSL differential output pairs
  • Phase jitter: PCIe Gen3 < 1ps rms
  • Phase jitter: PCIe Gen2 < 3.1ps rms
  • Phase jitter: PCIe Gen1 < 86ps peak-to-peak
  • Supports Zero Delay Buffer mode and Fanout mode
  • Bandwidth programming available
  • 3 selectable SMBus Addresses
  • 50MHz to 110MHz operation in PLL mode
  • 5MHz to 166MHz operation in Bypass mode

ドキュメント

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    9DB833AGILF
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		TSSOP 48 I Yes Tube 1 3.038 サンプルを入手,
    9DB833AGILFT
    circleアクティブ
    memory
    view_in_ar
    		TSSOP 48 I Yes Reel 1 3.192
    9DB833AGLF
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		TSSOP 48 C Yes Tube 1 3.298 サンプルを入手,
    9DB833AGLFT
    circleアクティブ
    memory
    view_in_ar
    		TSSOP 48 C Yes Reel 1
