概要
説明
The 9ZXL1231 12-output low-power HCSL buffer meets the demanding requirements of the Intel DB1200ZL specification, including the critical low-drift requirements of Intel CPUs.
特長
- Low-power push-pull HCSL outputs; eliminate 24 resistors, save 41mm² of area
- Pin-compatible to 9ZX21201 provides easy path to >50% power savings

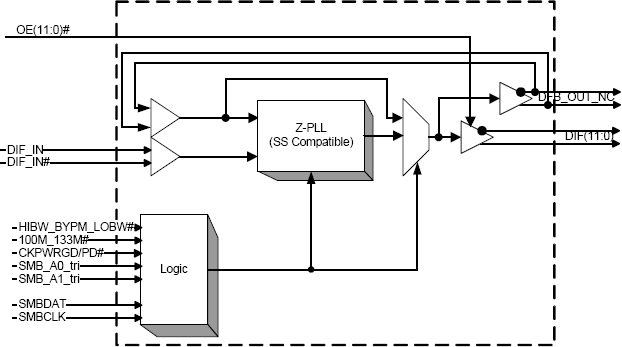

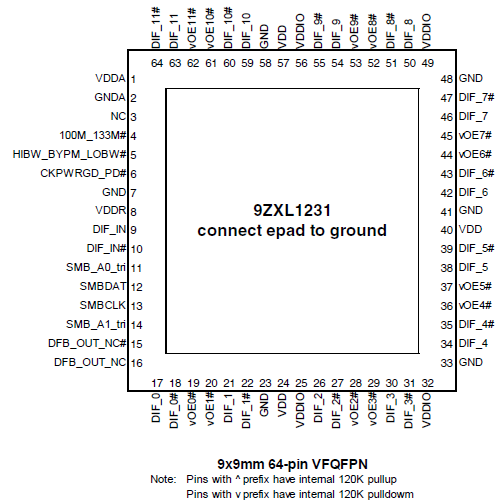

- Space-saving 64-pin VFQFPN package
- Fixed feedback path for 0ps input-to-output delay
- 9 Selectable SMBus Addresses
- 12 OE# pins provide hardware control of each output
- PLL or bypass mode; PLL can de-jitter incoming clock
- Selectable PLL bandwidth minimizes jitter peaking in downstream PLLs
- Spread spectrum compatible
- -40 °C to +85 °C device available; supports demanding environmental applications
製品比較
アプリケーション
- Buffer for Romley, Grantley, and Purley servers
- Solid state storage
- PCIe
設計・開発
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| VFQFPN | 64 | Tray | 3 | PCIe Gen1, PCIe Gen2, PCIe Gen3, PCIe Gen4, PCIe Gen5, QPI | 0 | 207 | Yes | e3 Sn | -40 to +85°C | サンプルを入手, | ||
| VFQFPN | 64 | Reel | 3 | PCIe Gen1, PCIe Gen2, PCIe Gen3, QPI | 3000 | 0 | Yes | e3 Sn | -40 to +85°C | |||
| VFQFPN | 64 | Tray | 3 | PCIe Gen1, PCIe Gen2, PCIe Gen3, QPI | 0 | 207 | Yes | e3 Sn | 0 to 70°C | サンプルを入手, | ||
| VFQFPN | 64 | Reel | 3 | PCIe Gen1, PCIe Gen2, PCIe Gen3, QPI | 3000 | 0 | Yes | e3 Sn | 0 to 70°C |
