概要

The 8S89296 is a high-performance LVDS programmable delay line. The delay can vary from 2.2ns to 12.5ns in 10ps steps. The 8S89296 is characterized to operate from a 2.5V power supply and is guaranteed over the industrial temperature range. The delay of the device varies in discrete steps based on a control word; a 10-bit long control word sets the delay in 10ps increments. Also, the input pins IN and nIN default to an equivalent low state when left floating. The control register can accept CMOS or TTL-level signals.

8S89296 Block Diagram

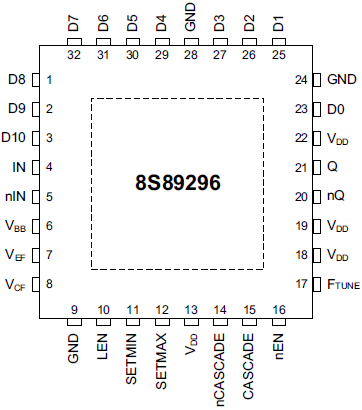

8S89296 Pinout
8S89296 Block Diagram
8S89296 Pinout
  • One LVDS level output
  • One differential clock input pair
  • Differential input clock (IN, nIN) can accept the following signaling levels: LVPECL, LVDS, CML
  • Maximum frequency: 800MHz
  • Programmable delay range: 2.2ns to 12.5ns in 10ps steps
  • D[10:0] can accept LVPECL, LVCMOS, or LVTTL levels
  • Full 2.5V supply voltages
  • -40 °C to +85 °C ambient operating temperature
  • Lead-free (RoHS 6) package

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
8S89296 Datasheet
PDF 475 KB
製品変更通知
PCN# : 220015 Add Alternate Assembly Location on VFQFPN Packages
PDF 728 KB
製品変更通知
PCN# : A1904-01 Add Greatek, Taiwan as an Alternate Assembly Facility
PDF 983 KB
3件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    8S89296NLGI
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		VFQFPN 32 I Yes Tray 3 11.24 サンプルを入手,
    8S89296NLGI8
    circleアクティブ
    memory
    view_in_ar
    		VFQFPN 32 I Yes Reel 3
