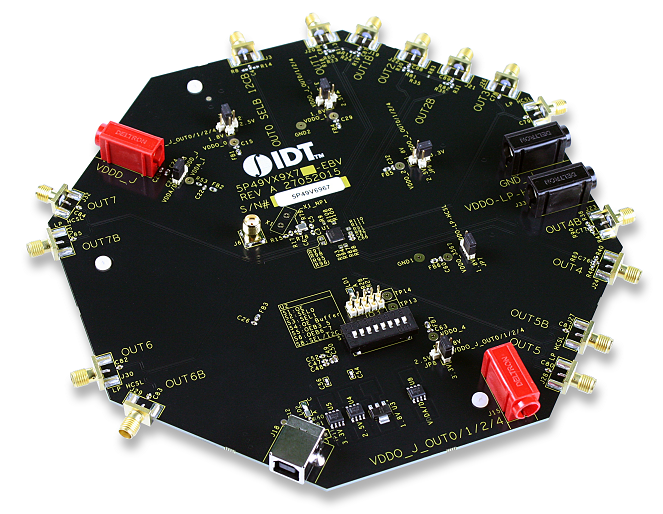

This is the evaluation board for the 5P49V6967 VersaClock® 6E programmable clock generator. With RMS phase jitter of less than 0.5ps over the full 12kHz to 20MHz integration range, the device meets the stringent jitter requirements of PCI Express® Gen 1/2/3, USB 3.0, and 1G/10G Ethernet.
特長
- 3 differential outputs capable of generating any output frequency using the Timing Commander™ software
- 4 additional copies of LP-HCSL outputs
- SMA connectors for outputs
- When the board is connected to a PC running the Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance
- The 25MHz crystal installed on the board can source a reference frequency to the device when CLKIN/CLKINB is not used
