This is the evaluation board for the 5P49V6975 VersaClock® 6E programmable clock generator. With RMS phase jitter of less than 0.5ps over the full 12kHz to 20MHz integration range, the device meets the stringent jitter requirements of PCI Express® Gen 1/2/3, USB 3.0, and 1G/10G Ethernet.

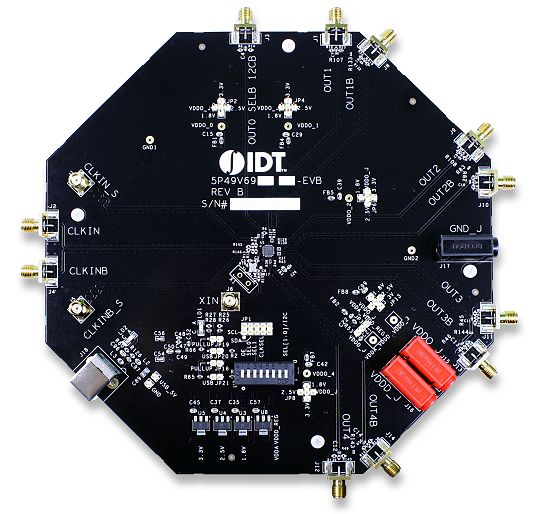

5P49V6975 - Evaluation Board (top)

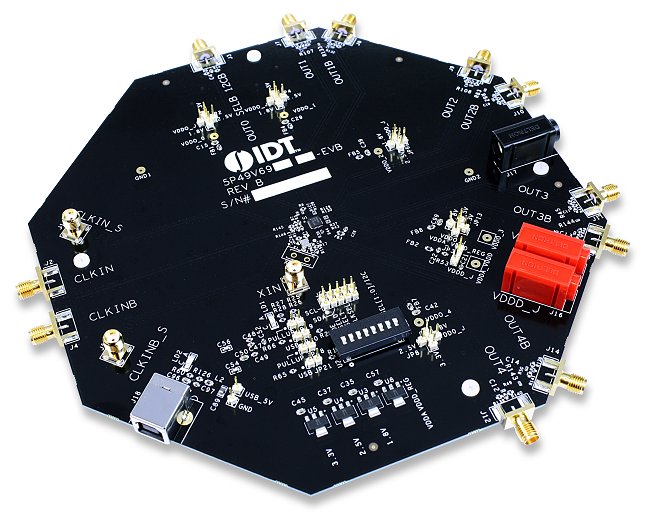

5P49V6975 - Evaluation Board (perspective)
5P49V6975 - Evaluation Board (top)
5P49V6975 - Evaluation Board (perspective)
  • 4 differential outputs capable of generating any output frequency using  Timing Commander™ software
  • SMA connectors for outputs
  • When the board is connected to a PC running Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance
  • Integrated 25MHz as an input. External CLKIN can also be connected as an input.

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－ハードウェア
VersaClock 6E 5P49V60, 5P49V6965 and 5P49V6975 Evaluation Board Manual
PDF 1.30 MB
マニュアル－開発ツール
VersaClock 6E Family Register Descriptions and Programming Guide
PDF 895 KB
2件

製品選択

    Processing table
    Output Signaling
    ご購入 / サンプル
    型名
    5P49V6975-EVK
    circle新規採用非推奨品
    		 HCSL, LVCMOS, LVDS, LVPECL
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    ビデオ&トレーニング

    VersaClock® 6E - High-performance Programmable Clock Generator

    The VersaClock® 6E programmable clock generator devices offer a combination of low power, flexibility and performance for a wide range of applications. These features make it ideal for simplifying system design by replacing multiple discrete timing components and reducing bill of materials (BOM). The VersaClock 6E supports operating voltages from 1.8 to 3.3 V, differential (LVPECL/HCSL/LVDS/LP-HCSL) and LVCMOS output types, and fractional dividers to accurately generate virtually any frequency. Products satisfy system requirements from oscillator replacement to PCIe® Gen 1/2/3 and to communications applications, while consuming very little power.

    For more information about VersaClock 6E, visit the VersaClock Programmable Clocks page.
