概要

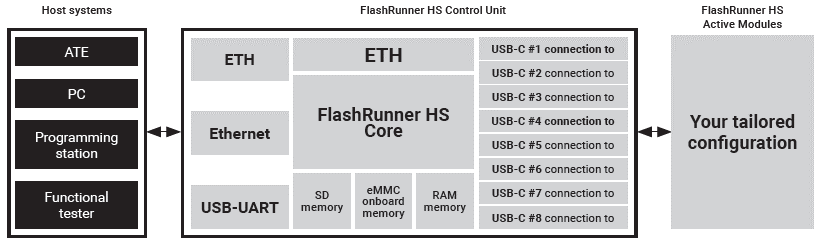

FlashRunner High-Speed is a universal parallel in-system programmer supporting up to 32 targets in parallel. FlashRunner High-Speed combines high-level programming performances and high modularity to deliver a multi-end programming solution. The Control Unit is the central management coordinating different technologies for each peripheral Active Module. Support is available for the RA Family, RX Family, and RL78 Family of MCUs,

Renesas Ready
Renesas Ready
SMH FlashRunner High-Speed
  • Supports a wide range of Renesas products
  • LAN and USB connection and control:
    • User-friendly GUI
    • SDK/API: DLL in C/C++ and C#
    • Command Line control
  • Standalone control
  • Data protection with user’s firmware encryption
  • Device security features supported
  • Dynamic memory: change firmware content dynamically for, i.e., serial numbering
  • Board supply voltage and current up to 12V and 200mA
  • Large memories high data transfer rate

アプリケーション

  • Automotive
  • In-system programming
  • White goods
  • Smart sensors
  • Industry 4.0

ドキュメント

= ピックアップ
分類 タイトル 日時
製品概要
SMH Technologies FlashRunner High-Speed
PDF 547 KB
1件
