概要

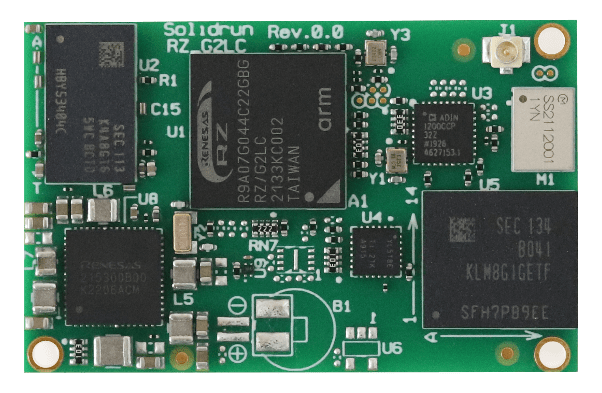

The SolidRun RZ/G2LC SoM leverages the performance and flexibility of Renesas' RZ/G2LC 64-bit microprocessor. Embedded with single/dual Cortex®-A55 cores, a powerful graphics engine, and a variety of communications and video interfaces, its small form factor and outstanding performance are ideally suited for use in a wide range of demanding IoT and industrial applications. On top of the SoM, SolidRun offers the ready-to-operate versatile HummingBoard RZ/G2LC single board computer (SBC) and can be used in prototype, reference board, or production scenarios.

Renesas RZ Ready
SolidRun SYSTEM ON MODULE (SOM)
Renesas RZ Ready
SolidRun SYSTEM ON MODULE (SOM)
SolidRun SYSTEM ON MODULE (SOM) Diagram
  • Standard form factor for project flexibility: A small size of 47mm x 30mm compatible with other existing SoMs to guarantee the supply chain.
  • Cost effective: Offers an excellent cost/performance ratio based on single or dual Arm® Cortex®-A55 processor cores
  • Power efficient: Provides a range of power-saving features optimized for embedded and IoT applications.
  • Single-core variant RZ/G2UL: Available as a single-core variant. The RZ/G2UL variant features the same pinout as the RZ/G2LC.

アプリケーション

  • Industrial human machine interface (HMI) - GUI
  • Barcode scanner systems
  • Linux + RTOS
  • Home appliances
  • Medical low power devices
  • Home security cameras

ドキュメント

= ピックアップ
分類 タイトル 日時
製品概要
SolidRun SYSTEM ON MODULE (SOM) for the Renesas RZ Partner Ecosystem
PDF 245 KB
1件
