概要

The RTKA788000DE0010BU evaluation board allows the measurement of power line currents up to 80A.

The board includes two RAA788000 current sensor ICs in stacked sensor topology, for easy connection to a high-current source.

The output amplifiers of the two sensors are configured to a single differential amplifier to allow for differential current measurements with minimum noise.

RTKA788000DE0010BU - Angle

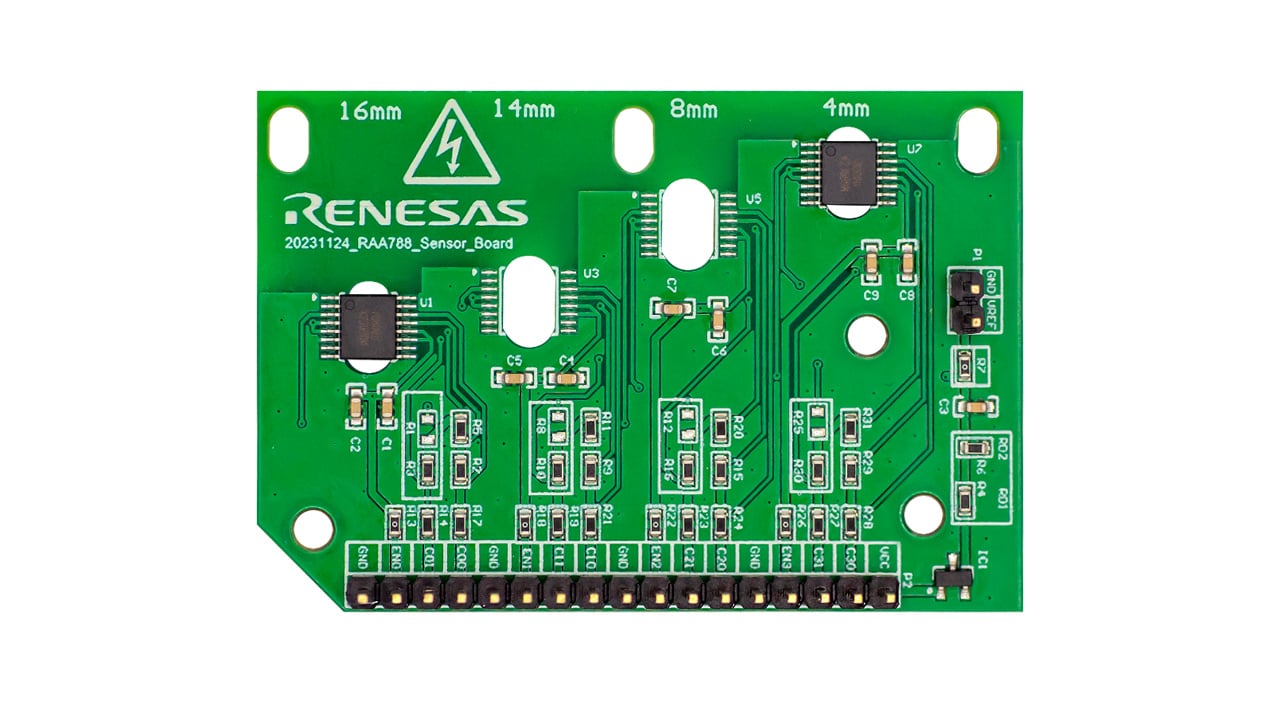

RTKA788000DE0010BU - Front
RTKA788000DE0010BU - Bottom
RTKA788000DE0010BU - Angle
RTKA788000DE0010BU - Front
RTKA788000DE0010BU - Bottom
  • Two current sensor ICs
  • High-gain setting of 200V/V
  • Stacked sensor topology
  • Differential current measurement up to 80A
  • Wide 2.7V to 3.6V supply voltage range

アプリケーション

  • AC current sensor stacked topology

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
RTKA788000DE0010BU Evaluation Board Manual
PDF 1.60 MB
1件

設計・開発

ソフトウェア／ツール
iSim:PEオフラインシミュレーションツール
iSim Personal Edition（iSim：PE）は、プロジェクトの早い段階で設計サイクルを速め、プロジェクト初期のリスクを低減し、現在のみならず次世代の設計に耐えうる部品を選定します。
 Simulator ルネサス
1件

製品選択

    Processing table
    ご購入 / サンプル
    型名
    RTKA788000DE0010BU
    circleアクティブ
    サンプル入手可能
    		 サンプルを入手,
