The ISL9116BIRN-EVZ platform allows quick evaluation of the high-performance features of the ISL9116B boost regulator. The ISL9116B is a highly integrated boost-switching regulator that accepts input voltages below the regulated output voltage. It features an extremely low quiescent current consumption, excellent efficiency, and an I2C interface allowing access to its internal registers for output voltage and operation mode control.

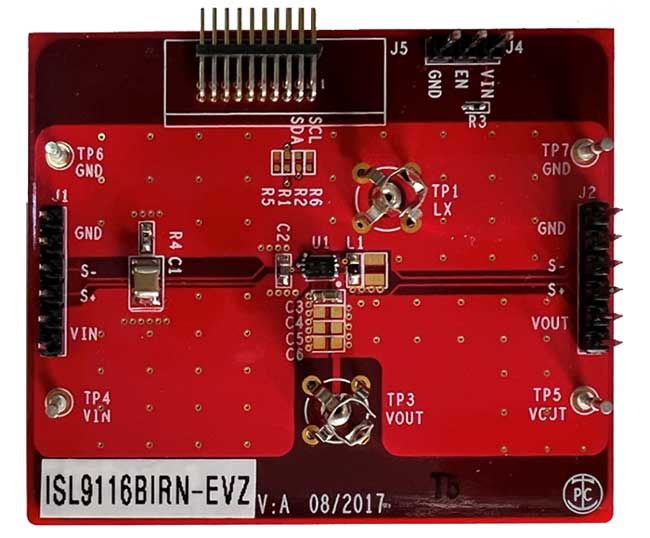

ISL9116BIRN-EVZ Boost Regulator Evaluation Board
ISL9116BIRN-EVZ Boost Regulator Evaluation Board
  • Small, compact design
  • I2C interface for programmable VOUT, slew rate, and various operation modes (auto-PFM, forced PWM)
  • Connectors, test points, and jumpers for easy probing

アプリケーション

  • Smart watches and wristband devices
  • Wireless earphones
  • Internet of Things (IoT) devices
  • Water, gas, and oil meters
  • Portable medical devices
  • Hearing aid devices

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
ISL9116BIRN-EVZ Evaluation Board Manual
PDF 2.01 MB
マニュアル－開発ツール
ISL9116BIRN-EVZ Design Files
ZIP 366 KB
データシート
ISL9116B Datasheet
PDF 3.48 MB
マニュアル－開発ツール
ISL9122 Family Evaluation Software Manual
PDF 795 KB
4件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－評価版ソフトウェア
ISL9122 Evaluation Software Installer
ZIP 498 KB
1件

製品選択

    Processing table
    ご購入 / サンプル
    型名
    ISL9116BIRN-EVZ
    circleアクティブ
    サンプル入手可能
    		 サンプルを入手,
