概要
説明

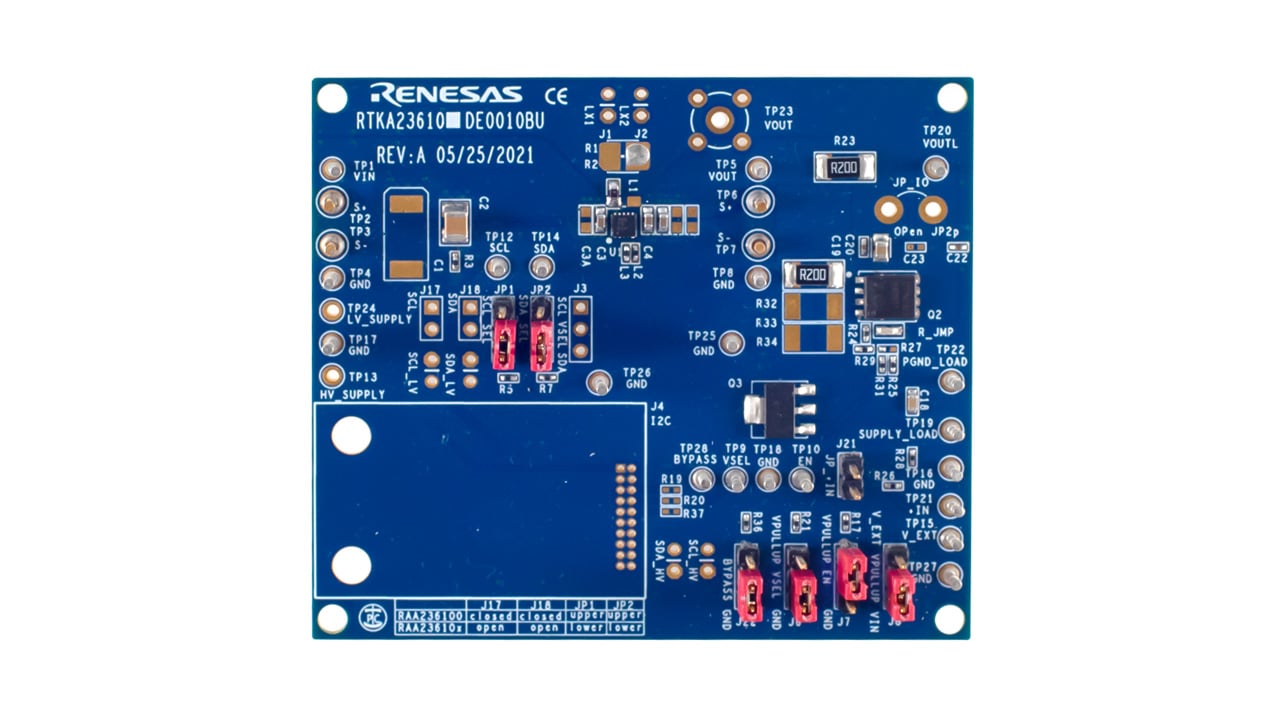

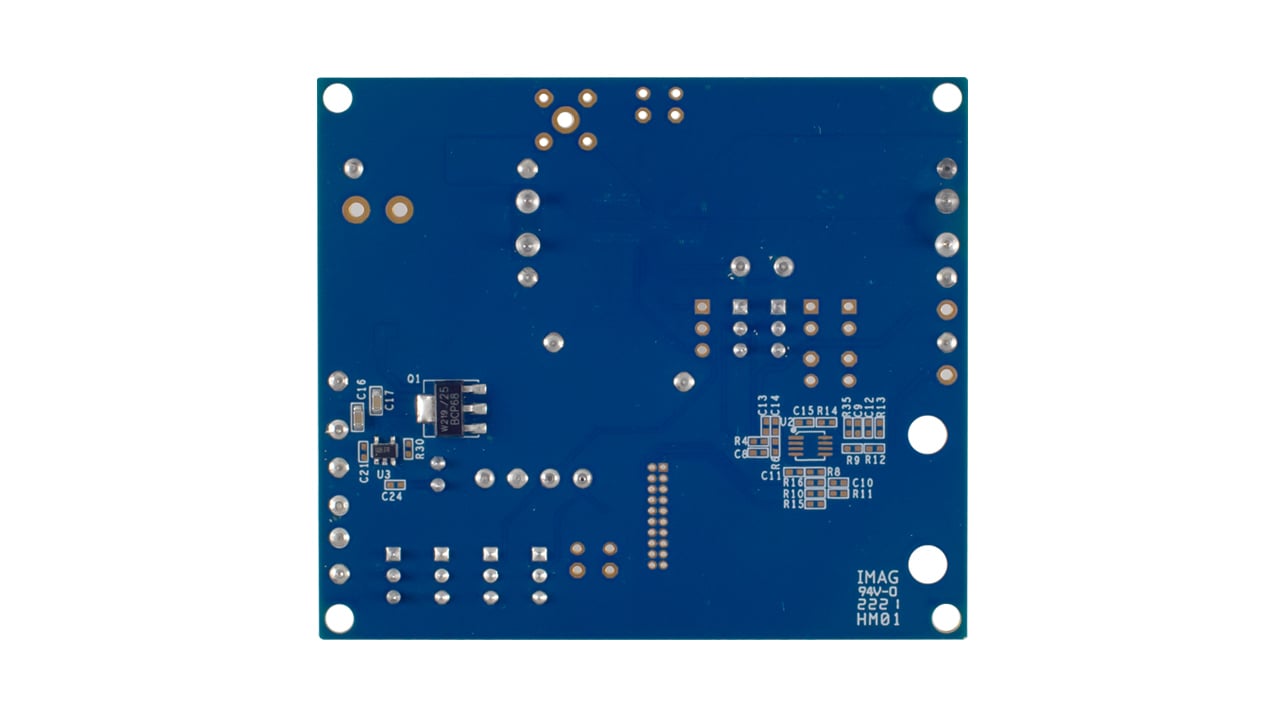

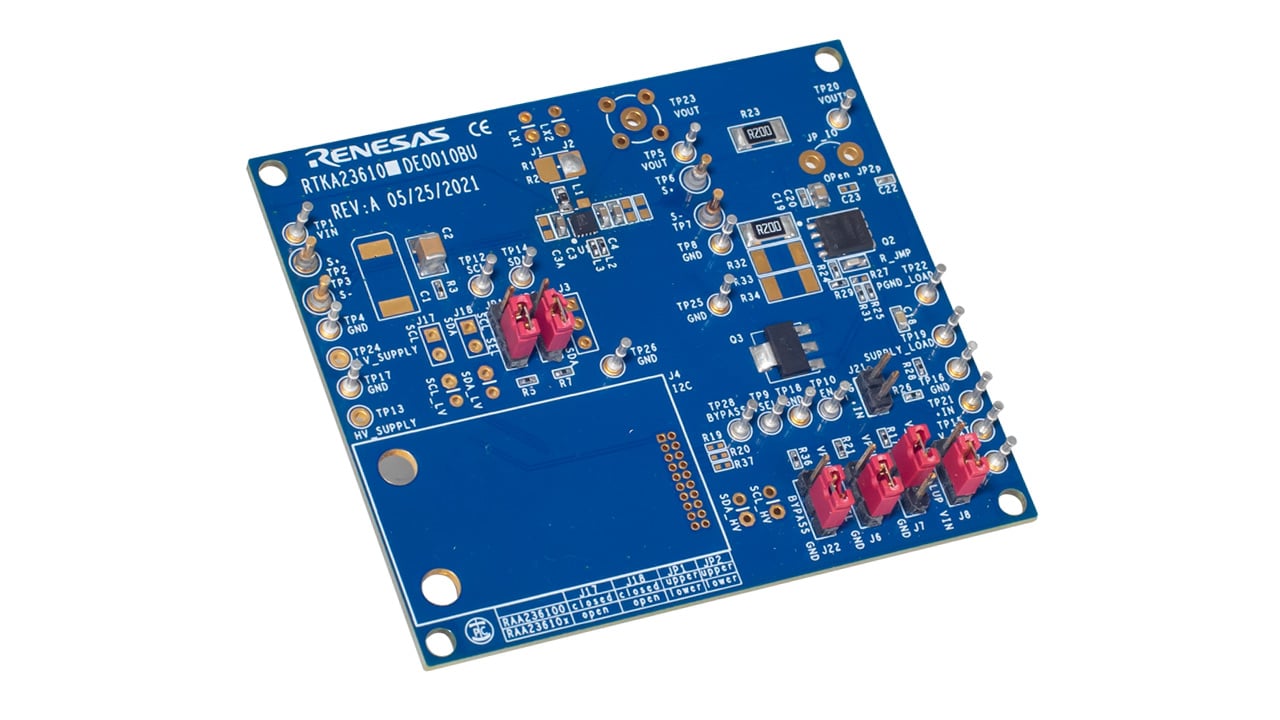

The RTKA236105DE0010BU evaluation board is designed to evaluate the functionality and performance of the RAA236105 regulator in a DFN package. The RAA236105 is a highly efficient, integrated synchronous buck-boost regulator with an ultra-low input quiescent current of 130nA, dropping to 22nA when disabled. This evaluation board provides access to the regulator switching node, inductor current, input current, input/output voltages, and other control lines.
特長
- Small and compact design
- Connectors, test points, and jumpers for easy probing
アプリケーション
アプリケーション
- Smart watches and wristband devices
- Wireless earphones
- Internet of Things (IoT) devices
- Water, gas, and oil meters
- Energy harvesting
