概要

The iW3620 is a high-performance AC/DC power supply controller for applications up to 40W of output power, optimized for driving LEDs from an AC supply voltage. Designed to operate from a universal input voltage range of 85VAC to 264VAC, the iW3620 can be used across all voltage standards worldwide.

The iW3620 uses Renesas' proprietary PrimAccurate™ primary-side control technology, minimizing the external component count by removing the need for both the traditional opto-isolator and external compensation components, reducing solution size and cost. The device operates in quasi-resonant mode in order to optimize efficiency at heavy loads and uses pulse-by-pulse waveform analysis to offer loop response characteristics superior to traditional offline solutions. The iW3620 is fully protected and incorporates Renesas' EZ-EMI® technology to facilitate EMI management in the end application, giving the end-user an easy-to-design and robust solution for solid-state lighting.

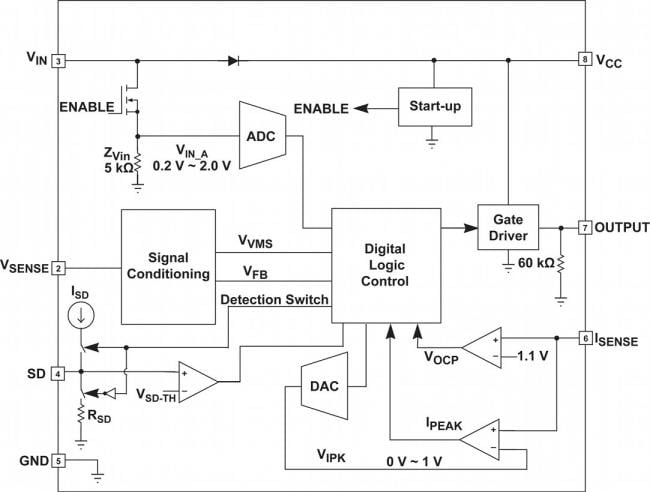

iW3620 Functional Block Diagram
iW3620 Typical Applications Diagram
iW3620 Functional Block Diagram
iW3620 Typical Applications Diagram
  • PrimAccurate™ - Isolated Offline AC/DC Controller
  • EZ-EMI Design to Easily Meet Global EMI Specifications
  • Ideal for Offline LED Applications up to 40W
  • Universal Input Power Supply Range - 85VAC to 264VAC
  • Up to 130kHz Switching Frequency, Enables Small Adapters
  • Quasi-resonant Mode for Optimal Efficiency
  • Low 10µA Start-Up Current
  • Programmable Over-temperature Protection - External NTC Thermistor
  • Built-in Output Overvoltage Protection
  • Sense Resistor Short Circuit Protection
  • Open Circuit Protection

アプリケーション

  • Solid-State Lighting
  • 40W LED Luminaires

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
iW3620 Datasheet
PDF 1.37 MB
ホワイトペーパー
Challenges on Solid-State Lighting Offline Driver Design
PDF 1.94 MB
ホワイトペーパー
Optimizing Operating Life for LED-based Light Bulbs
PDF 807 KB
ホワイトペーパー
What is Digital Power White Paper
PDF 597 KB
4件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    IW3620-00
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 SOIC-8-EP Tape & Reel 3 サンプルを入手,
