Plug 'n' play mikroBUS-compatible FT Click helps IIoT developers harness the ultimate wired communication tech.

Looking for the most reliable and easiest-to-scale communications media for your next industrial IoT project? Use FT Click to instantly prototype your connected devices through open protocols. Based on the powerful Renesas FT 6050 smart transceiver, FT Click provides three ways to communicate: BACnet, LON and MQTT. These protocols run on top of the uniquely robust FT twisted pair media.

Need some ideas to get started? We've built sample applications using hugely popular Node-RED and freely available open APIs to eliminate any learning curve. Our communication software stacks are open source and available for a wide variety of development environments.

Order Now

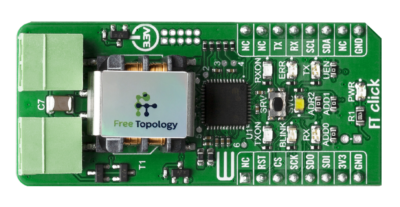

FT Click
FT Click
  • Processor: FT 6050 Smart Transceiver
  • Flash Memory: AT25SF081B
  • Communication Software
    • FTMQ protocol stack (MQTT-like protocol for FT)
    • BACnet FT protocol stack
    • LON protocol stack
  • Adds an FT interface to any development board with a mikroBUS slot or adapter
  • Plug 'n' play product is ideal for prototyping industrial IoT products
  • Works with development platforms including Arduino, Free RTOS, Raspberry Pi and STMCube
  • Includes on-board processing power and communications transformer
  • Supports polarity-insensitive free topology star, daisy chain, bus, loop, or mixed topology wiring
  • Very high common-mode noise immunity
  • Sample applications from building management to industrial automation are available from GitHub using the link under the Related links section below

アプリケーション

  • HVAC controls
  • Room lighting and sunblind controls
  • Emergency lighting controls
  • Elevator and escalator controls
  • Access controls
  • Security systems
  • Fab equipment monitoring
  • Sound masking and emergency paging
  • Quick service restaurant automation
  • Retail store automation
  • Renewable energy management
  • Energy metering
  • Environmental monitoring
  • Gas detection
  • Backup power generation control
  • Transportation automation
  • Train systems monitoring
  • Agricultural equipment automation
  • Dairy farm automation
  • Stage and sound systems
  • Cold storage

ドキュメント
分類 タイトル 日時
カタログ
FT Click Sellsheet
PDF 3.60 MB
その他資料
FT Click Next Steps for Product Development
PDF 1.33 MB
2件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－その他
FT Click Application Examples
ソフトウェア／ツール－その他
FTMQ API Reference
2件
FT 6050 EVK

FT6050EVK

Evaluation
詳しくはこちら

FT 6050 Smart Transceiver and Neuron 6050 Processor Development Platform for Creating LON, LON/IP, BACnet/IP Devices

The FT 6050 EVK is a complete hardware and software platform for creating or evaluating LON, LON/IP, BACnet/IP or BACnet MS/TP devices based on the Series 6000 Smart...

主要ドキュメント:
FT 6050 EVK Datasheet

ビデオ&トレーニング

FT Click Board Demo
Video List
FT Click Board Demo
FT 6050 Free Topology
