The F1441EVK is a fully populated evaluation board that allows the customer to evaluate the F1441 Variable Gain Amplifier with an integrated digital step attenuator. The F1441 is controlled with serial communication input using a USB digital interface board that connects to the PC.
The F1441EVK consists of the following:
- F1441 Evaluation Board
- USB Digital Interface Board
- USB Cable (USB-A to USB-B micro)

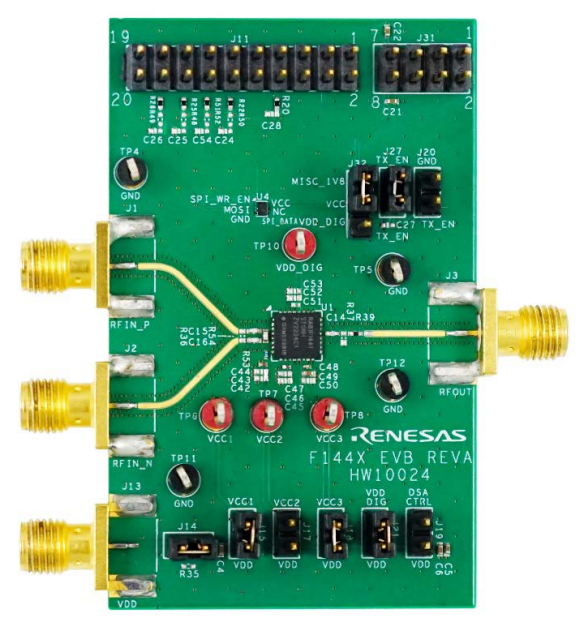

The F1441 Evaluation Board consists of the following:
- SMA connectors for RF IOs and power supply connection
- Header pins for power supply and digital interface connection
- Jumper configurable power supply connection
- Clip-on test point access for voltage sense
