概要

The ZMID5201MROT is an inductive rotary position sensor module including sensor PCB, target and target holder.

NOTE: This module is pre-programmed and characterized. For changing programming options, such as motion range or diagnostic settings, the ZMID communication board (ZMID-COMBOARD) is required.

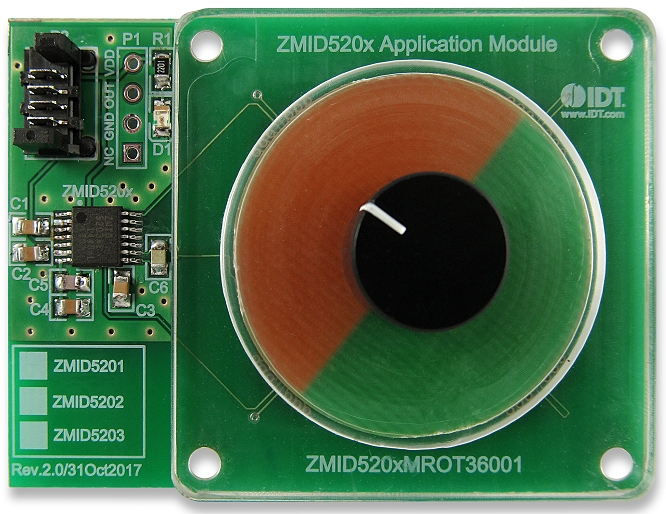

ZMID520x - Rotary Evaluation Board (front)
ZMID520x Inductive Rotary Position Sensing Modules - Kit Box
ZMID520x Position Sensing Modules COMBOARD - Kit Box
ZMID520x - Rotary Evaluation Board (front)
ZMID520x Inductive Rotary Position Sensing Modules - Kit Box
ZMID520x Position Sensing Modules COMBOARD - Kit Box
  • Contactless
  • High-resolution angle position measurement
  • Analog voltage output
  • Strayfield-immune
