概要
説明

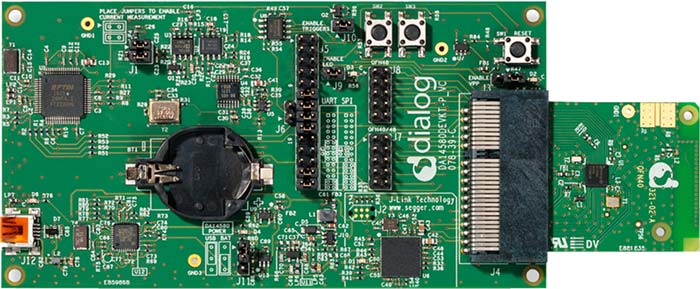

The SmartBond™ DA14585 Bluetooth Low Energy Pro Development Kit provides all of the flexibility needed to develop products with confidence, enabling the creation of more advanced connected applications with the smallest footprints and power budgets. At the core of this development kit is our SmartBond™ DA14585. It is the smallest, lowest power, and most integrated Bluetooth® system-on-chip (SoC) solution currently available. This versatile SoC brings Bluetooth 5.0 functionality to our well-known DA1458x family. The DA14585 hardware development environment is available as a starter kit, containing a motherboard and daughterboard. Additional separate daughterboard kits can be ordered.
The motherboard gives access to all of the package’s general-purpose input-outputs (GPIOs), and the on-board SEGGER chip provides the complete debugging capability, while dedicated on-board circuitry allows you, in combination with our complete software environment SmartSnippets™, to profile and fine-tune the power consumption of your application to get the most out of the DA14585’s advantages.
特長
- Full digital connectivity with external hardware using UART, SPI, GPIO, and I2C.
- USB-based debugging capabilities using the SEGGER J-Link on-board debugger.
- USB-based UART communication with the host PC using a Future Technology Devices International (FTDI) chipset, which converts UART to USB.
アプリケーション
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| マニュアル－開発ツール | ||
| マニュアル－開発ツール | ||
| マニュアル－開発ツール | ||
| リリースノート | SW-B-002 DA14531/DA14585/DA14586 SDK Release Notes v.6.0.16.1144
|
|
| リリースノート | PDF 160 KB | |
| リリースノート | SW-B-002 DA14531/DA14585/DA14586 SDK Release Notes v.6.0.14.1115
|
|
| アプリケーションノート |
PDF
241 KB
AI生成コンテンツ:
The document provides troubleshooting guidance for managing the SEGGER J-Link interface on DA1458x/68x development kits. It addresses issues such as the unavailability of the Virtual COM (VCOM) port after firmware updates, detailing steps to reinstall the J-Link software and re-enable the VCOM port. It also covers hardware flow control settings and booting problems that may arise post-update. The guide targets specific devices including DA1458x Basic DKs, DA1468x/DA1510x Basic DKs, CIB, and DA14580 USB dongle, ensuring proper operation of the Bluetooth low energy SoC processor through the J-Link interface.
|
|
| 回路図 | ZIP 3.32 MB | |
| 回路図 | ZIP 886 KB | |
| 回路図 | PDF 79 KB | |
| 回路図 | ZIP 1.07 MB | |
| 回路図 | PDF 81 KB | |
| 回路図 | PDF 214 KB | |
| 製品概要 | PDF 2.01 MB English , 简体中文 | |
14件
|
||
設計・開発
関連ボード＆キット
ボード＆キット
SmartBond™ DA14585 Bluetooth Low Energy Pro Development Kit Daughterboard for the WLCSP-34 Package
The DA14585 Development Kit Pro provides all of the flexibility needed to develop products with confidence, enabling the creation of more advanced connected applications with the smallest footprints and power budgets. At the core of this development kit is our SmartBond™ DA14585. It is the... 続きを読む
SmartBond™ DA14586 Bluetooth Low Energy Pro Development Kit Daughtercard for the QFN40 Package
The DA14586 Development Kit-Pro provides all of the flexibility needed to develop products with confidence, enabling the creation of more advanced connected applications with the smallest footprints and power budgets. This development kit features our SmartBond™ DA14586. DA14586 combines the... 続きを読む
DA14585 Bluetooth Low Energy 5.0 Pro QFN40 Daughterboard
The DA14585-00ATDB-P is a DA14585 Bluetooth® Low Energy QFN40 daughterboard for the DA14585DEVKT-P Pro motherboard.
The DA14585 Development Kit Pro gives the flexibility to develop products for creating more advanced connected applications with the smallest footprints and power budgets. The... 続きを読む
製品選択
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable | Pb (Lead) Free |
|---|---|---|---|---|---|
| DA14585-00ATDEVKT-P | Active | In Stock | 1u | $98 | N/A | Yes |
