RX72N

Renesas MCU Guide

Download the mobile app

Overview

The RX72N Group microcontrollers are equipped with the third-generation RX CPU core, the RXv3 core, and these high-performance products operate at 240MHz. Real-time control and networking of equipment are realized with a single chip with 4MB flash memory capable of read operations at 120MHz, 1MB of SRAM and 182 general-purpose I/O ports. The device also supports high-end HMI functionality for advanced display capability. The device also has complete security capability, vital for industrial and consumer equipment today. The RX72N can also contribute to the miniaturization of the housing and the shortening of the development cycle.

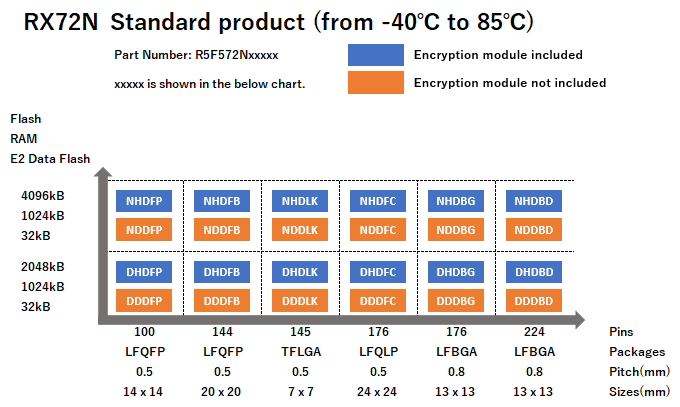

Pin-Memory Diagram of RX72N standard products

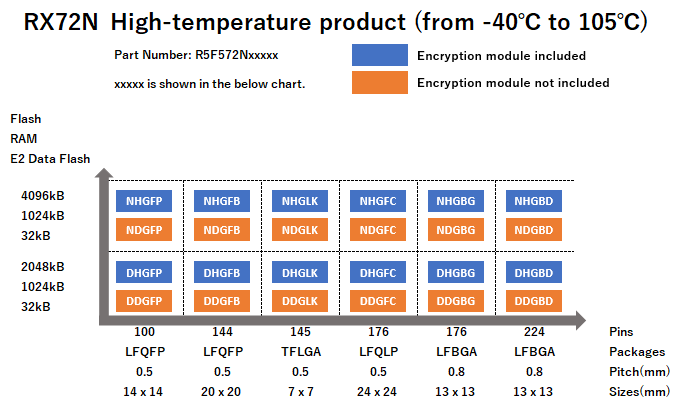

Pin-Memory Diagram of RX72N High-temperature products

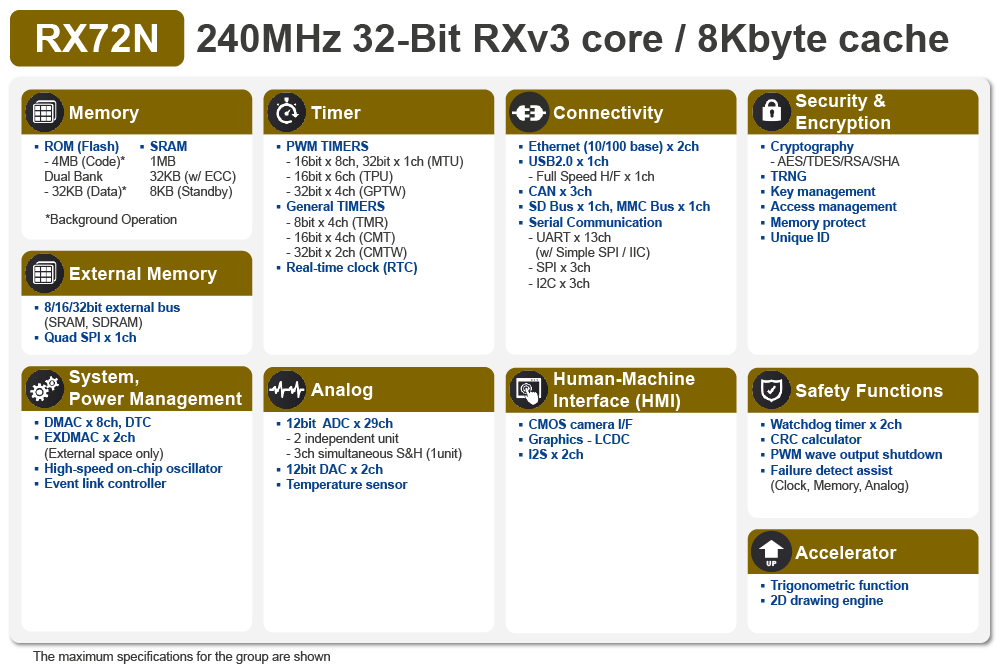

240MHz RXv3 core, double-precision FPU, and register bank save function that speeds up interrupt response
4MB flash memory (120MHz read access, dual bank), 1MB SRAM
182 general I/O ports
2-channel Ethernet, SD Host interface, USB 2.0 Full Speed, 3-channel CAN, QSPI
Trigonometric calculators (sin, cos, arctan, hypot) to speed up motor vector control
TFT LCD controller, 2D drawing engine, serial sound interface, CMOS camera interface
Encryption engines (AES, 3DES, RSA, ECC, SHA, TRNG), key management, flash memory protection
Single power supply with operation from 2.7V to 3.6V
Operating ambient temperature: -40 to 85°C or -40 to 105°C
