Overview

The RX72T group of microcontrollers is designed for motor control applications. The max. 200MHz RXv3 CPU core enables up to four inverters to be controlled simultaneously, with advanced security and safety functions for inverter control applications.

RX72T Block Diagram

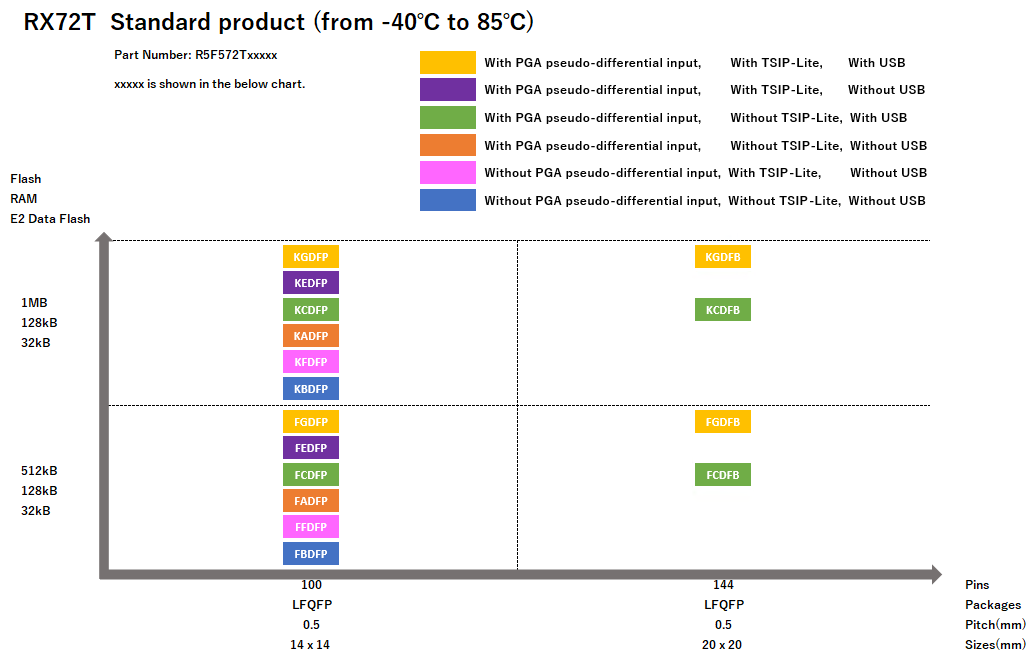

Pin-Memory Diagram of RX72T standard products

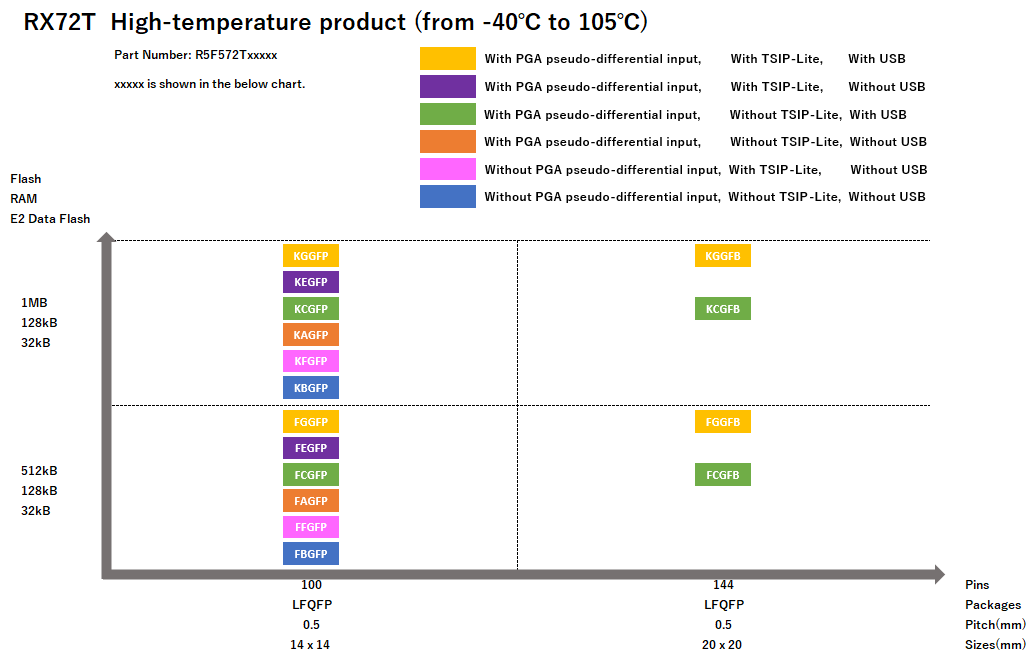

Pin-Memory Diagram of RX72T High-temperature products
RX72T Block Diagram
Pin-Memory Diagram of RX72T standard products
Pin-Memory Diagram of RX72T High-temperature products
  • RXv3 Core 200MHz operation (5.8 CoreMark/MHz), single-precision FPU
  • 2.7V to 5.5V operation
  • Operating temperature -40 °C to 105 °C
  • Program Flash up to 1MB, SRAM up to 128KB
  • Dedicated accelerator
    • RXv3 register bank save function
    • Arithmetic unit for trigonometric functions
  • Enhanced Analog
    • 12-bit A/D converter x 30 channels for 3 units, 12-bit D/A converter x 2 channels
    • 6-channels of comparators and 6-channels of pseudo-differential PGA
  • 200MHz PWM
    • 4 channels for 3-phase complementary switching, 2 channels for 5-phase complementary switching, 10 channels for single-phase complementary switching
    • 4-channel high-resolution PWM enables a minimum 195ps timing adjustment
  • Trusted Secure IP Lite (AES/TRNG)

Applications

  • Industrial
  • Office automation
  • Home appliances

Documentation

Design & Development

Software & Tools
RI600PX Real-time OS for RX Family
μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
ITRON OS Renesas
RI600V4 Real-time OS for RX Family
μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
ITRON OS Renesas
Trusted Secure IP Driver
Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
 Security / Crypto Renesas
RX Driver Package
Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
Software Package Renesas
C/C++ Compiler Package for RX Family [CC-RX]
C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
Downloads
RX Family C/C++ Compiler Package (CC-RX) Programming Techniques Rev.1.00RX Compiler Application Notes: 2-Compiler Use Guide: #pragma Extension Guide Rev.1.00Functional Safety Solution for Industrial Automation
 Compiler/Assembler Renesas
RX Family Renesas FreeRTOS
FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
Downloads
RX Family Renesas FreeRTOS Rev.1.04RX Family Renesas FreeRTOS - Sample Code (r01an4307xx0104)
 FreeRTOS Renesas
SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver
Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
Downloads
RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04 - Sample CodeRX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04
 Serial Memory Renesas
SPI Serial EEPROM Driver
Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
 Serial Memory Renesas
USB Drivers
Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
 USB Renesas
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Downloads
[Flyer] E2Emulator[RTE0T00020KCE00000R]
 Emulator Renesas
E20 emulator [R0E000200KCT00]
On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
 Emulator Renesas
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator Renesas
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) Renesas
Renesas Flash Programmer (Programming GUI)
Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
 Programmer (Unit/SW) Renesas
CS+
Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] (Note: CS+ is not generally promoted to U.S. and European customers.) (Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
 IDE and Coding Tool Renesas
DSP Library for RX Family
Software library that implements numeric operation function used in DSP with general purpose MCU
Downloads
RX Family RX DSP Library Version 5.0 Rev.1.00 - Sample CodeRX Family RX DSP Library Version 5.0 Rev.1.00
 DSP / FFT Renesas
Sensor Software Modules for Renesas MCU Platforms
Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
Downloads
HS300x Sample application - Sample CodeRX Family HS300X Sensor Control Module Firmware Integration Technology Rev.1.23RX Family HS300X Sensor Control Module Firmware Integration Technology Rev.1.23RX Family Sensor I2C Communication Middleware Control Module Firmware Integration Technology Rev.1.22 - Sample CodeRX Family Renesas Sensor Control Modules Firmware Integration Technology Rev.2.00
RX Family OB1203 Sensor Firmware Integration Technology Rev.1.01RX Family OB1203 Sensor Firmware Integration Technology Rev.1.01 - Sample CodeRX Family Renesas RRH46410 Sensor Control Module Firmware Integration Technology Rev.1.00RX Family Renesas RRH46410 Sensor Control Module Firmware Integration Technology Rev.1.00
 Sensor Renesas
RX Smart Configurator
RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
Downloads
RX Family Amazon FreeRTOS download with e² studio Rev.1.00RX Family Renesas FreeRTOS Rev.1.04RX Family Renesas FreeRTOS - Sample Code (r01an4307xx0104)
 Solution Toolkit Renesas
Security Key Management Tool
Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
Solution Toolkit Renesas
QE for Display: Development Assistance Tool for Display Applications
This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
Solution Toolkit Renesas
e² studio - Information for the RX Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool Renesas
Renesas Motor Workbench
Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
Downloads
Servo control sample program RX Family Application Note - Sample CodeServo control sample program RX Family Application Note
 Solution Toolkit Renesas
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
 IDE and Coding Tool Renesas
Crypto Library
Robust encode library to ensure security for all types of system developments
 Security / Crypto Renesas
